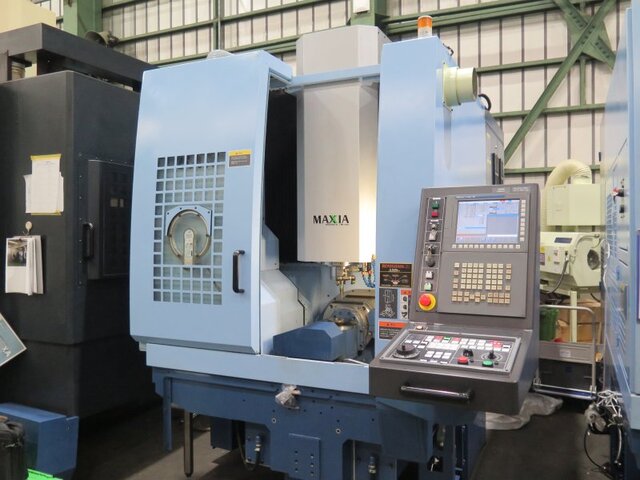

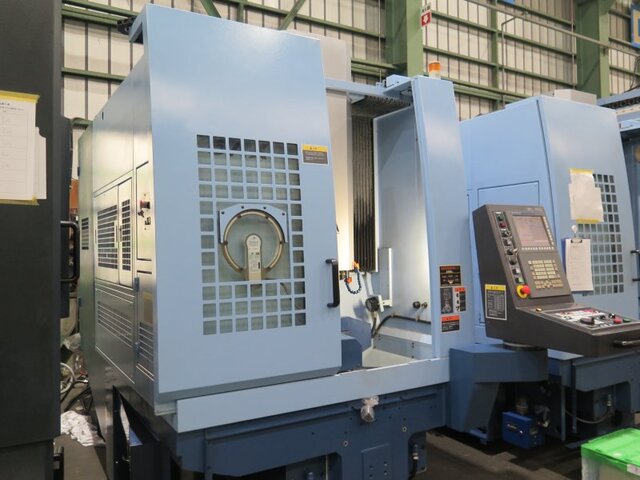

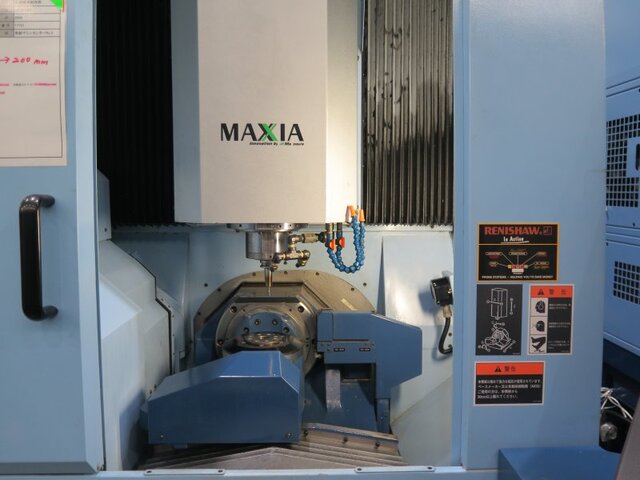

MATSUURA MACHINERY LX-0-5AX 5Axis Machining Center

5Axis Machining Center Machining Center - NC Publication Date: March 05, 2025 Print (Without Logo) Print (With Logo)

Company information will be disclosed upon member registration.

Stock ID	50242
Stock Code	26074

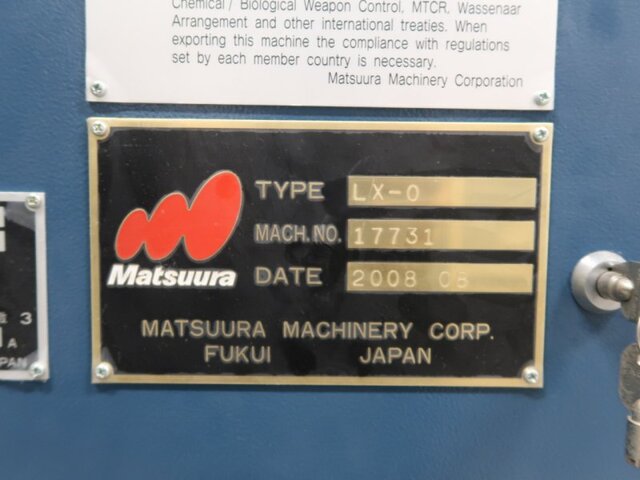

Manufacturer	MATSUURA MACHINERY inventory List
Model Type	LX-0-5AX
Year	2008

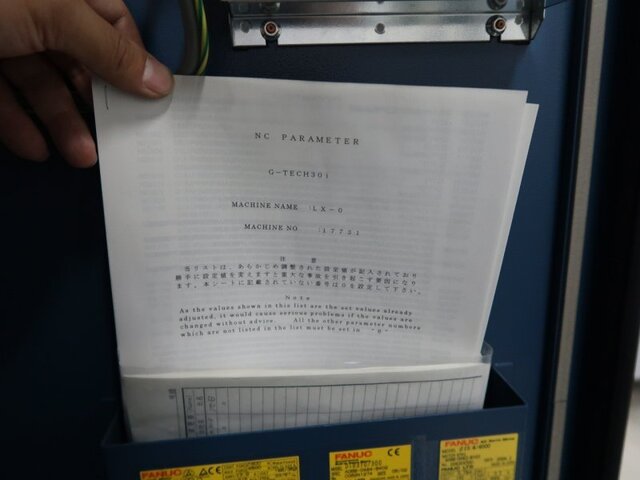

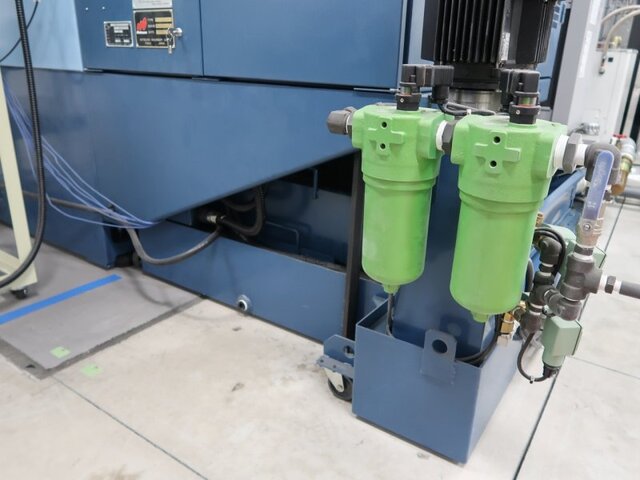

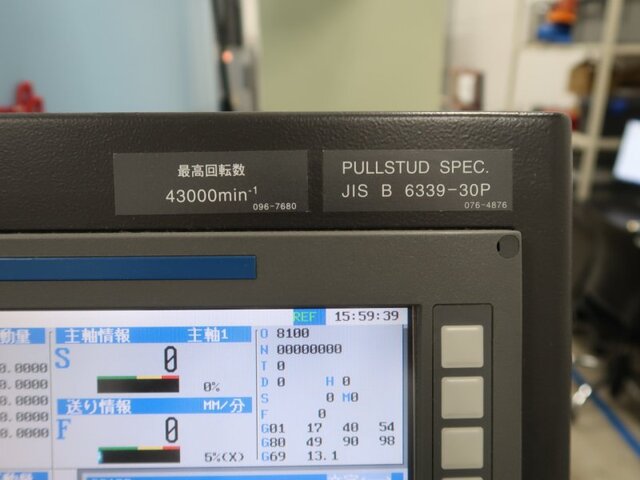

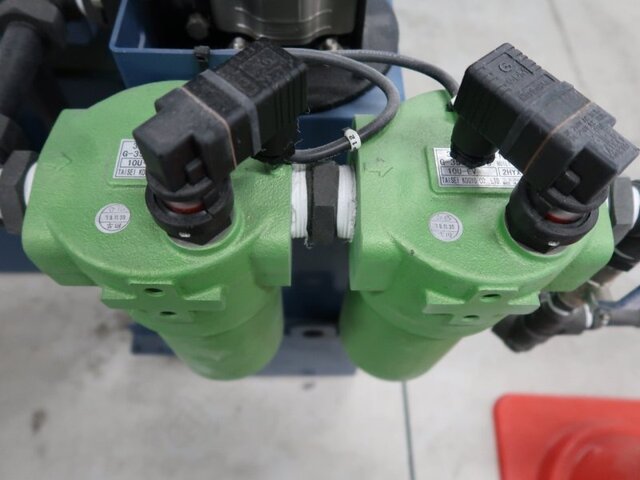

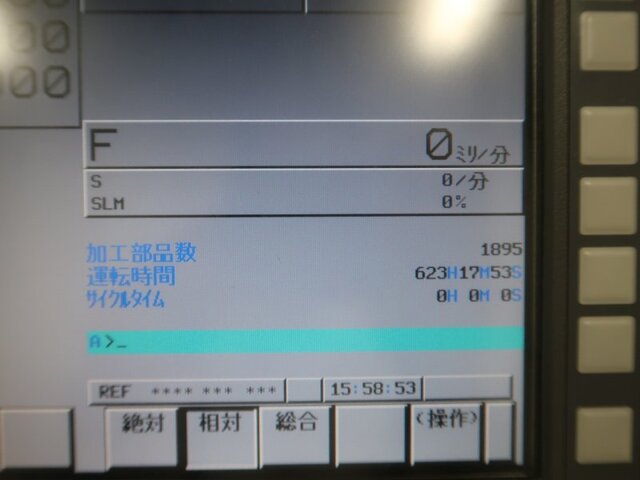

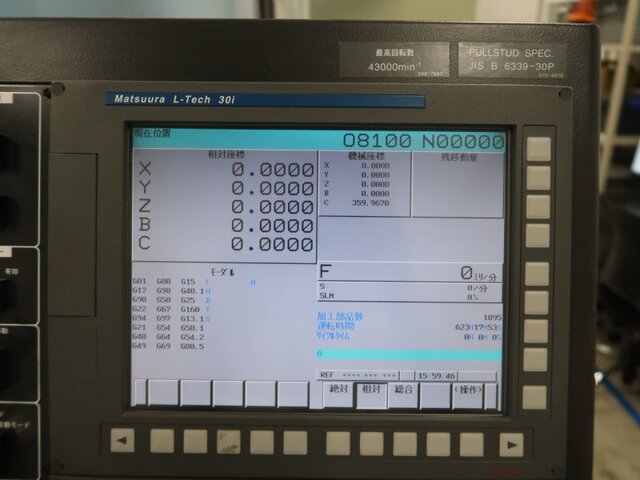

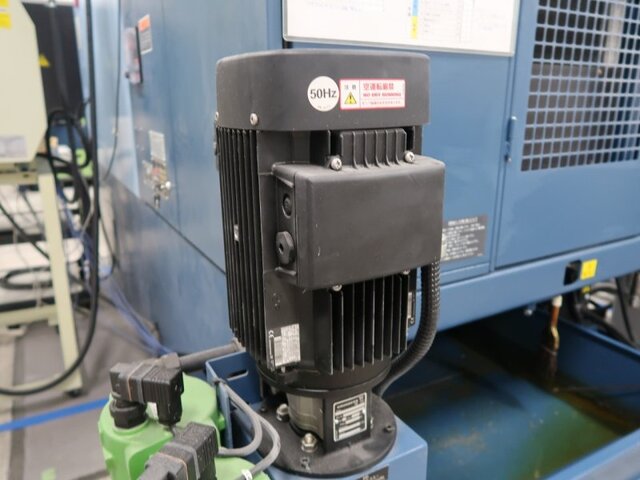

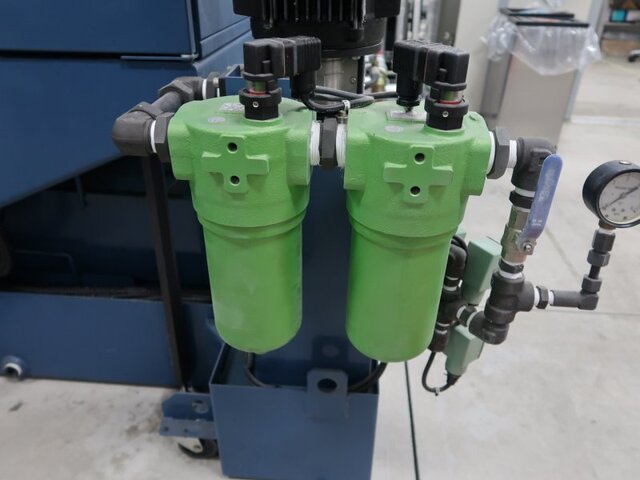

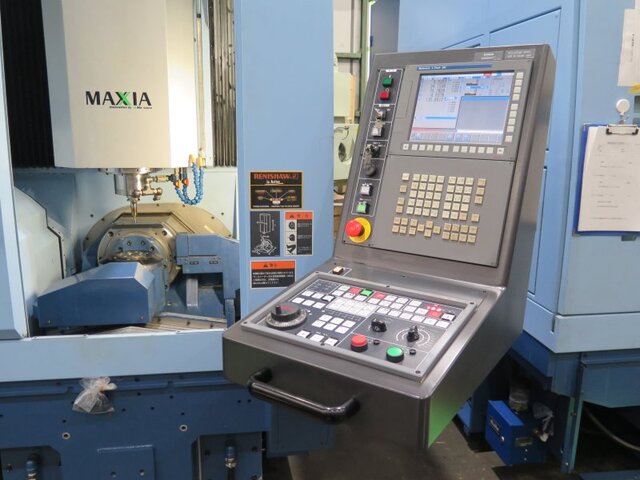

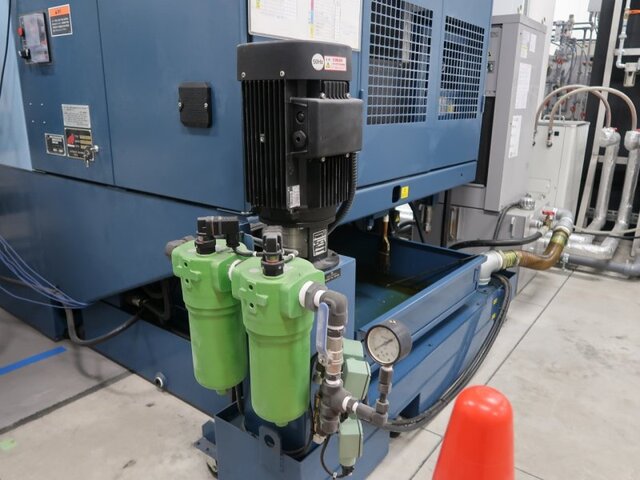

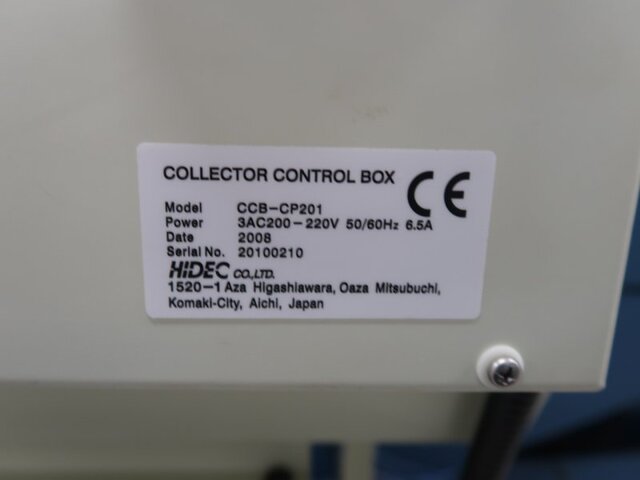

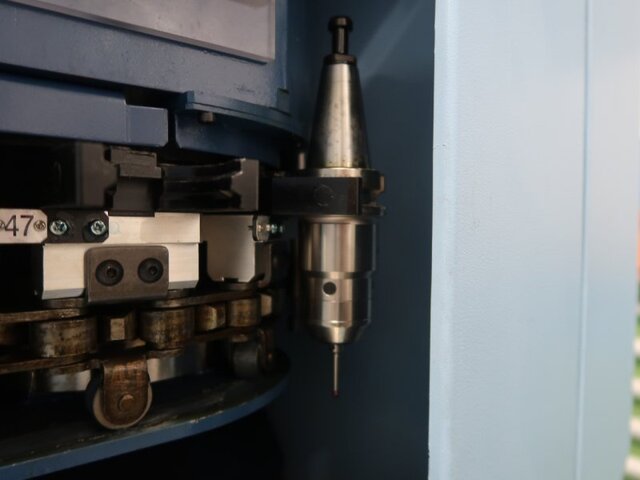

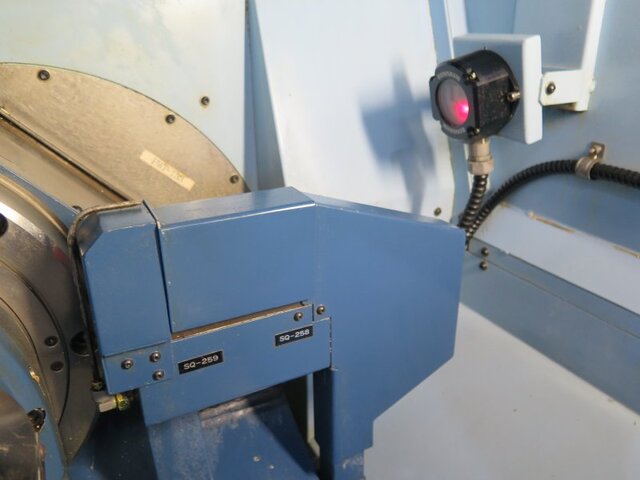

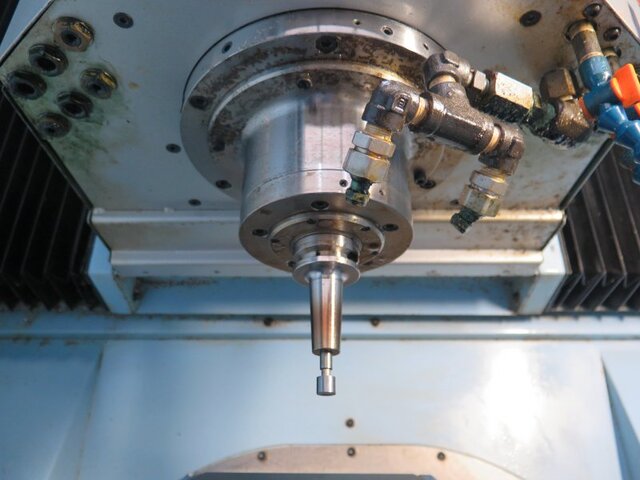

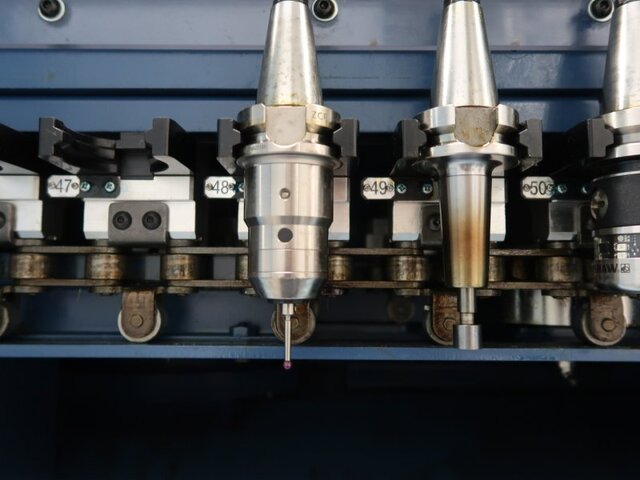

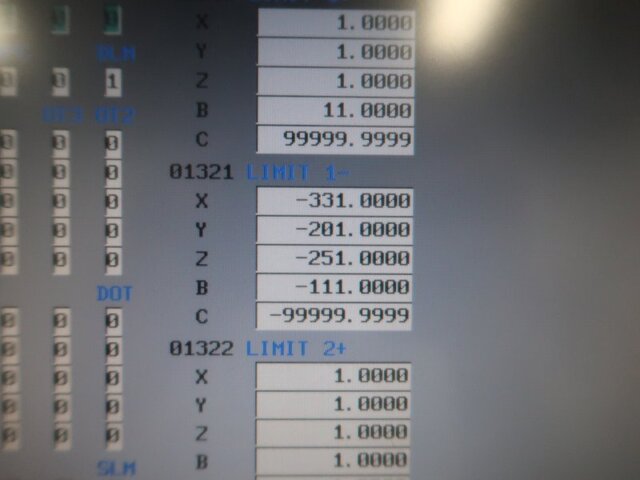

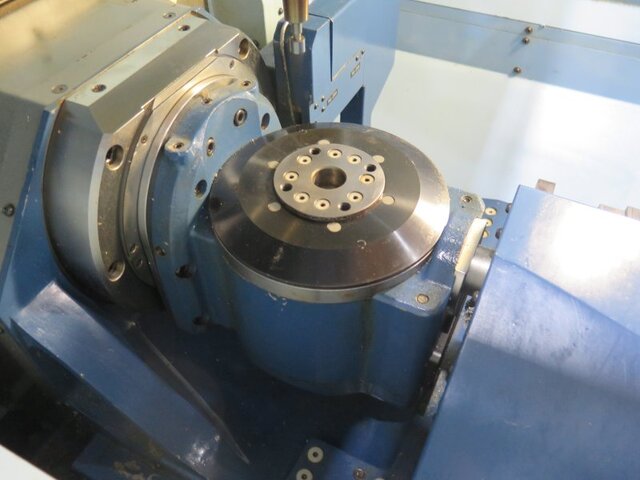

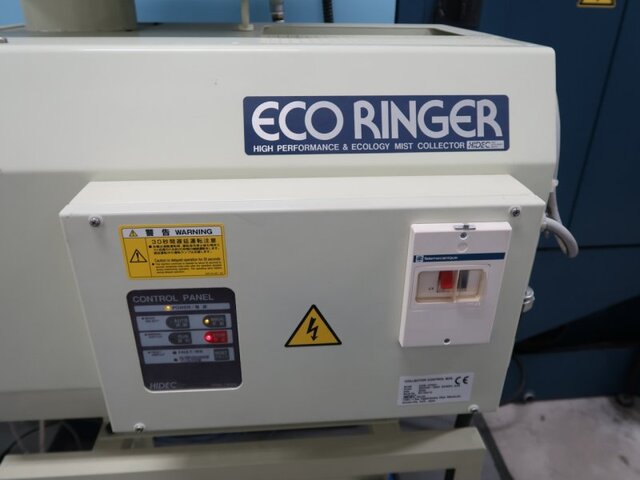

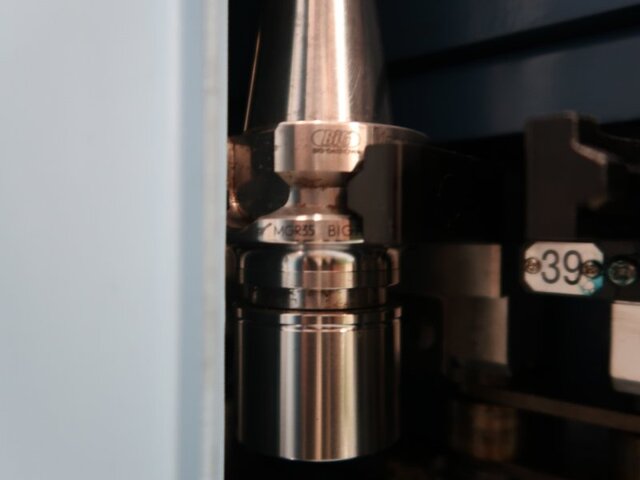

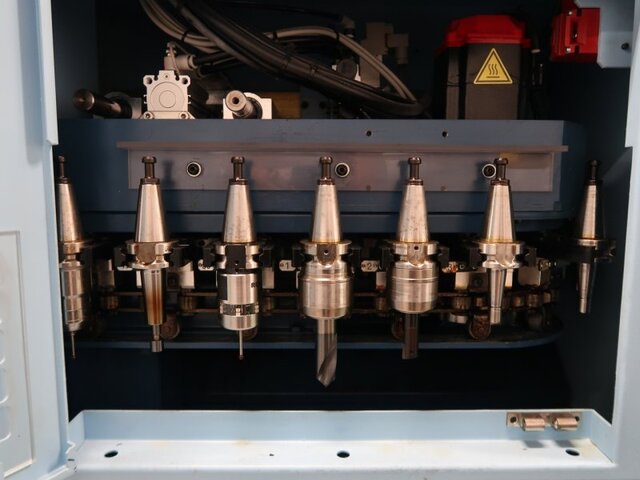

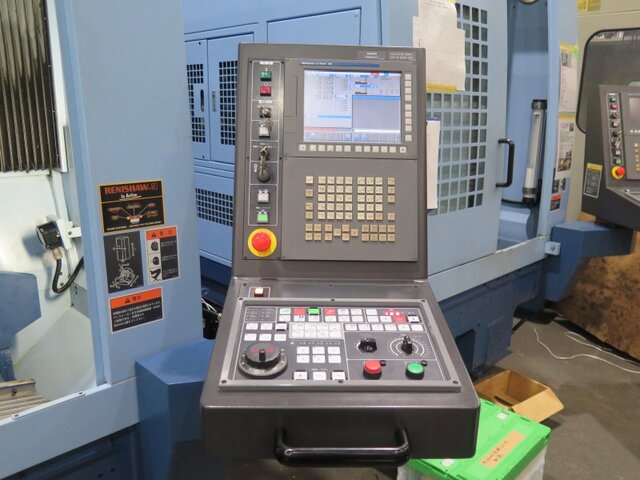

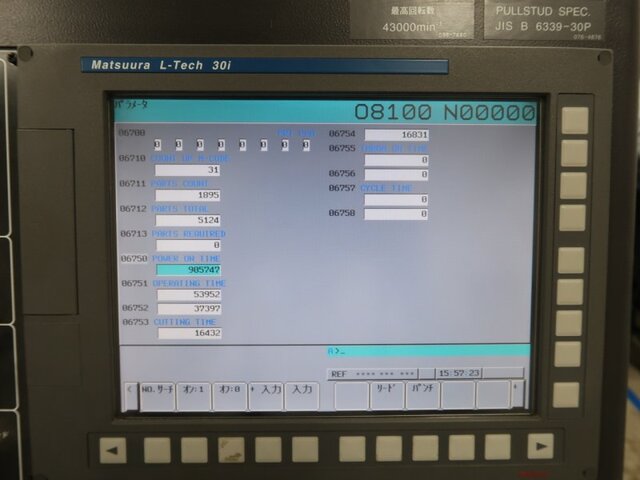

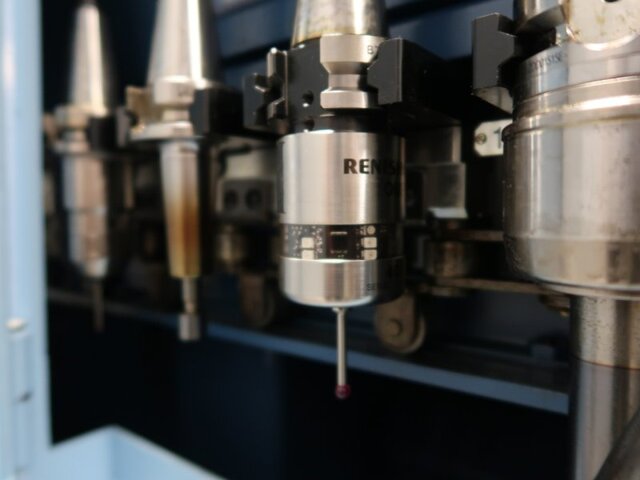

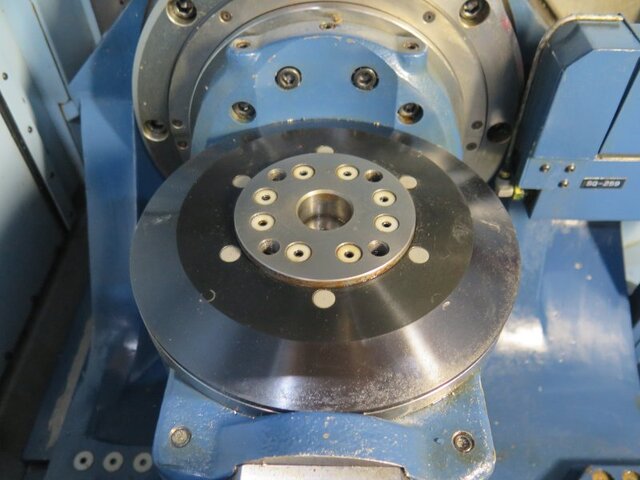

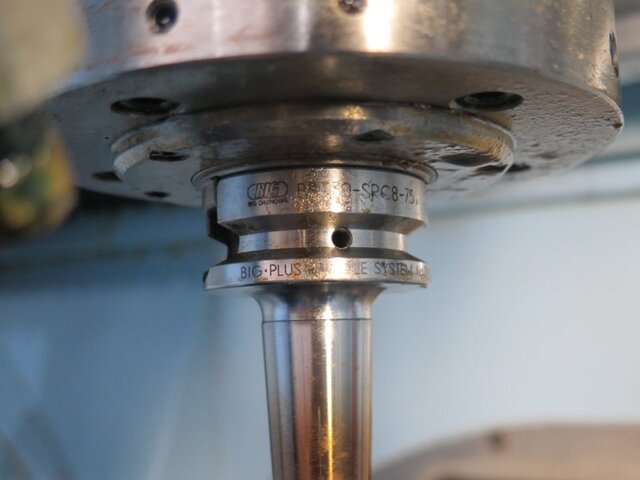

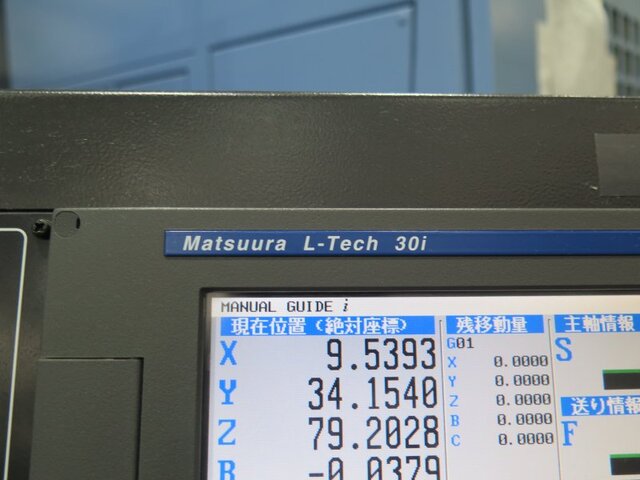

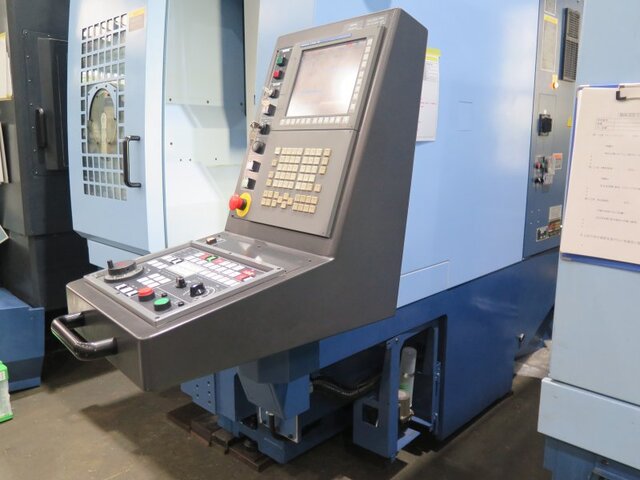

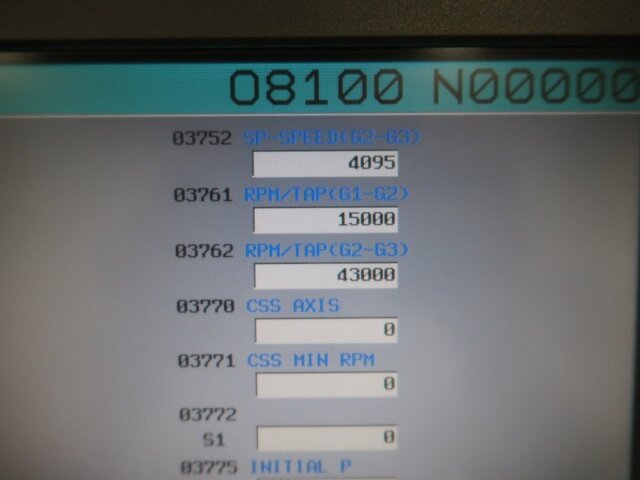

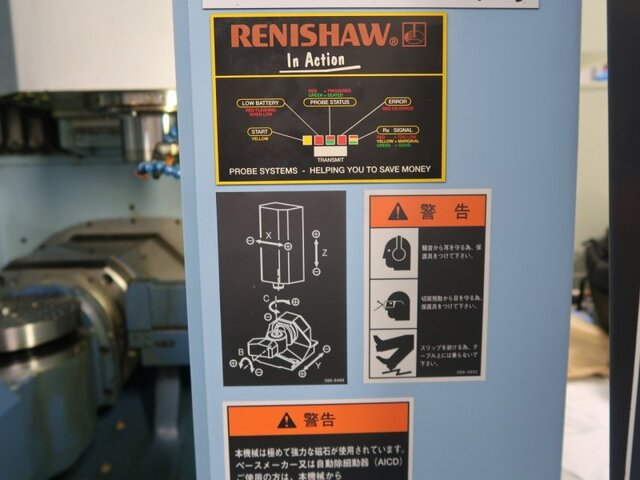

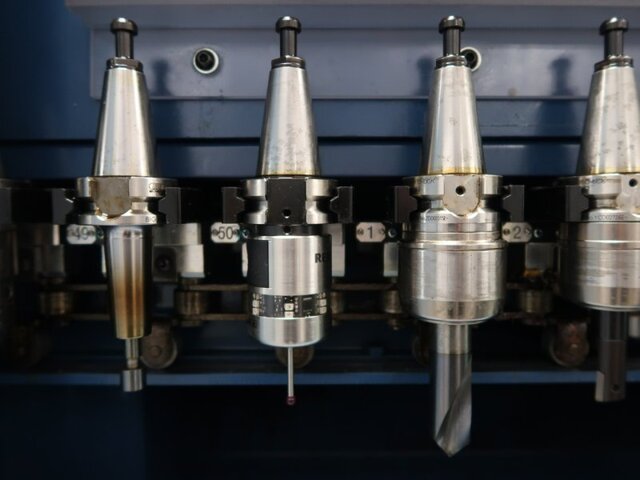

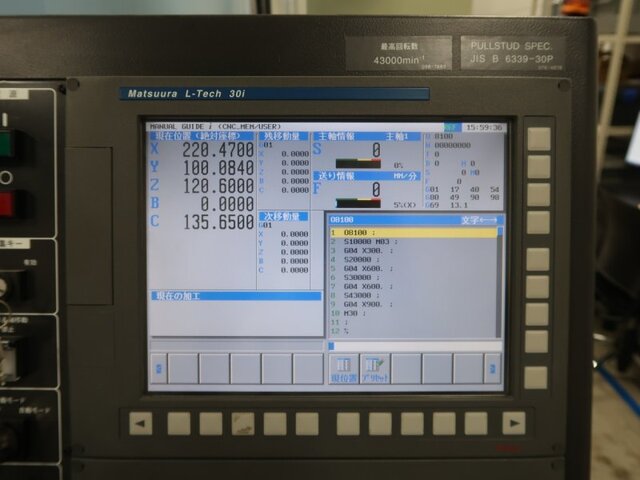

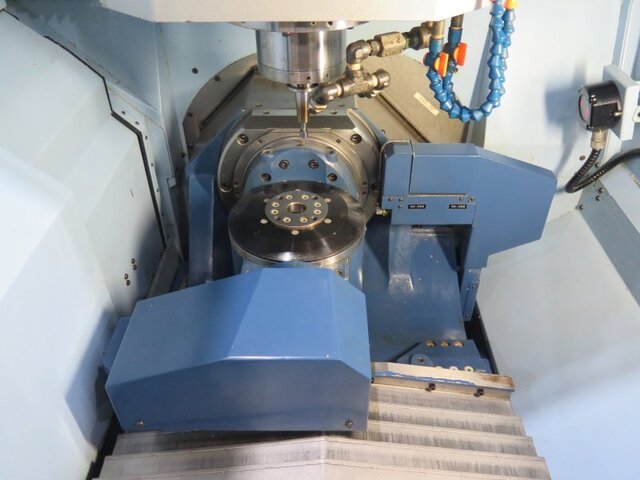

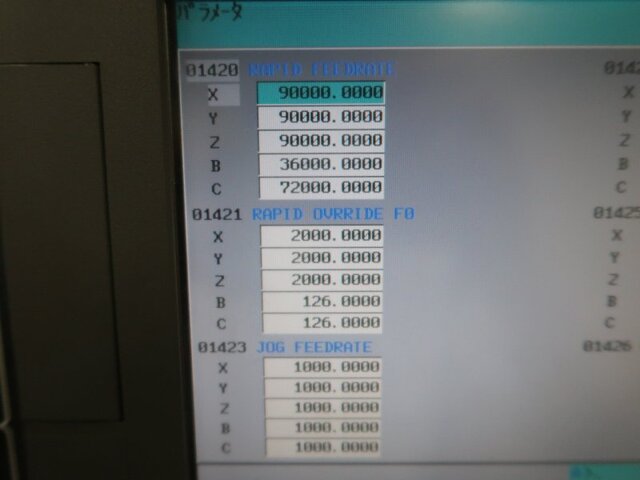

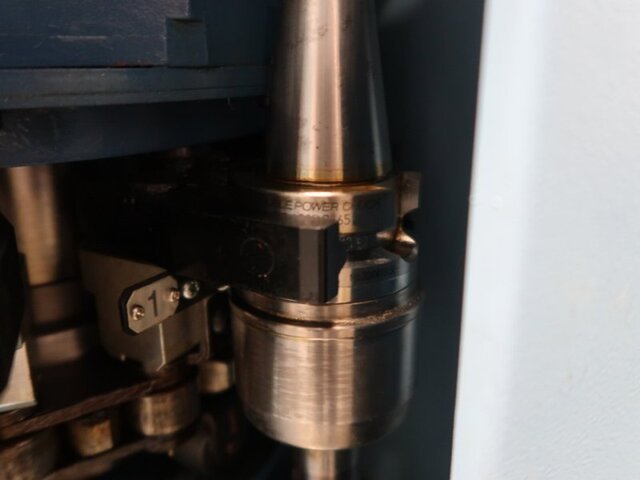

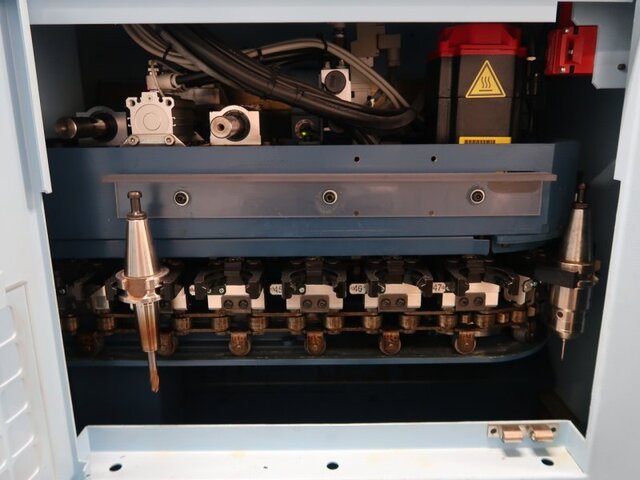

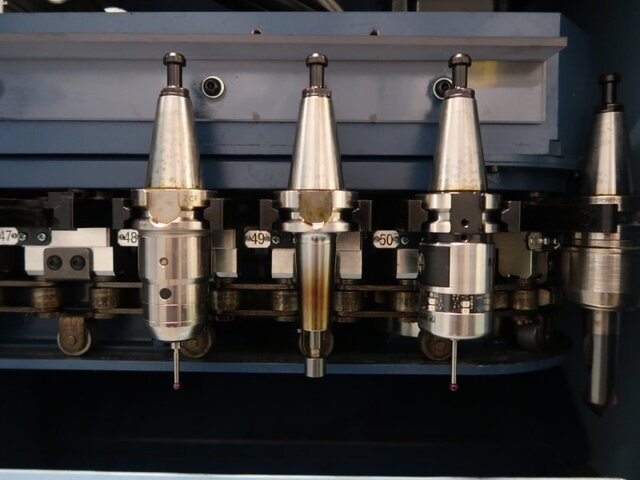

Main Specifications	○Features Ultra-high speed, high precision, 5-axis controlled vertical linear motor machine○NC unit Matsuura L-Tech 30i (FANUC)○Table Top surface shape φ100mm Maximum load 20kg○Travel distance X-axis: 330mm Y-axis: 200mm Z-axis: 250mm B-axis: -110 to +10deg C-axis: 360deg Spindle end surface to table top surface B-axis 0deg = 0 to 250mm Maximum workpiece dimensions φ150mm x H150mm○Feed rate Rapid traverse (X, Y, Z) 90,000mm/min (B, C) 100/200mm/min Cutting feed (X, Y, Z) 1 to 90,000mm/min○Spindle Spindle rotation speed 43,000rpm Holder shank BBT30 ATC storage capacity 50○Motor For spindle AC7.5/5.5kw(10HP)○Required power source Electric capacity 30KVA○Machine dimensions and weight Width 1810mm Depth 3119mm Height 2404mm Weight 5120kg○Other accessories ・Mist collector ・Bloom non-contact laser tool length measurement ・RENISHAW optical automatic measurement/automatic centering ・Semi-dry generator ・Cutting oil temperature controller ・Coolant through device
Location	Ibaraki
Viewing Status	Consultation
Test Run Status	Consultation
