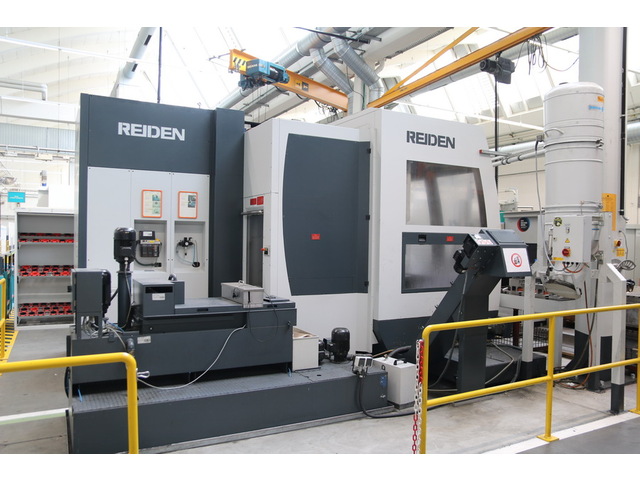

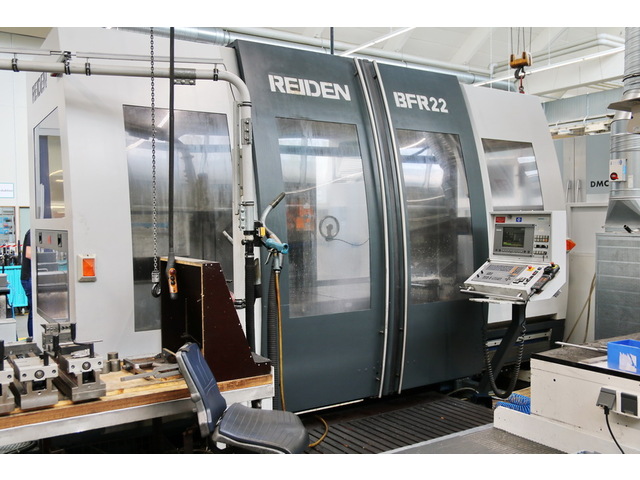

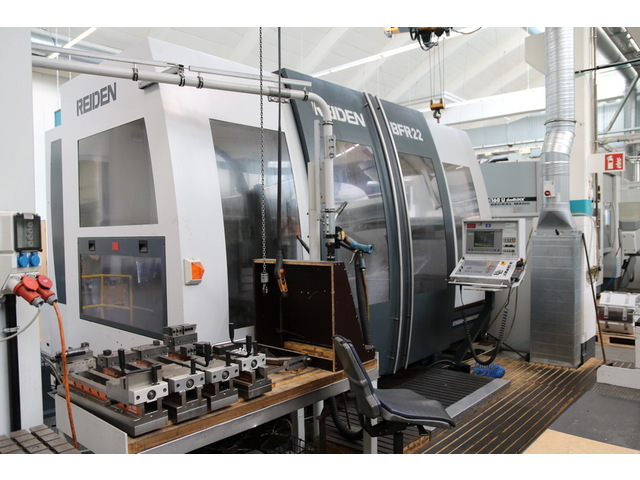

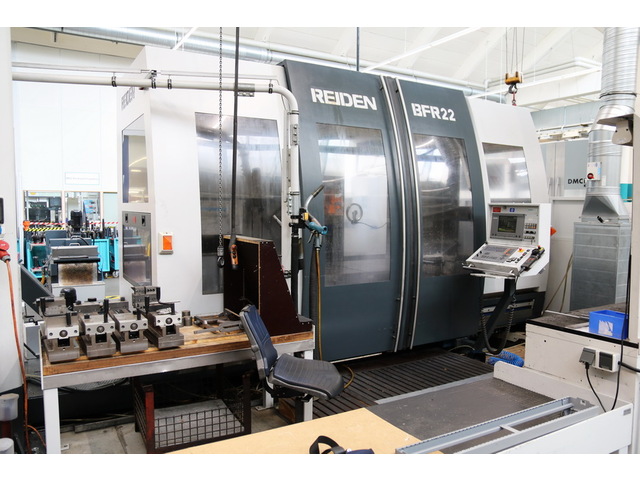

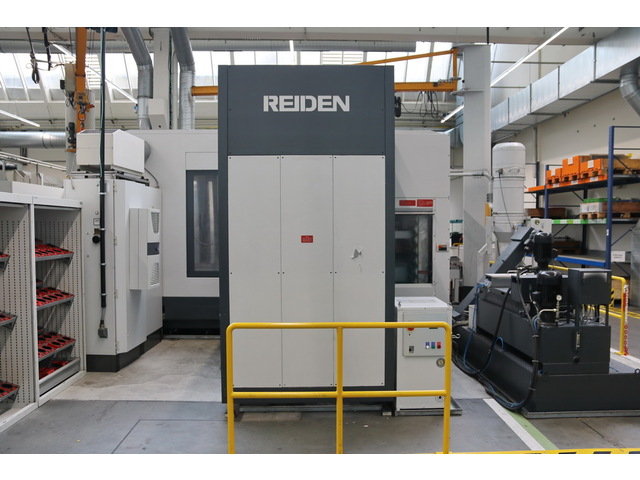

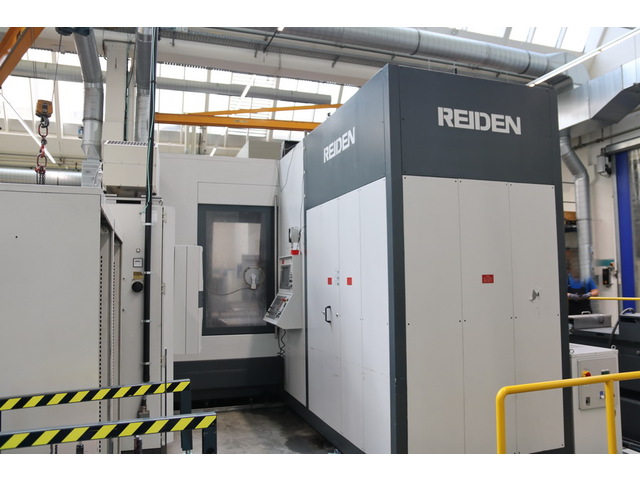

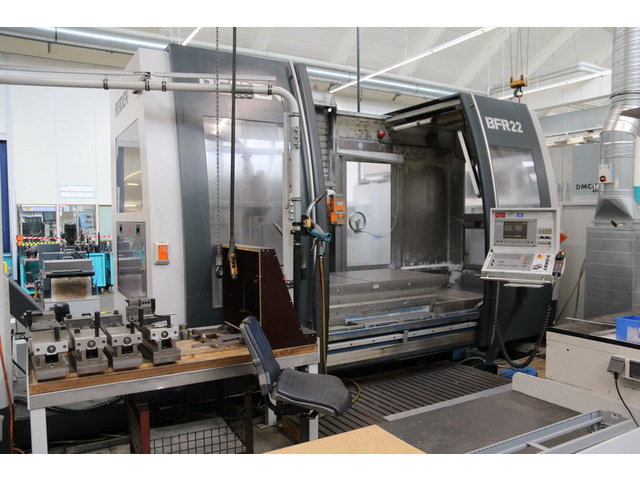

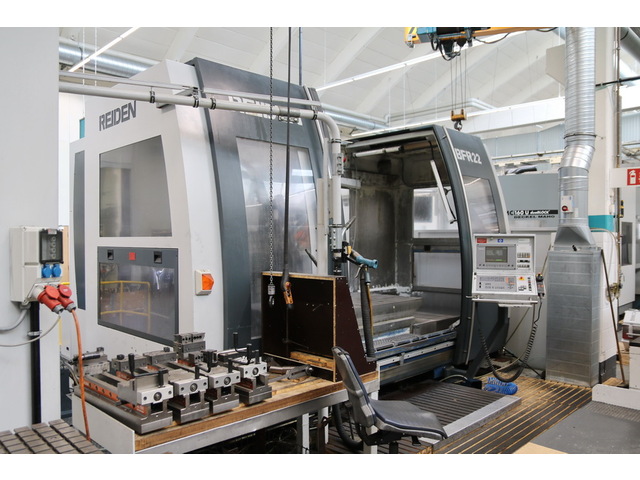

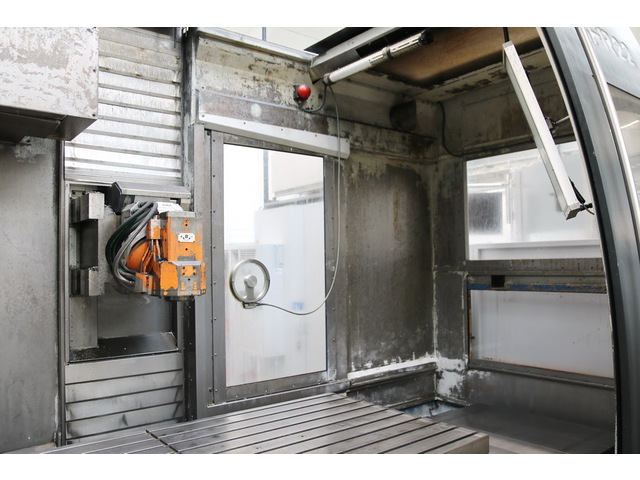

REIDEN BFR 22 5Axis Machining Center

5Axis Machining Center Machining Center - NC Publication Date: October 09, 2025 Print (Without Logo) Print (With Logo)

Company information will be disclosed upon member registration.

Stock ID	79538
Stock Code	1039-9086
Manufacturer	REIDEN
Model Type	BFR 22
Year	2003

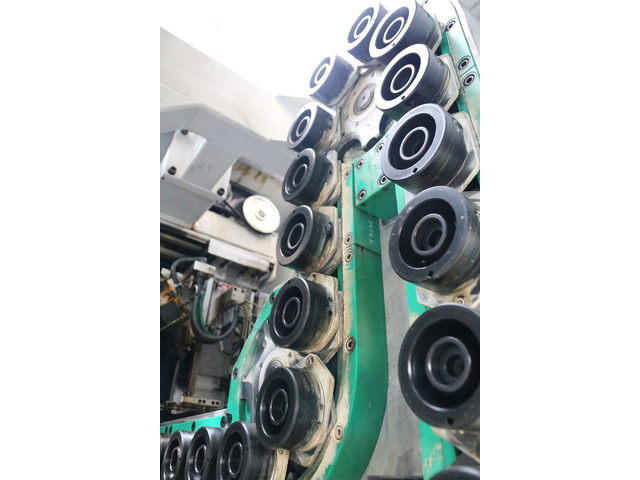

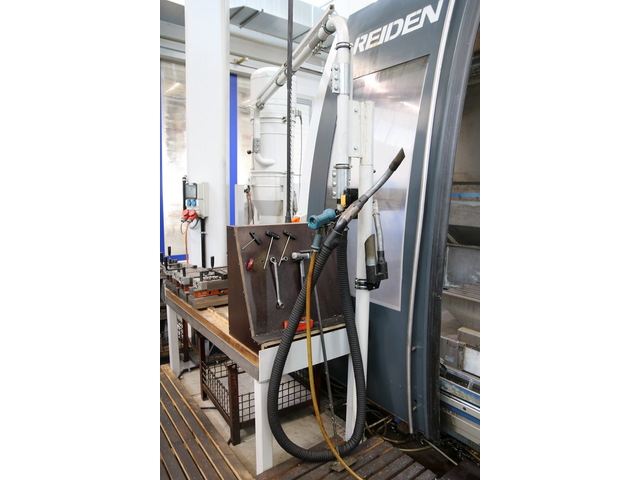

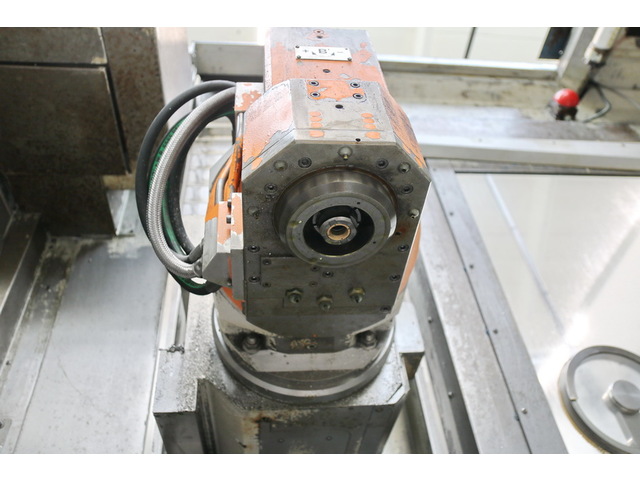

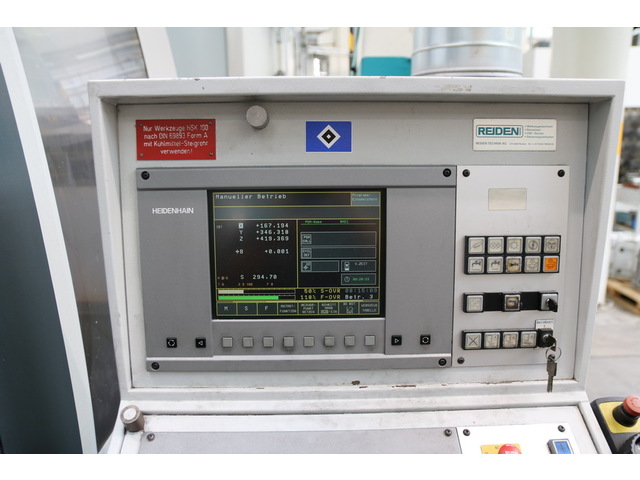

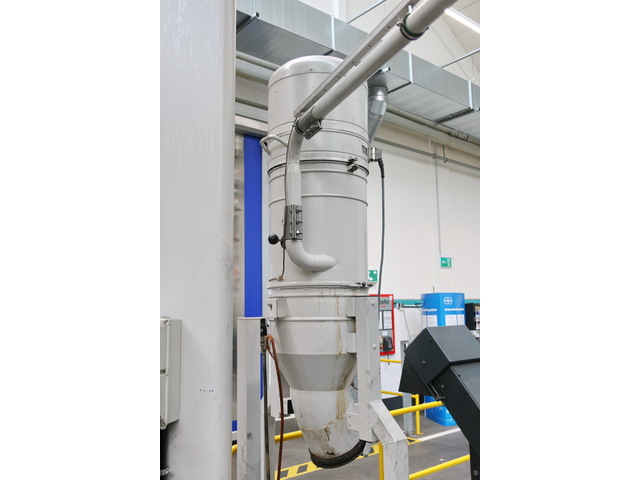

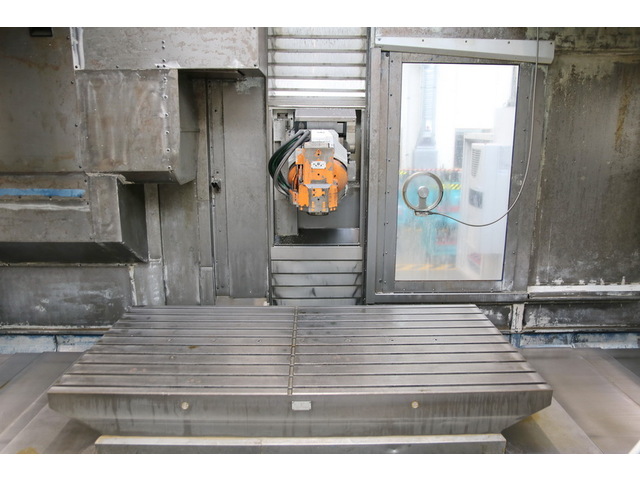

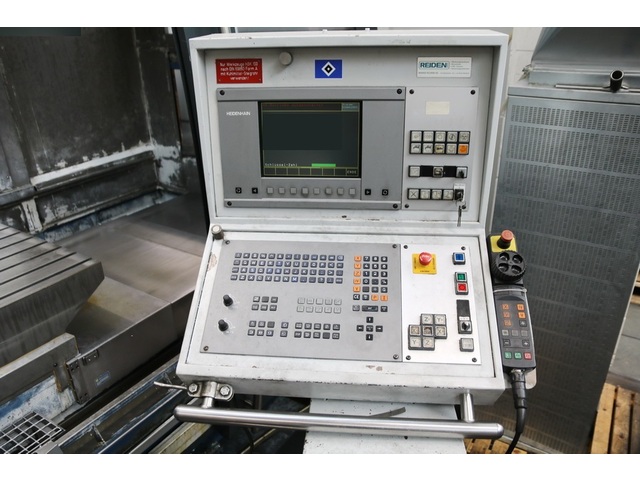

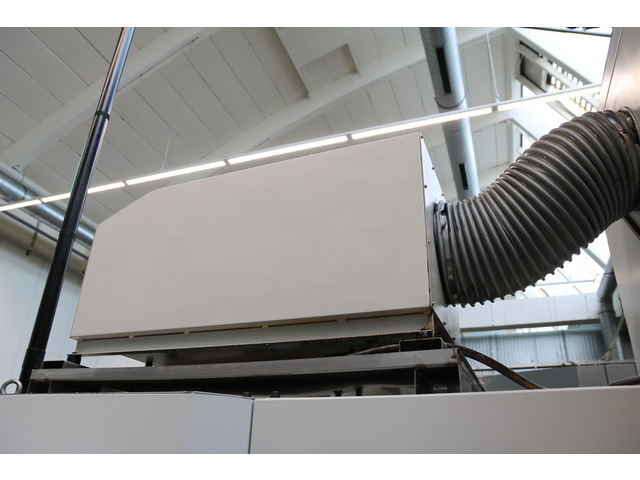

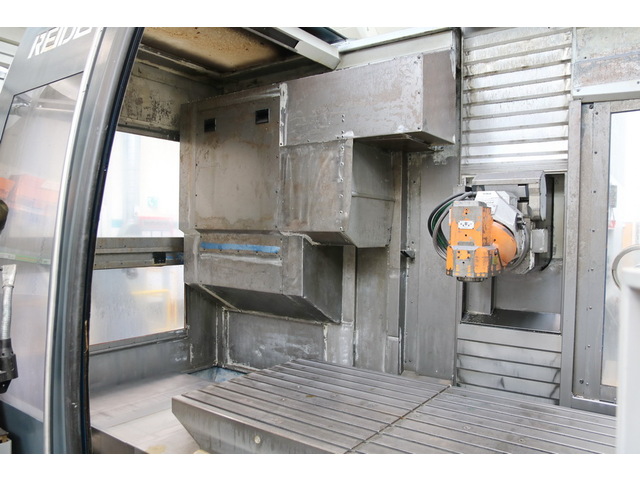

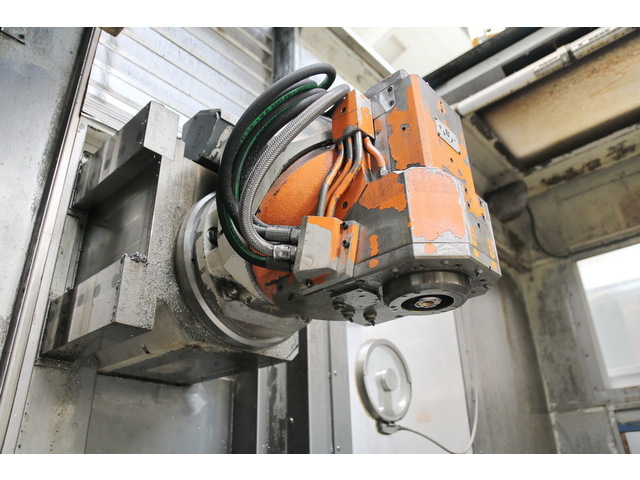

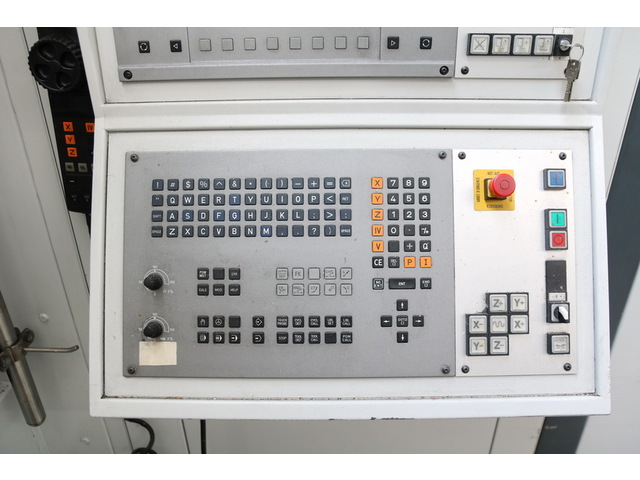

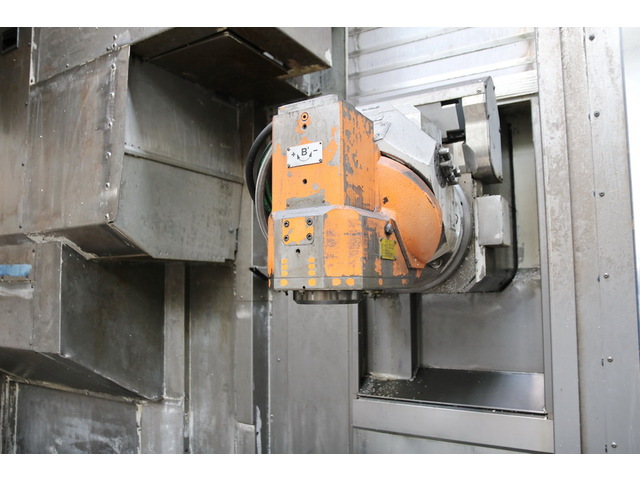

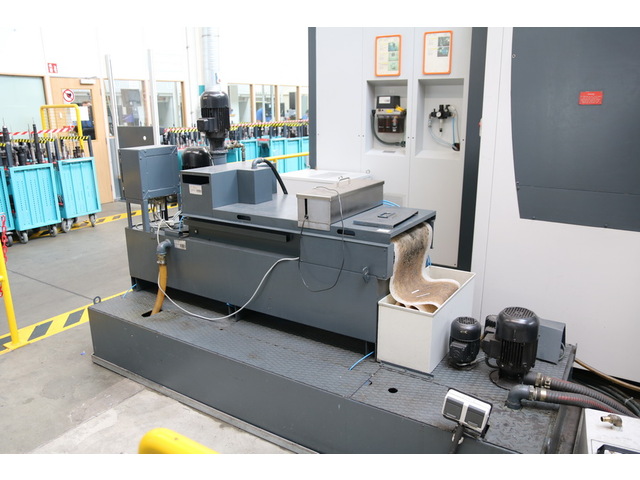

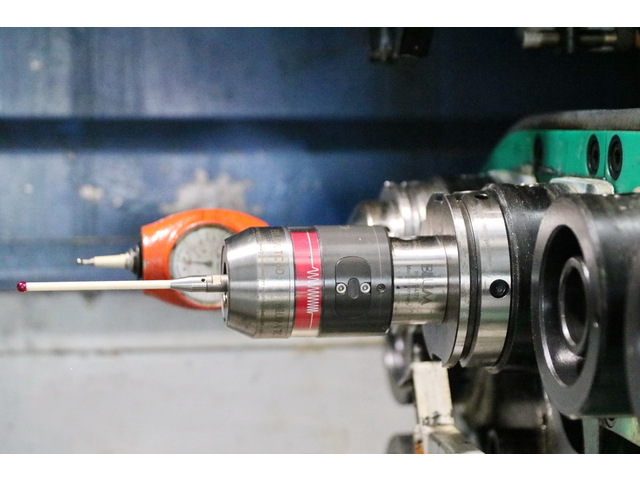

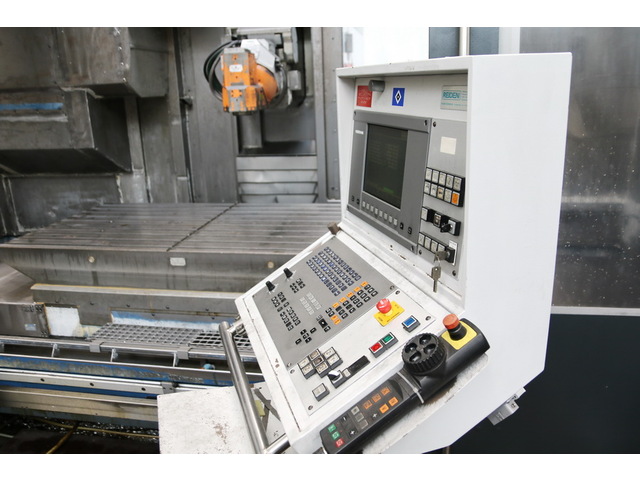

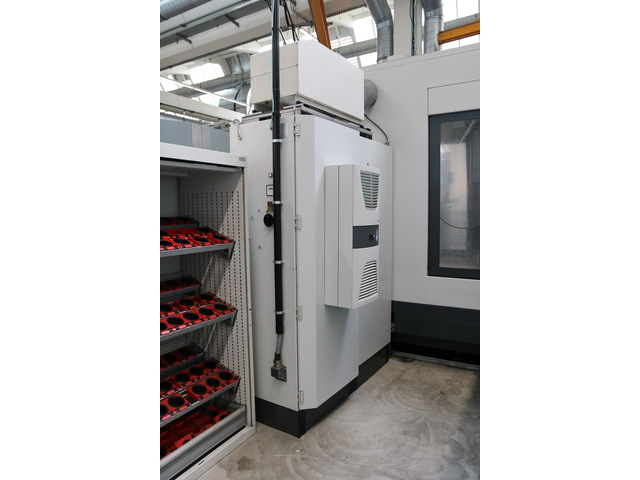

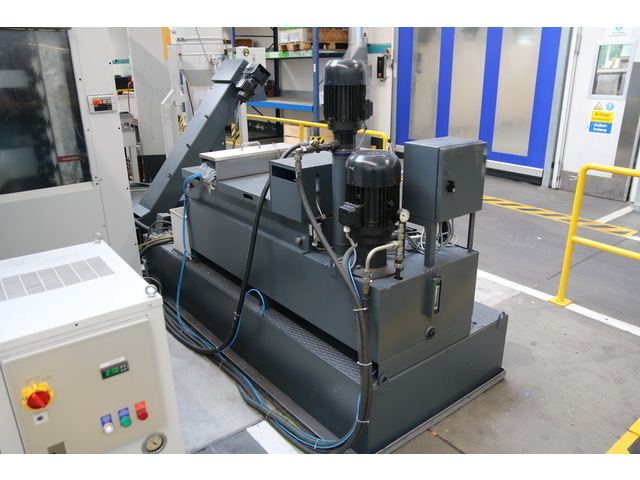

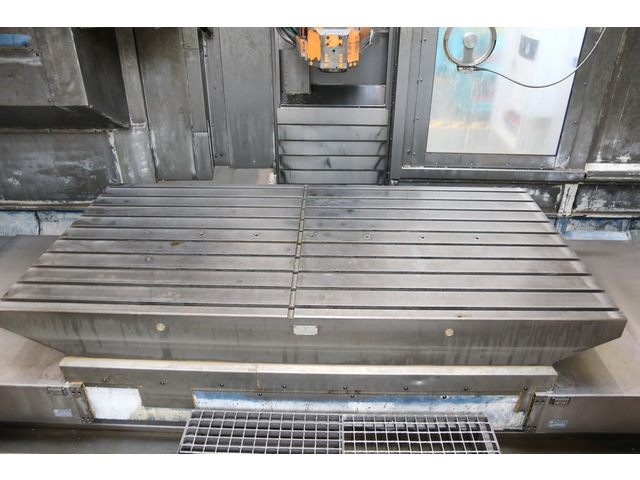

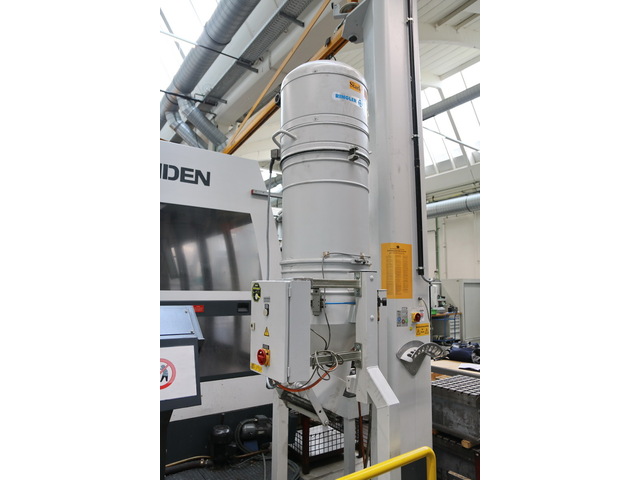

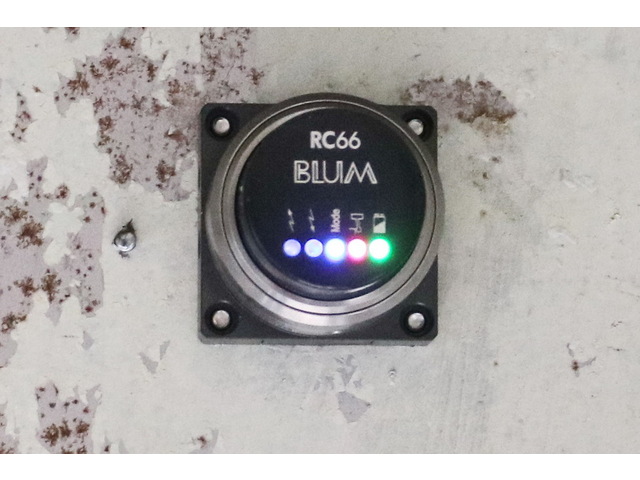

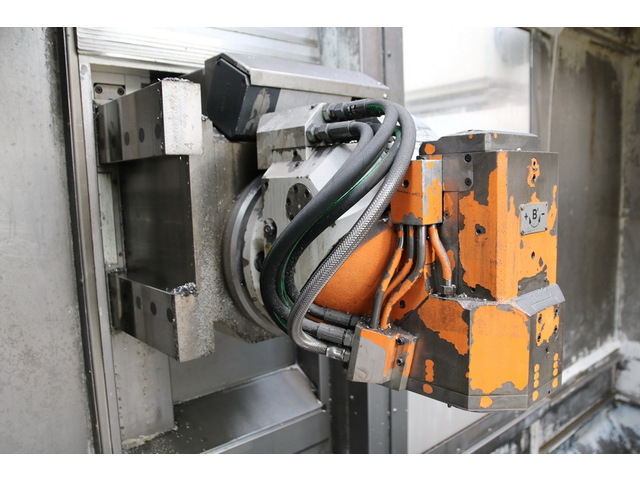

Main Specifications	4-Axis CNC Machining Center - Universal REIDEN - BFR 22 - incl. 2x tool cabinets for collets - incl. 3x pull-out cupboards - incl. 1x workbench - incl. Ringler chip extractor \| x-travel: 2.000 mm \| y-travel: 1.000 mm \| z-travel: 1.200 mm \| control: TNC 430 Heidenhain \| turning speed range - main spindle: 20 - 5.000 min/-1 \| transmission ratio: 2 \| power capacity - main spindel: 30 (100%) / 45 (40%) kW \| Torque: 1.050 / 1.580 Nm \| swivellable: B: +/- 180 ° \| indexing: B: 0,001 ° \| table surface area: 1.000 x 2.000 mm \| max. table load: 4.000 kg \| flute distance: 100 mm \| T-slots: 18 H7 \| number of T-slots: 10 \| number of toolpositions: 40 pos. \| tool taper: HSK 100 \| tool changing time: 10 sec \| max. tool diameter: 250 mm \| max. tool length: 400 mm \| max. tool weight: 20 kg \| feed speeds: B: 10 1/min \| output: B: 2,5 kW \| feed power: 22'500 N \| total power requirement: kW \| weight of the machine ca.: 23 t \| dimensions of the machine ca.: 8,0 x 8,0 x 3,3 m \| B-axis: 0,001° \| Clamping table: 2x: 50 x 50 x 37 cm \| test probe: Blum TC 60 \| Vice: 4x
Location	Mittelweg 92 59302 Oelde Germany
Viewing Status	Consultation
Test Run Status	Consultation
