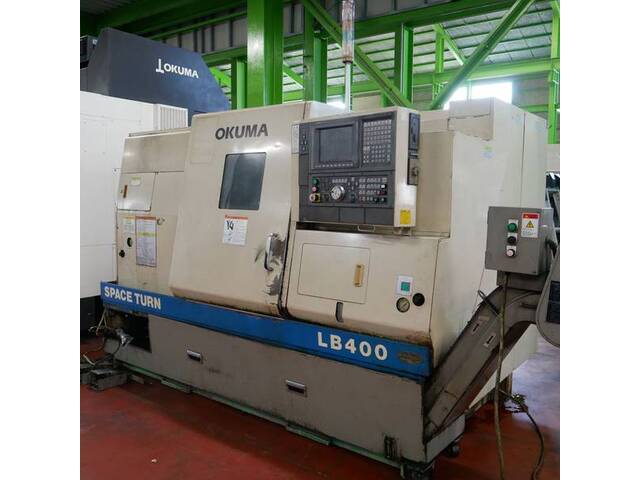

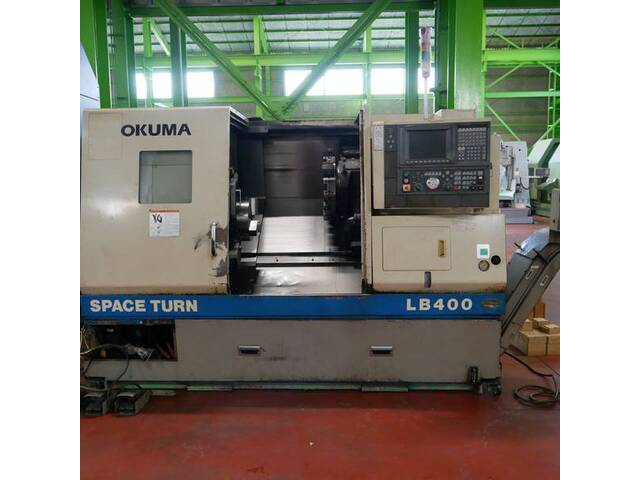

Okuma LB-400C×650 Lathe Chuck

Lathe Chuck Work/Product Holder Publication Date: February 13, 2025 Print (Without Logo) Print (With Logo)

ShinMaywa Kiko
Company information will be disclosed upon member registration.
Listed Stock List
Stock ID 48302
Stock Code 20106084
Manufacturer Okuma inventory List
Model Type LB-400C×650
Year 2000
Main Specifications

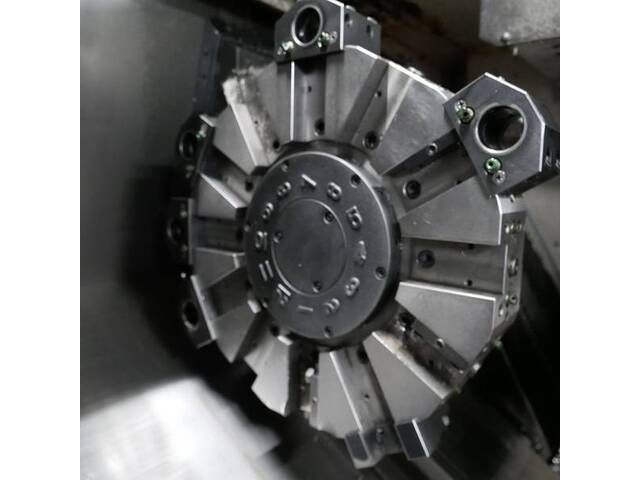

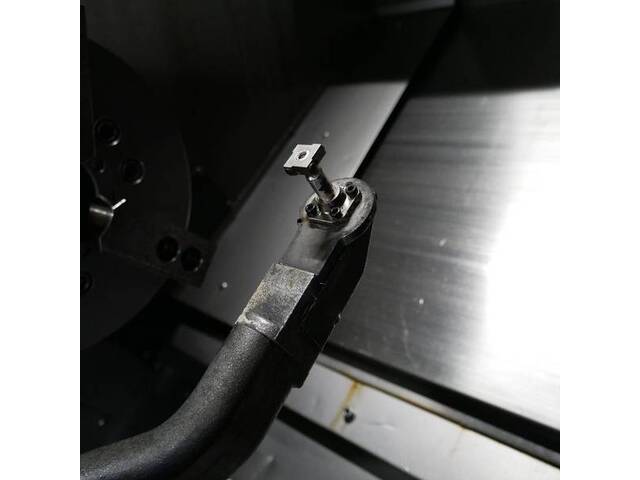

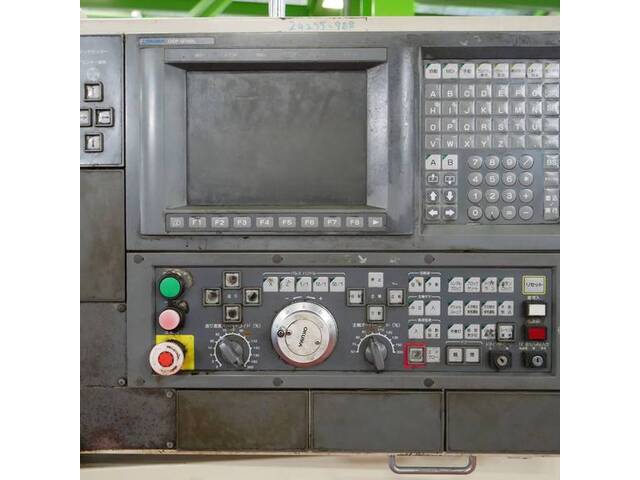

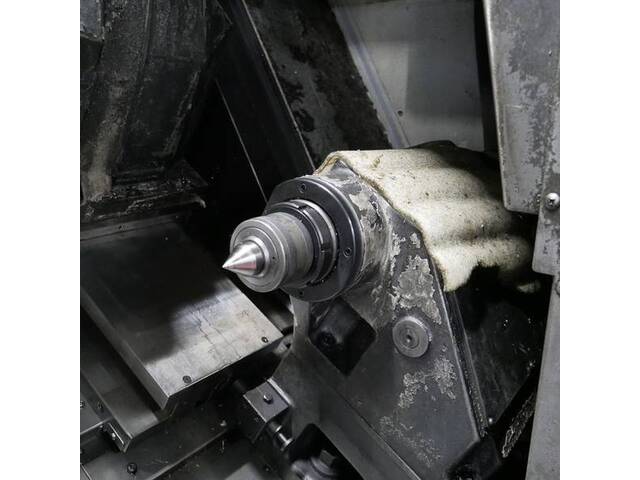

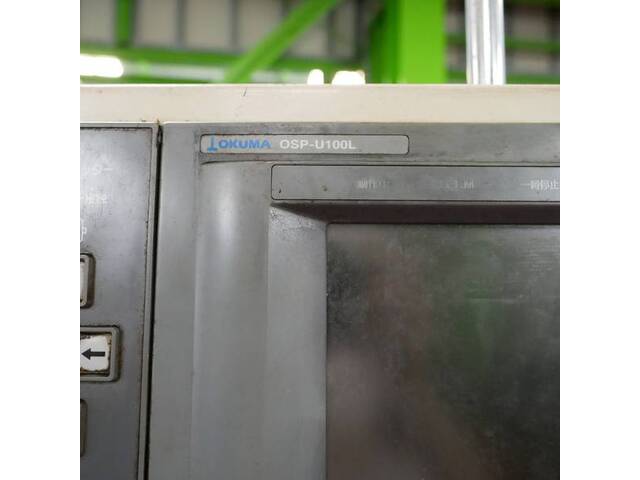

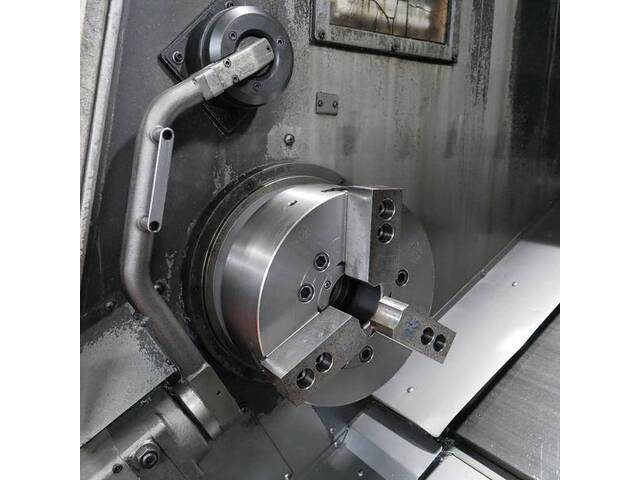

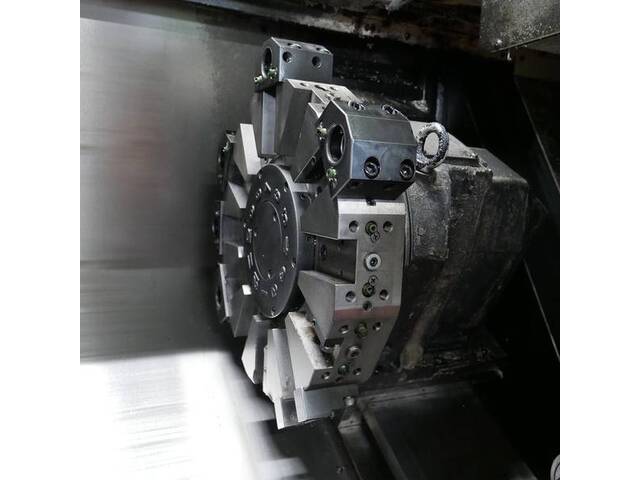

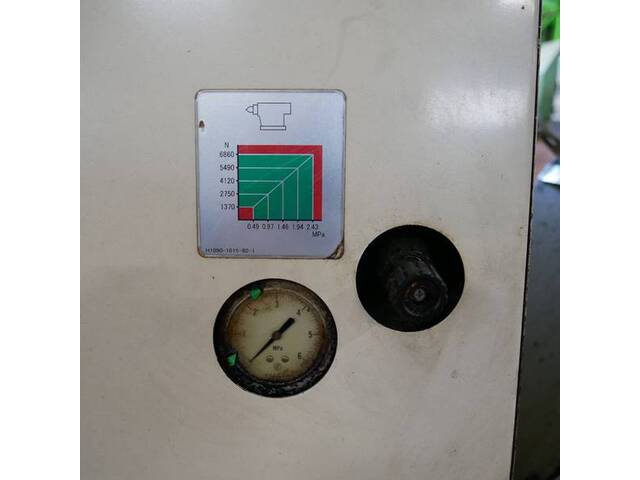

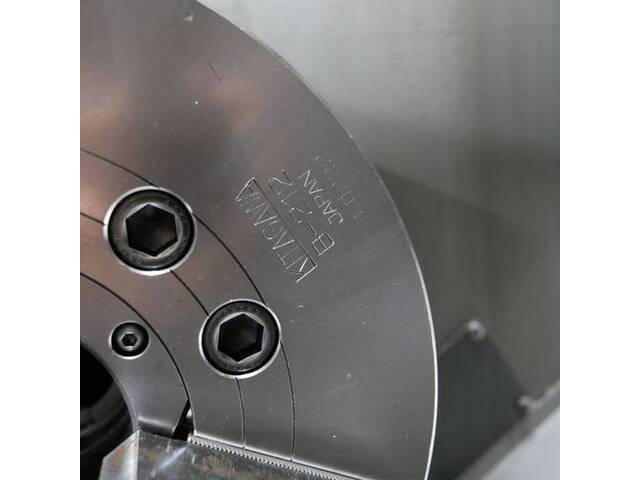

◆Control device: OSPU100L ◆Hydraulic tailstock: Dead type MT No.5 ◆Hydraulic chuck: B-212 ◆Swing above bed: Φ620 ◆Swing above carriage: Φ480 ◆Center distance: 675 ◆Maximum machining diameter: Φ420 ◆Maximum machining length: 650 ◆Travel amount XZ: 300(210+90)×1275 ◆Spindle rotation speed: 35-3500 ◆Number of spindle speed change ranges: Automatic 2-stage (VAC motor winding switching) ◆Spindle end: JIS A2-8 ◆Spindle through hole diameter: Φ80 ◆Spindle bearing inner diameter: Φ120 ◆Tool post: V12M ◆Number of tools mounted on tool post: L12 ◆Shank height of square tool: 25 ◆Diameter of shank of boring bar: Φ40 ◆Tool post indexing time: 0.2 ◆Rapid traverse speed: X20000/Z25000 ◆Cutting feed speed: X, Z 0.001 to 1000000 ◆Tailstock shaft diameter: Φ100 ◆Tailstock shaft tapered hole type: MT No.5 (rotating center) ◆Tailstock shaft travel distance: 150 ◆Spindle motor: VAC 22/15 (30 min./continuous) ◆Feed shaft motor: X: BL4/Z: BL6 ◆Cutting agent motor: Chip side discharge: 0.25, rear discharge: 0.8 ◆Power supply: 29.5 (continuous) ◆Machine height: 2110 ◆Required floor space: 3980 x 1900 ◆Machine weight: 5400 *Special specifications◆Touch setter: M ◆Easy dialogue kit◆Program store capacity Tape length 320 m → 640 m _If there are any differences between the specifications and the actual product, the actual product will take precedence.
Location Mie Prefecture
Viewing Status Consultation
Test Run Status Consultation
