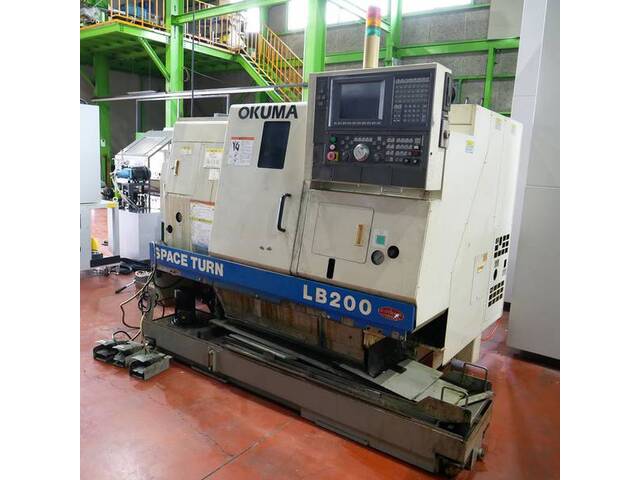

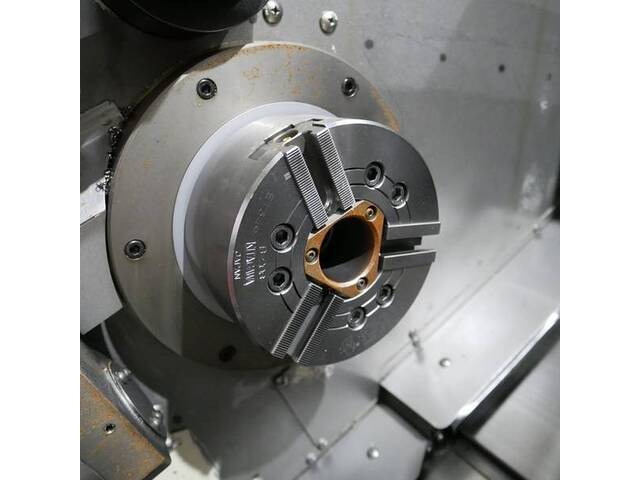

Okuma LB-200 Lathe Chuck

Lathe Chuck Work/Product Holder Publication Date: February 13, 2025 Print (Without Logo) Print (With Logo)

Company information will be disclosed upon member registration.

Stock ID	48300
Stock Code	20101082
Manufacturer	Okuma inventory List
Model Type	LB-200
Year	2001

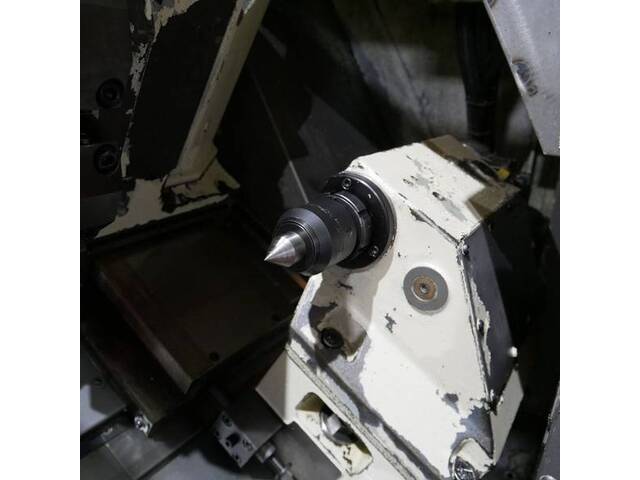

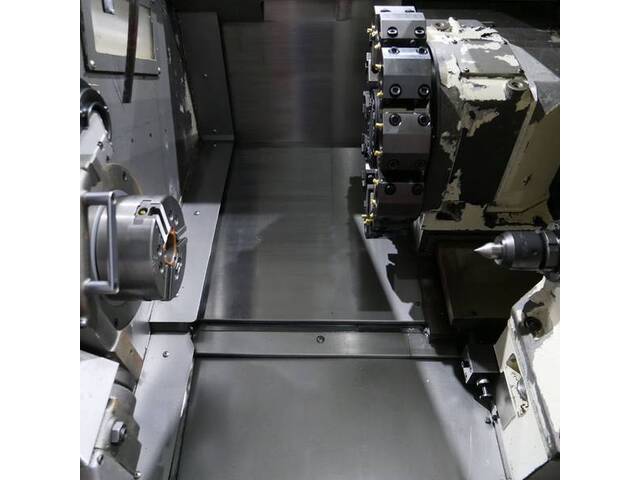

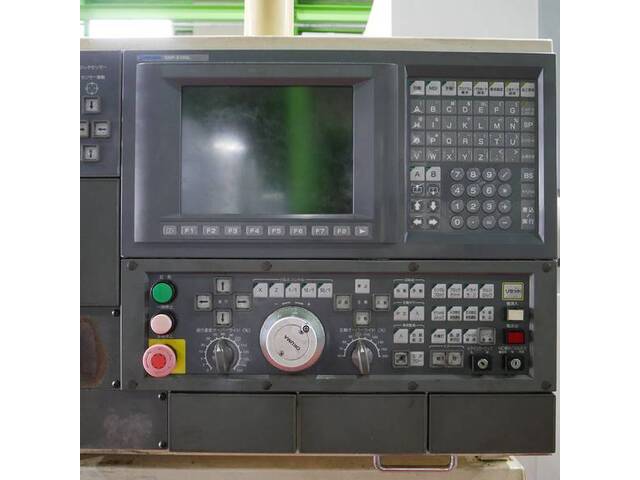

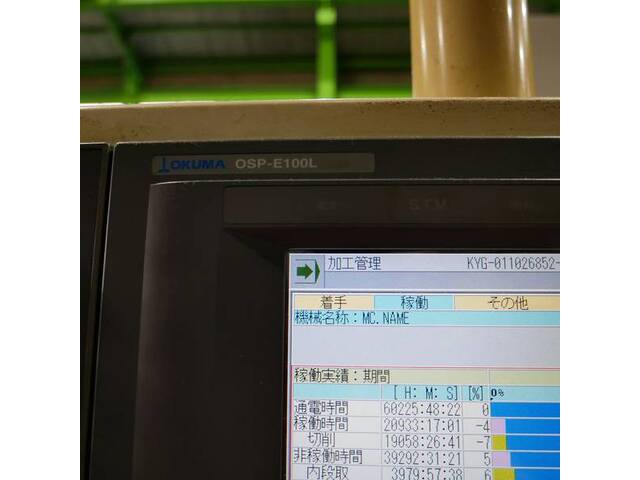

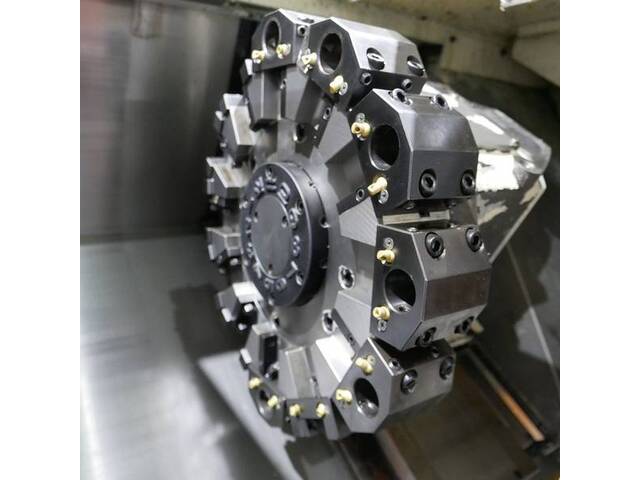

Main Specifications	◆Control device: OSP-E100L ◆Swing above bed: Φ530 ◆Swing above carriage: Φ530 ◆Center distance: 300 ◆Maximum machining diameter x length: Φ230 x 300 ◆Travel amount: X180, Z335 ◆Spindle rotation speed: 50-6000 ◆Rotation speed conversion number: Automatic 2-stage (VAC motor winding switching) ◆Spindle end: Flat Φ140 ◆Spindle through hole diameter: Φ53 ◆Spindle diameter: Φ80 ◆Tool post type: V12NC tool post ◆Number of tools mounted on tool post: L12 ◆Height of shank part of square tool: 20 ◆Diameter of shank part of boring bar: Φ32 ◆Tool post indexing time: 0.1 (index) ◆Rapid traverse speed: X25, Z30 ◆Cutting feed speed: XZ0.001-1,000 ◆Tailstock shaft diameter: Φ55 ◆Type of tailstock shaft tapered hole: MT.No.4 ◆Tailstock shaft travel distance: 80 ◆Spindle motor: VAC 7.5/5.5 ◆Feed shaft motor: X,BL3/Z,BL4 ◆Cutting agent motor: Side chip discharge 0.25, rear discharge 0.8 ◆Required power supply: 16 ◆With easy dialogue ◆Machine dimensions: W1985×D1620×H1700 ◆Machine weight: 3300? _If there are any differences between the specifications and the actual product, the actual product will take precedence.
Location	Mie Prefecture
Viewing Status	Consultation
Test Run Status	Consultation
