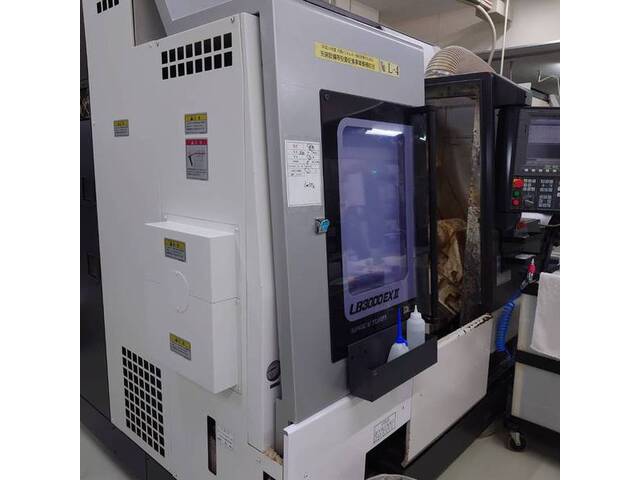

Lathe Chuck Work/Product Holder Publication Date: February 13, 2025 Print (Without Logo) Print (With Logo)

Stock ID | 48301 |
Stock Code | 20102072 |
Manufacturer | Okuma |
Model Type | LB-3000EX? |
Year | 2013 |
Main Specifications | ◆OSP: OSP-P300L ◆Specifications: MY C450 ◆Center distance: 470 ◆Maximum machining diameter: Φ340 ◆Maximum machining length: 450 ◆Travel (XYZ): 260×120(+70~-50)×510 ◆C axis: 360(rotary axis control angle 0.001) ◆Tailstock travel: 515 ◆Spindle size: Standard spindle (A2-6) 45~5000min-1 ◆Spindle motor (standard spindle): VAC22/15kw(30min/continuous) ◆Tool rest (combined machine): Composite V12 radial ◆Tailstock axis taper type: Dead type MT No.5 ◆Tailstock travel method: NC tailstock ◆Rotary tool spindle (combined machine): 6000min-1 PREX7.1/4.1kw 40.4Nm ◆M/MY machine chucking kit: BB kit ◆Hollow chuck BB208A: SS1770 included ◆OSP kit OSP Easy Dialogue Advance MD Circular thread cutting function Programmable message function Coordinate conversion Creation processing Easy Dialogue Advance L Combined: Real 3D included Cycle time overcheck Load monitor function (spindle + feed axis) Tool life management function NC operation monitor (including NC counter) Status indicator light: 3-stage C type Operation time reduction function Hi Cut Pro Spindle rotation speed fluctuation control ◆OSP individual program store capacity: 2GB or more guaranteed (standard) Operation buffer capacity: 2MB or more guaranteed (standard) Spindle fixed position stop Electrical environmental thermal displacement control (TAS-C) Z-axis automatic origin offset Helical cutting function Anti-crash system DNC-DT Automatic power cut-off function MO2/Alert Pitch error compensation function Earth leakage cut-off function Machining Navi: L-g (including microphone and conversion plug) _If there is a difference between the specifications and the actual product, the actual product will take precedence. |
Location | Mie Prefecture |
