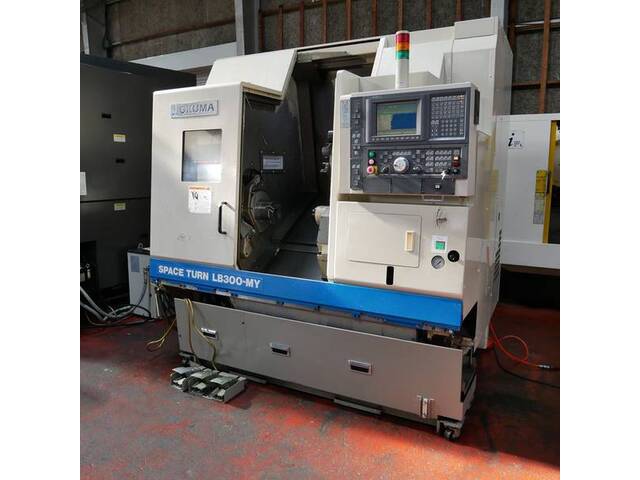

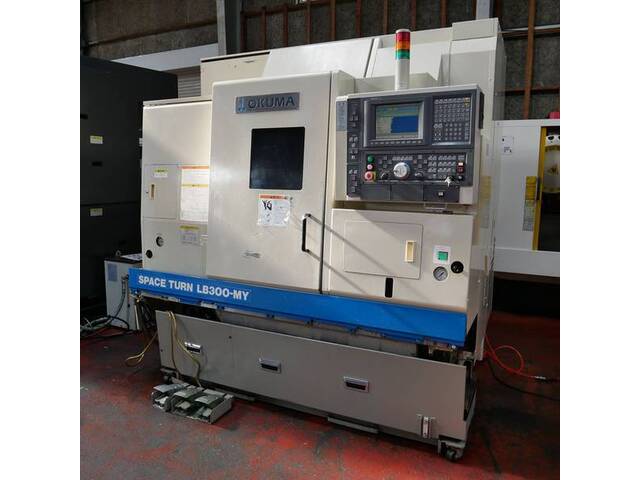

Okuma LB-300MY Lathe Chuck

Lathe Chuck Work/Product Holder Publication Date: February 13, 2025 Print (Without Logo) Print (With Logo)

Company information will be disclosed upon member registration.

Stock ID	48299
Stock Code	20101081
Manufacturer	Okuma inventory List
Model Type	LB-300MY
Year	2003

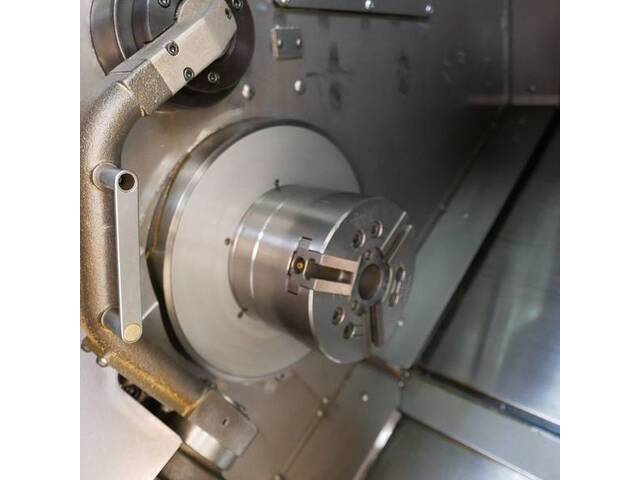

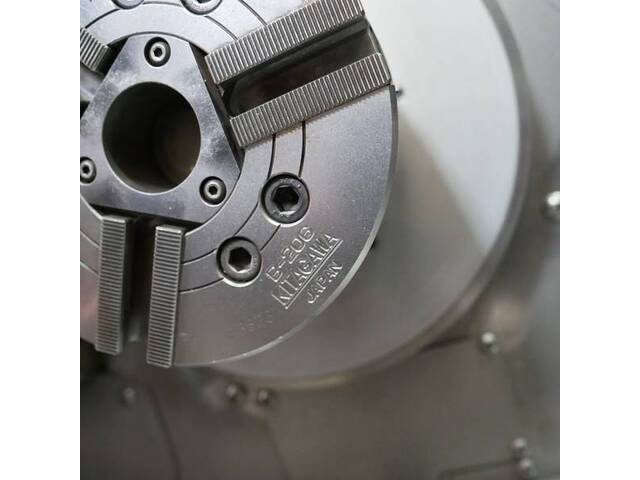

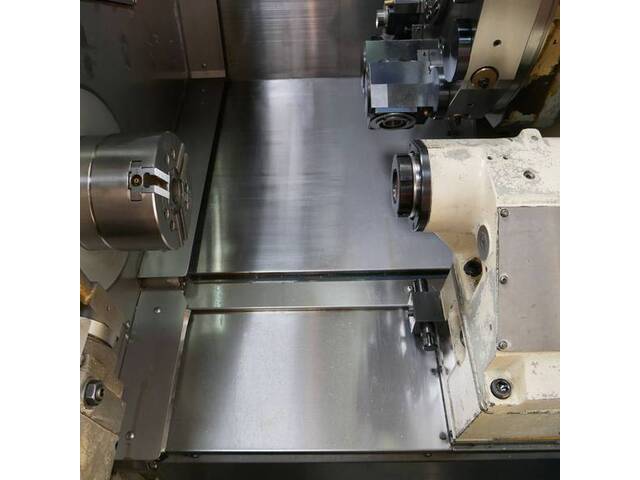

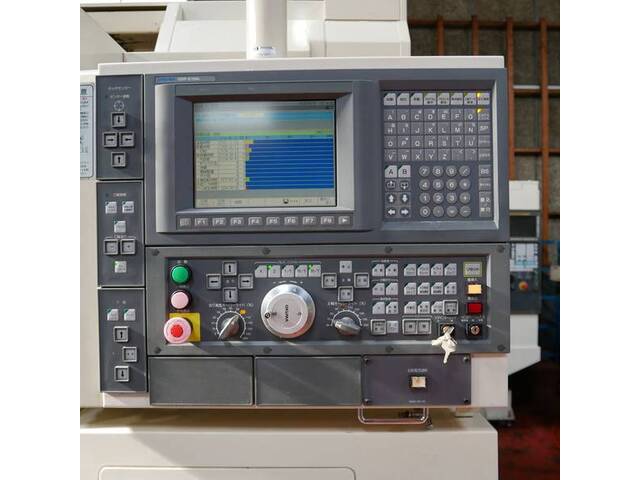

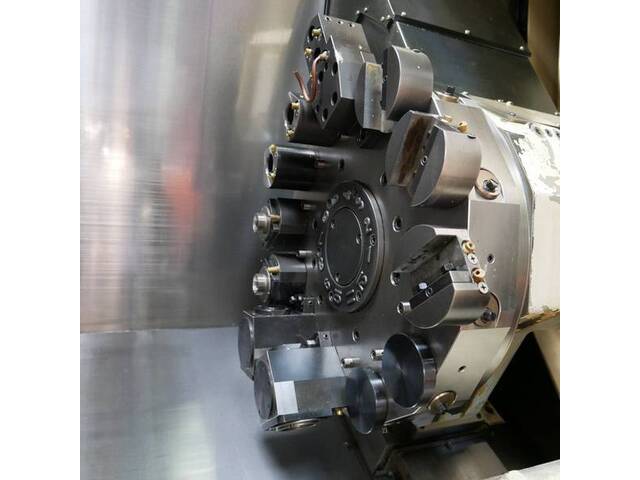

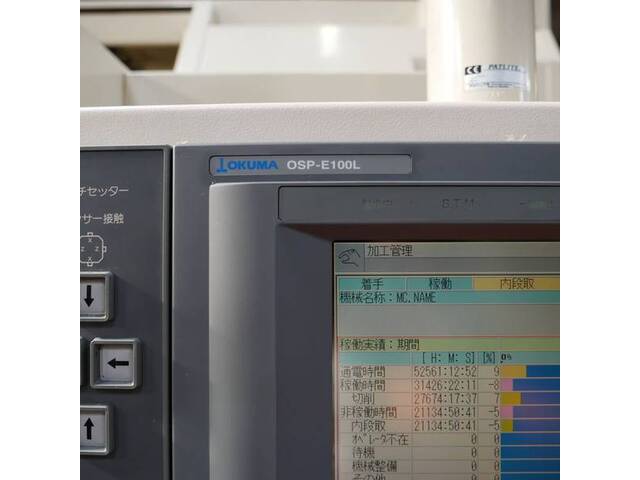

Main Specifications	◆Control device: OSP-E100L ◆Swing above bed: Φ530 ◆Swing above carriage: Φ410 ◆Center distance: 500 ◆Maximum machining diameter: Φ340 ◆Maximum machining length: 480 ◆Travel: X280, Y120, Z500, C360° ◆Spindle rotation speed: 45-4500 ◆Spindle speed change range: Automatic 2-stage ◆Spindle end: JIS A2-6 ◆Spindle through hole diameter: Φ62 ◆Spindle bearing inner diameter: Φ100 ◆Chuck: Kitagawa B-206, 6 inches ◆Tool post type: Composite V12NC tool post ◆Tool post tool mounting number: 12 for LM ◆Diameter of shank of boring bar: Φ40 ◆Rotating tool spindle rotation speed: 45-4500 min-1 ◆Number of rotary tool spindle speed change ranges: automatic 2-stage ◆Rapid forward speed: X20000, Y10000, Z25000, 200 min-1 ◆Cutting feed speed: XYZ0.0001-1000000 ◆Tailstock shaft diameter: Φ90 ◆Tailstock shaft tapered hole type: MT NO.5 ◆Tailstock shaft travel distance: 120 ◆Spindle motor: VAC-15/11 ◆Rotary tool spindle motor: PREX7.0/3.3 ◆Feed shaft motor: X, BL4/Y, BL6/YS, BL3 ◆Required power source: 25 kVA ◆Machine dimensions: W2200 × D1720 × H2200 ◆Machine weight: 6000? _If there are any differences between the specifications and the actual product, the actual product will take precedence.
Location	Mie Prefecture
Viewing Status	Consultation
Test Run Status	Consultation
