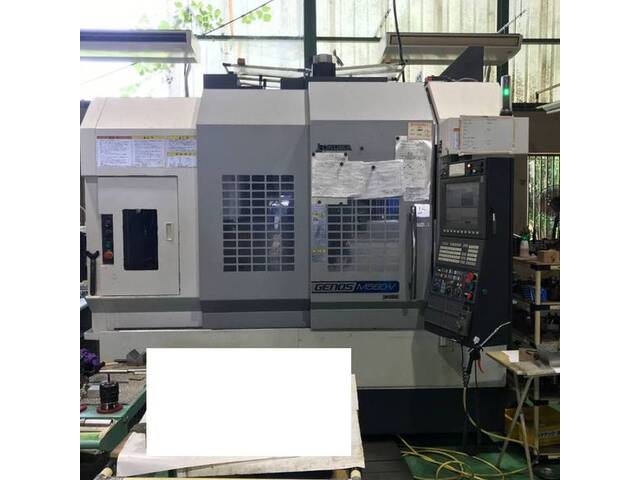

Okuma GENOS M560-V Vertical Machining Center

Vertical Machining Center Machining Center - NC Publication Date: February 13, 2025 Print (Without Logo) Print (With Logo)

Company information will be disclosed upon member registration.

Stock ID	47807
Stock Code	20302147
Manufacturer	Okuma inventory List
Model Type	GENOS M560-V
Year	2017
Main Specifications	◆Travel amount XYZ: 1,050×560×460 ◆Table top surface to spindle end surface: 160 to 610 ◆Table dimensions: 1,300×560 ◆Floor surface to table top surface: 800 ◆Maximum load weight: 900 ◆Spindle rotation speed: 8,000 ◆Number of spindle speed change ranges: Infinitely variable ◆Spindle taper hole: 7/24 taper No. 40 ◆Spindle bearing inner diameter: Φ70 ◆Rapid forward speed XYZ: 40×40×32 ◆Cutting feed speed XYZ: 32 ◆Spindle motor (10 min/continuous): 11/7.5 ◆Feed axis motor XYZ: 4.0 ◆Tool shank type: MAS BT40 ◆Pull stud type: MAS 2 ◆Number of tools that can be stored: 20 ◆Maximum tool diameter (adjacent): Φ90 ◆Maximum tool diameter (no adjacent tools): Φ125 ◆Maximum tool length: 300 ◆Maximum tool weight: 8 ◆Maximum tool mass moment: 7.8 ◆Tool selection method: Memory random ◆Machine dimensions: 2,510 x 3,100 x 2,746 ◆Machine mass: 7,500 _If there are any differences between the specifications and the actual product, the actual product will take precedence.
Location	-
Viewing Status	Consultation
Test Run Status	Consultation
