Attachment for Horizontal Boring Machine

NC Horizontal Type Boring Mills Milling Machine - NC Publication Date: June 05, 2026 Print (Without Logo) Print (With Logo)

AK TECHNOS CO., LTD.

050-1882-2946

Stock ID 89653
Stock Code 00000001025
Manufacturer TOSHIBA MACHINE inventory List
Model Type 回転面板CS
Year Unknown
Main Specifications

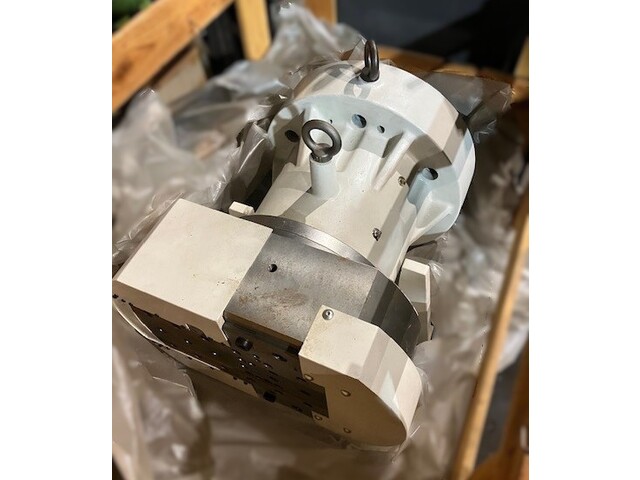

Attachment for Horizontal Boring Machine Rotating Facing Head CS
Purchased 10 years ago, used only once for test run, almost like new

※ Main Unit Specifications
Faceplate diameter: Φ430 mm
Slide stroke: 80 mm
Slide movement: Spindle (W‑axis) feed × 1 (1:1)
Maximum rotation speed: 150 min⁻¹
Lubrication: Grease lubrication
Tool holder shank diameter: 25 mm (Option)
Applicable models: BP‑130/ BP‑150/ R22 series

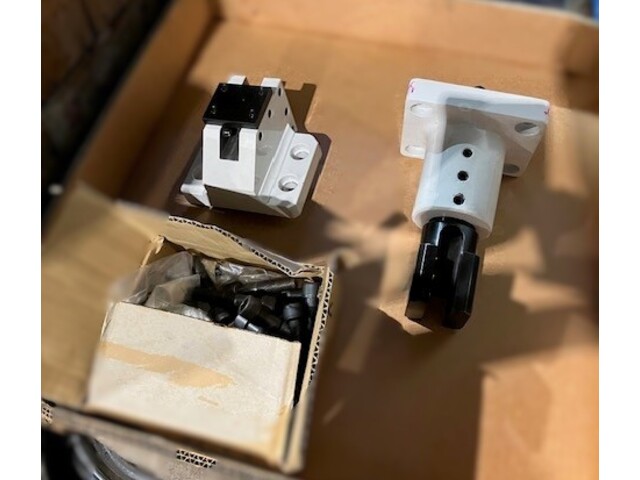

※ Optional Attachments
Tool Holder CS – S‑0E004
(Type: Standard tool holder
Compatible machines: BTD / BP series)

Telescopic Tool Holder CS – S‑0E005
(Type: Telescopic tool holder
Compatible machines: BTD / BP series)

Location -
Viewing Status Consultation
Test Run Status Consultation
