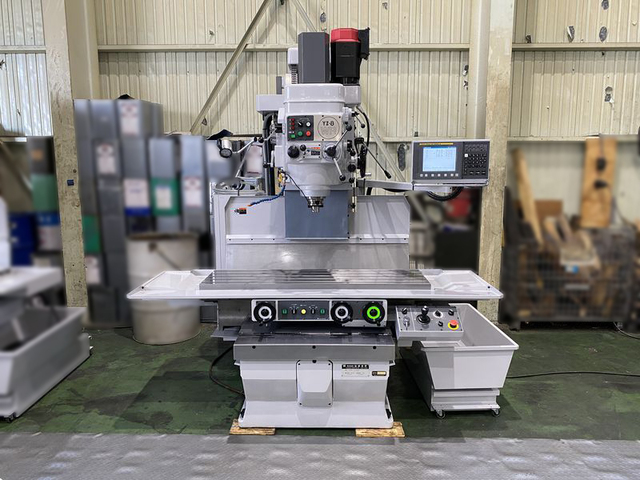

Vertical Boring NC Milling Machine

NC Vertical Milling Machine Milling Machine - NC Publication Date: July 17, 2025 Print (Without Logo) Print (With Logo)

AK TECHNOS CO., LTD.

050-1882-2946

Stock ID 76206
Stock Code 0000000989
Manufacturer YAMASAKI GIKEN inventory List

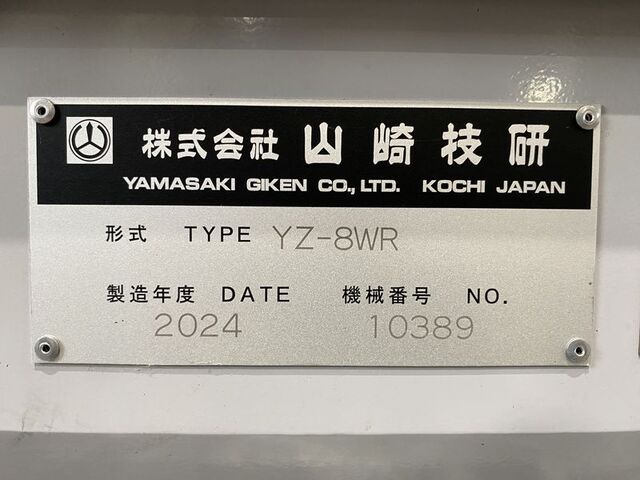

Model Type YZ-8WR(No.10389)
Year 2024
Main Specifications

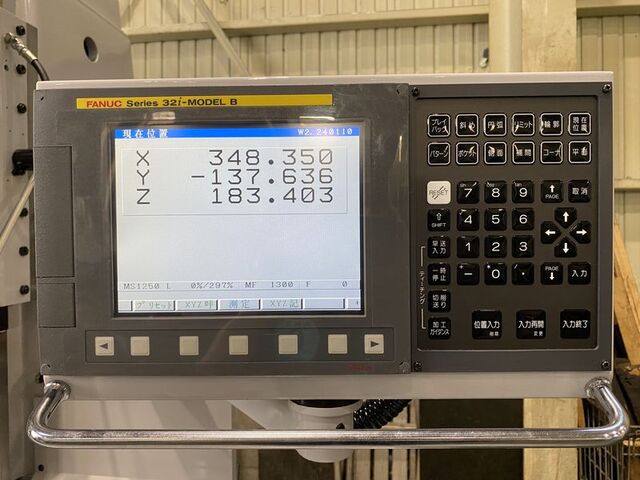

Control unit: FANUC 32i-MODELB

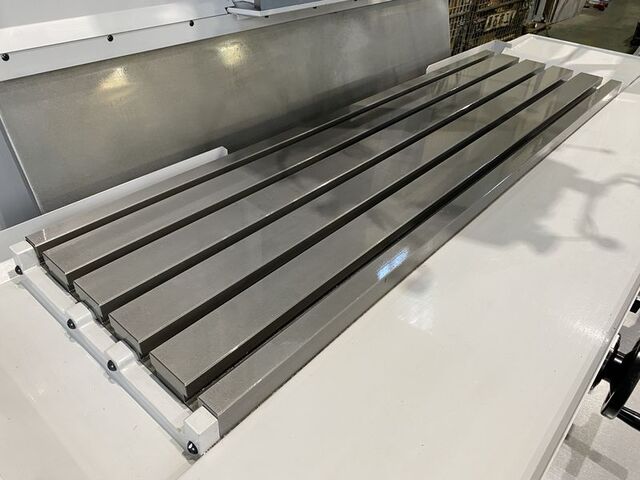

Table size: 1400 x 400 mm
Max. work weight: 600 kg
Table T-slot width and pitch: 18 (h7) P = 80 mm
Number of table T-slots: 5
Travel X: 850  Y: 400  Z: 520 mm
Spindle end to table top: 140 to 660 mm
Spindle speed: 55~2,000 rpm

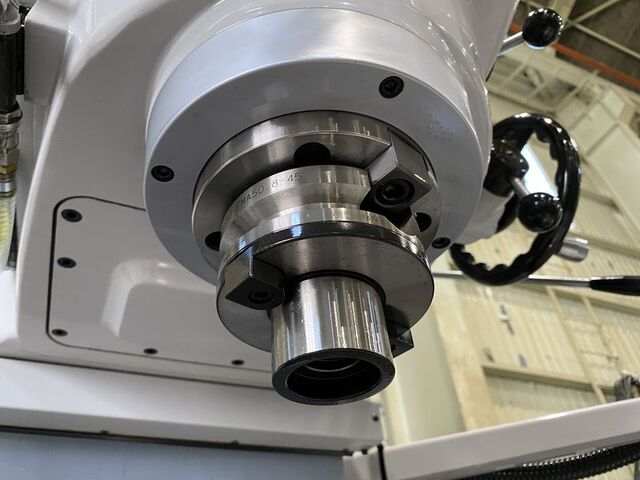

Spindle taper: BT50

Machine required area: 2,954 x 1,870 mm
Height: 2,499 mm
Machine weight: Approximately 3,700 kg

NC 2 axis (X, Y axis), Z axis manual
Bullstat type tool attachment/detachment device (BT50)
Chip coil conveyor
Air blower for cutting chips (manual)
Cutting tank (60ℓ)
Processing guidance function

Location Nara Prefecture
Viewing Status Available
Test Run Status Available
