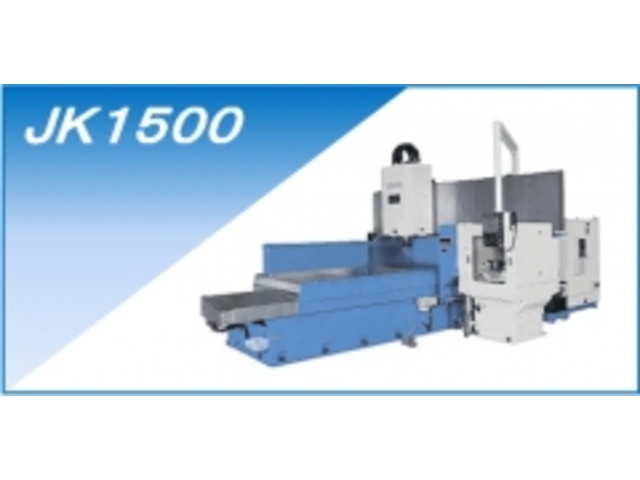

Gantry-Type NC Milling Machine

NC Vertical Milling Machine Milling Machine - NC Publication Date: March 14, 2025 Print (Without Logo) Print (With Logo)

Inquire by phone

Stock ID	50689
Stock Code	0000000948
Manufacturer	NIIGATA MACHINE TECHNO inventory List
Model Type	JK1500
Year	2013
Main Specifications	Control unit : FANUC 35i-MODEL B Table : 1,500×2,800 mm Travel (X, Y, Z) : 2,950×2,190×345 mm Distance from the top of the chuck to the end of the spindle (φ 200): 138～483 mm Max. work weight : 4,000 kg Spindle speed : 55～795 rpm Tool storage capacity : 4 stations Spindle tip : BT60 Two-sided restraint Cutter tip diameter (face milling) : φ 200mm (Rough, finishing) φ 315mm (Finishing) Machine area : 4,700×8,200×3,230 mm Maintenance area : 6,300×9,260 mm Machine weight : 30,500 kg Electromagnetic chuck with hydraulic axim : 1,500x2,700 mm Manual pulse handle Operation panel side coil conveyor High speed spindle compatible
Location	Nara
Viewing Status	Consultation
Test Run Status	Prohibited
