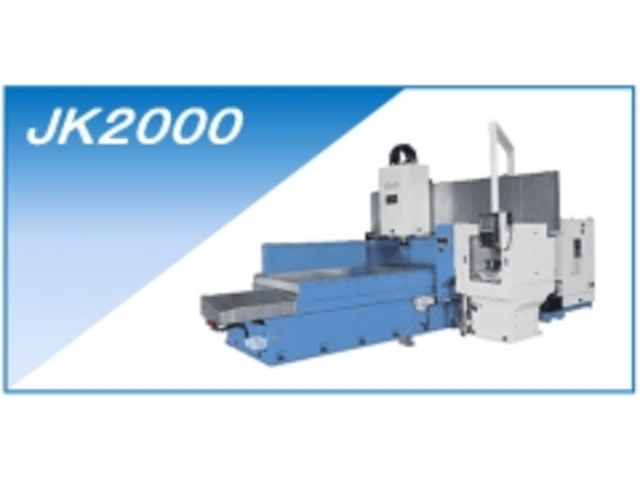

NIIGATA MACHINE TECHNO JK2000 NC Vertical Milling Machine

NC Vertical Milling Machine Milling Machine - NC Publication Date: March 14, 2025 Print (Without Logo) Print (With Logo)

Company information will be disclosed upon member registration.

Stock ID	50688
Stock Code	0000000949
Manufacturer	NIIGATA MACHINE TECHNO inventory List
Model Type	JK2000
Year	2015
Main Specifications	Control unit : FANUC 35i-MODEL B Table : 2,000×4,100 mm Travel (X, Y, Z) : 4,235×2,245×357 mm Distance from the top of the chuck to the end of the spindle (φ200): 138～495mm Max. work weight : 4,000 kg Spindle speed : 55～795 rpm Tool storage capacity : 4 stations Spindle tip : BT60 Two-sided restraint Cutter tip diameter (face milling): φ200mm (Rough, finishing) φ315mm (Finishing) Machine area : 4,750×11,100×3,400 mm Maintenance area : 6,300×11,100mm Machine weight : 39,000 kg Electromagnetic chuck with hydraulic axim : 2,000×4,000 mm Manual pulse handle Operation panel side coil conveyor High speed spindle compatible
Location	Nara
Viewing Status	Available
Test Run Status	Prohibited
