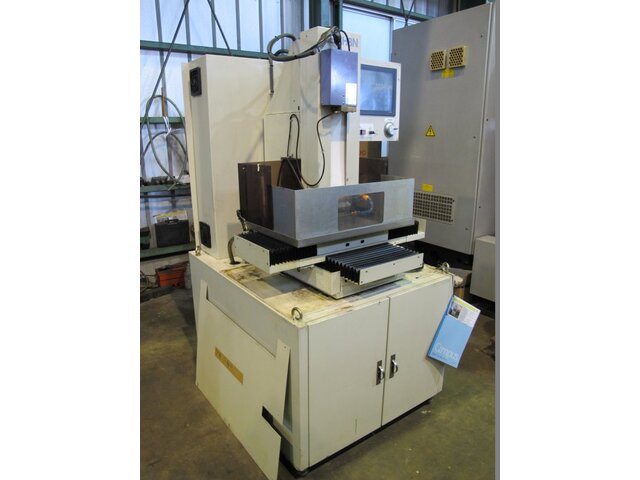

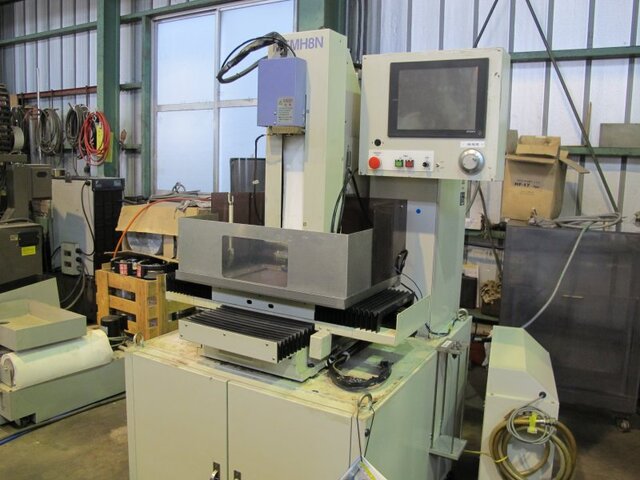

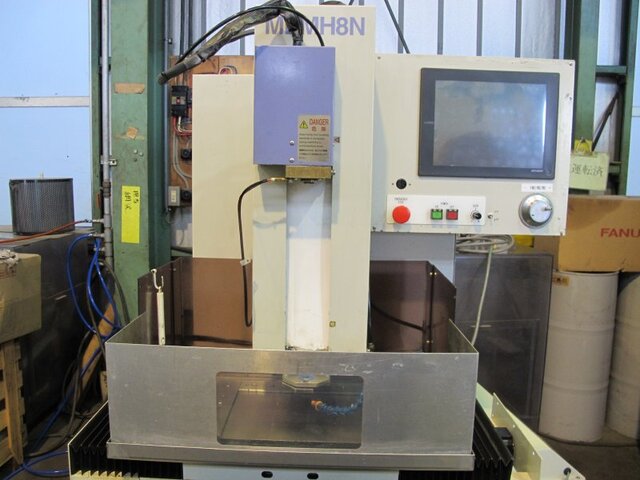

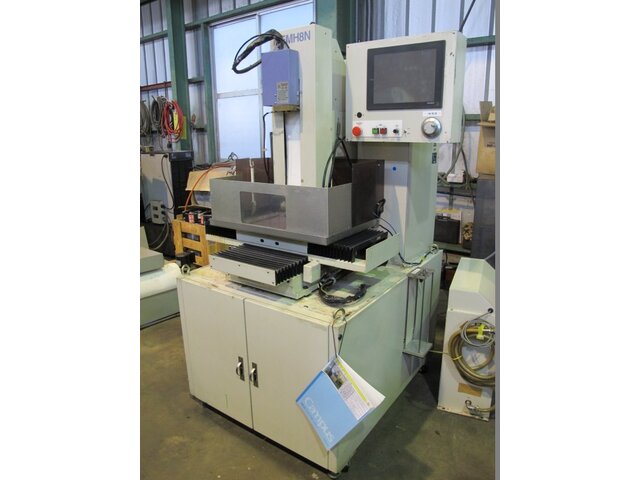

EDM (Hole-Driller) EDM - NC Publication Date: March 05, 2025 Print (Without Logo) Print (With Logo)
| Stock ID | 50290 |
| Stock Code | 26315 |
| Manufacturer | メルコメカトロシステム |

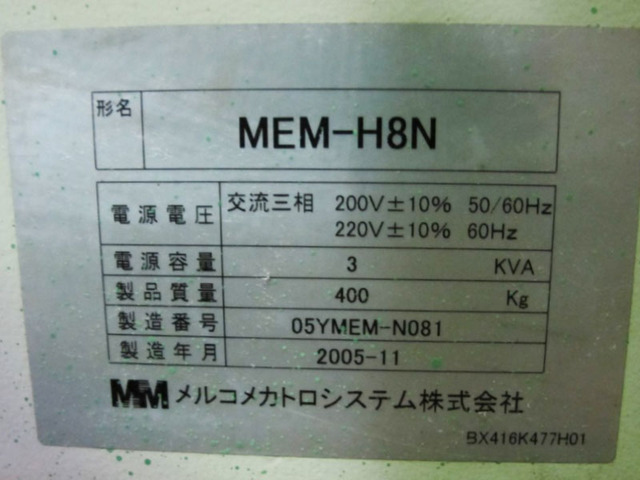

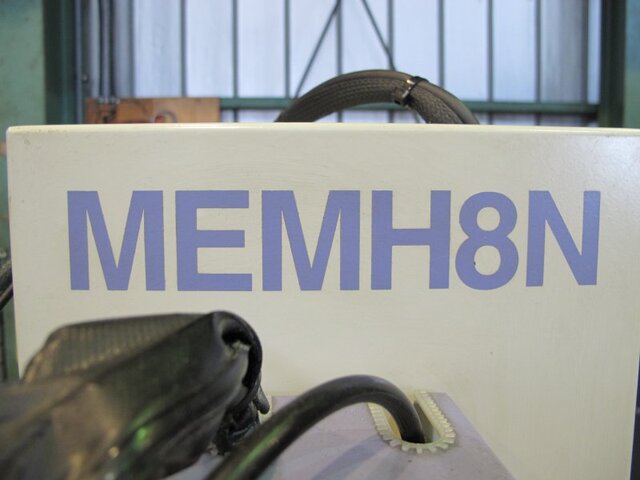

| Model Type | MEM-H8N |
| Year | 2005 |

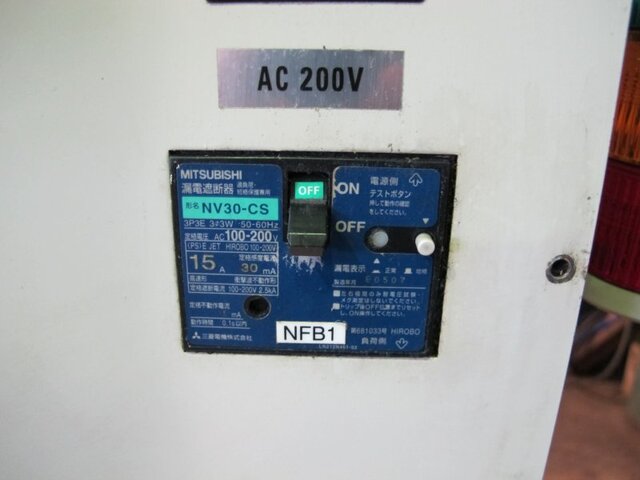

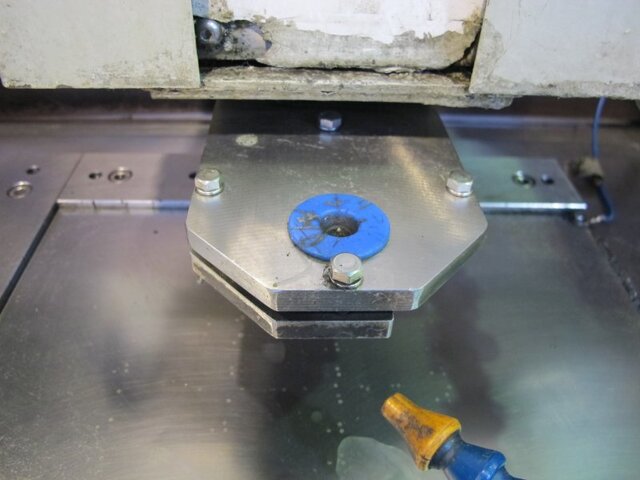

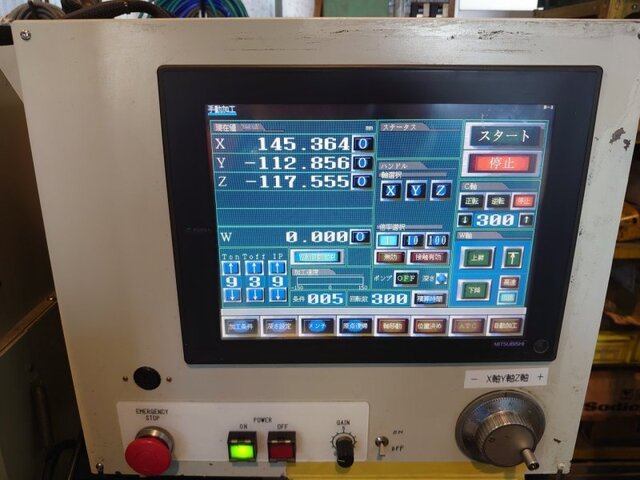

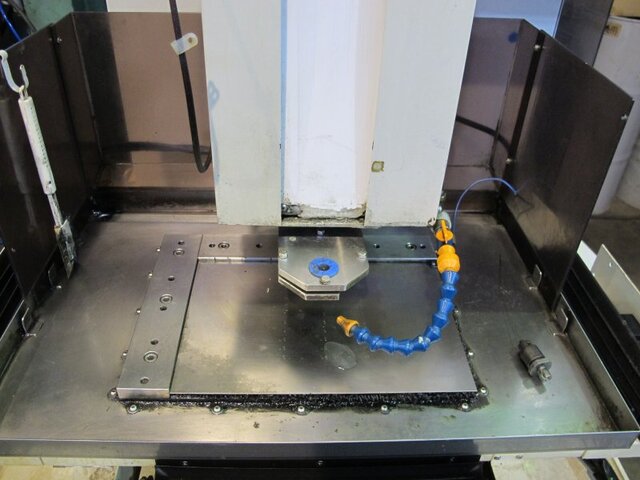

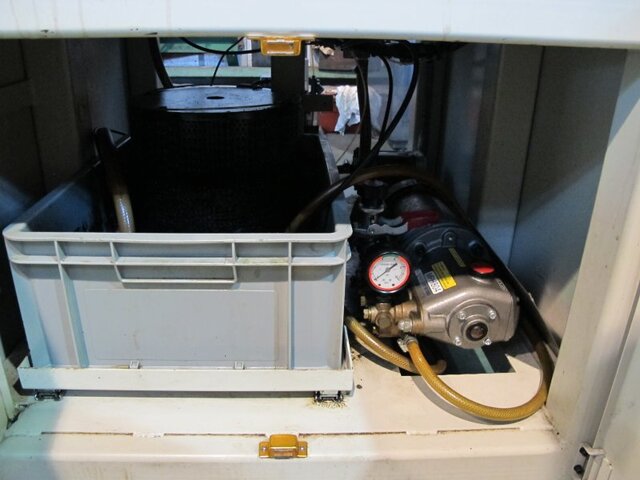

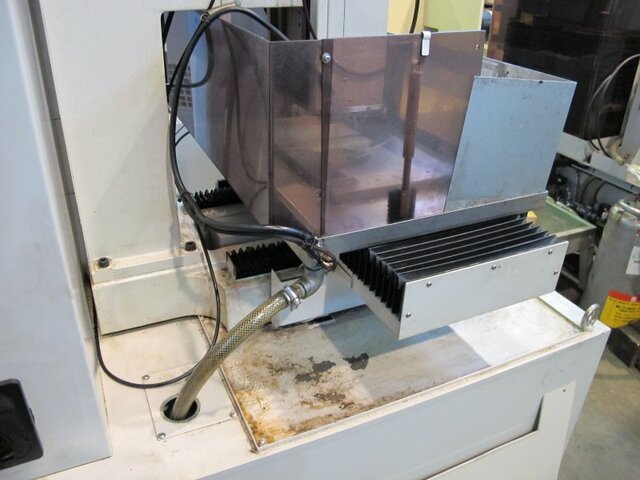

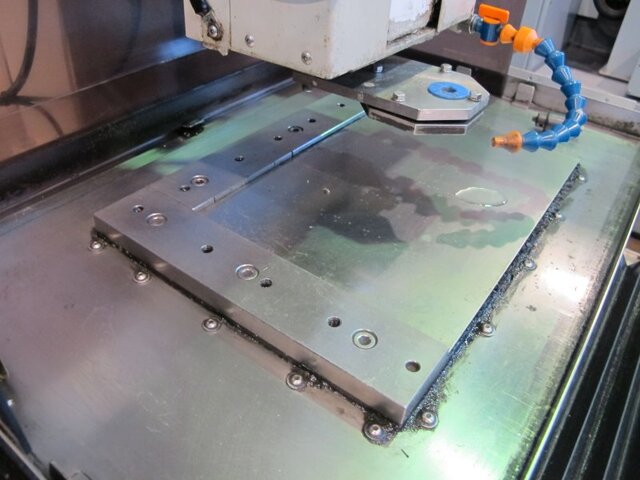

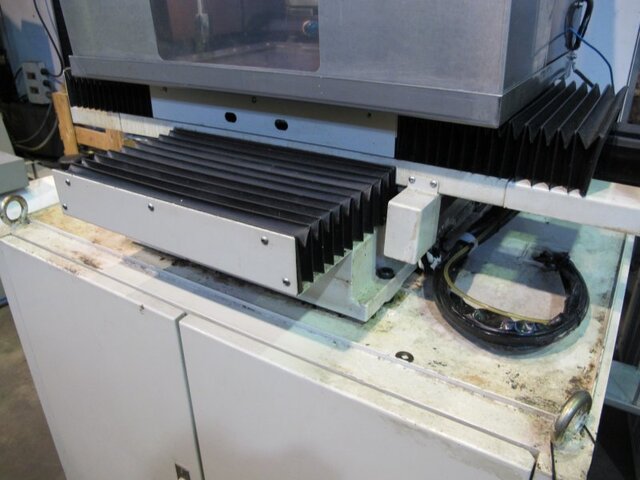

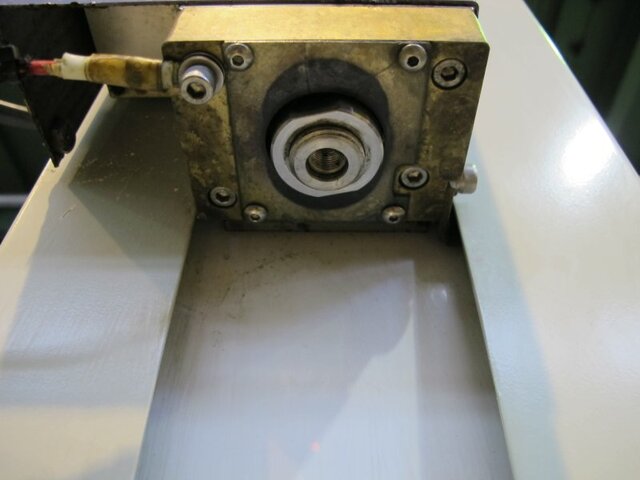

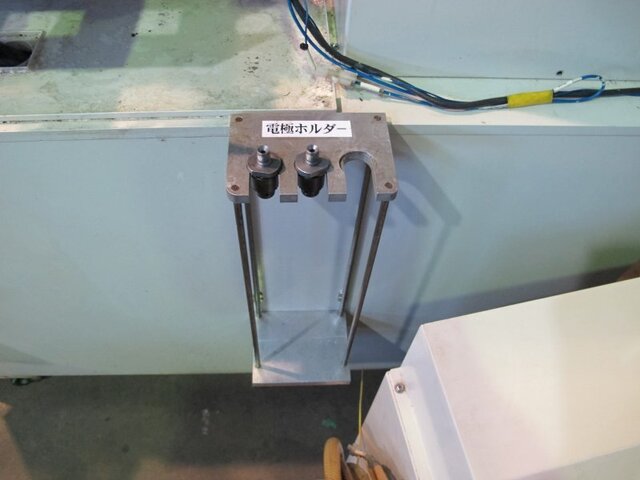

| Main Specifications | Numerical control: Mitsubishi, input method by touch panel, XYZ + cutting depth = 4-axis NC control, minimum setting unit 0.0001mm, up to 1000 machining conditions can be registered, equipped with XYZ linear scale position detection device. Travel: X-axis 300mm, table left and right, Y-axis 200mm, saddle front and back, Z-axis 200mm, spindle up and down, Z-axis servo stroke (cutting depth) 345mm. Table: Working area 400mm x 300mm, maximum allowable workpiece 150kg, maximum workpiece height 200mm. Electrode: Electrode mounting diameter φ0.2 to φ3.0mm. Tank: Machining fluid capacity 20L. Power supply: Maximum machining current (peak) 30A. Required power source: Electricity 3.5KVA. Machine size: Dimensions: Width 700mm, Depth 1000mm, Height 1850mm, Weight 500kg. |
| Location | Ibaraki |
