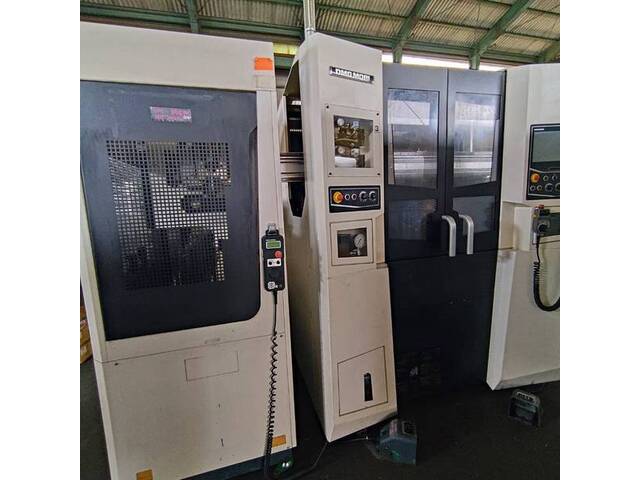

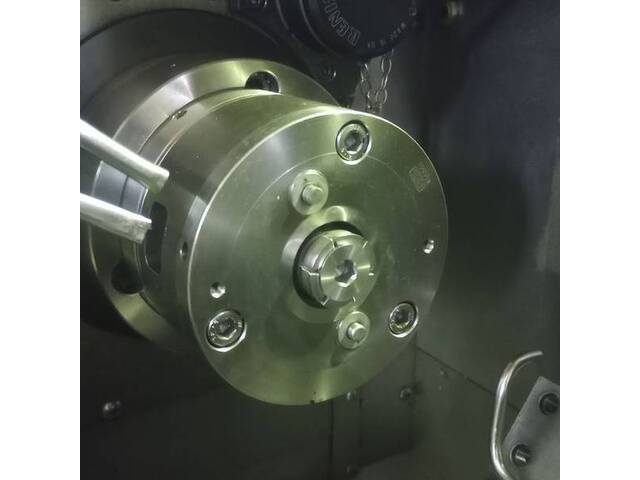

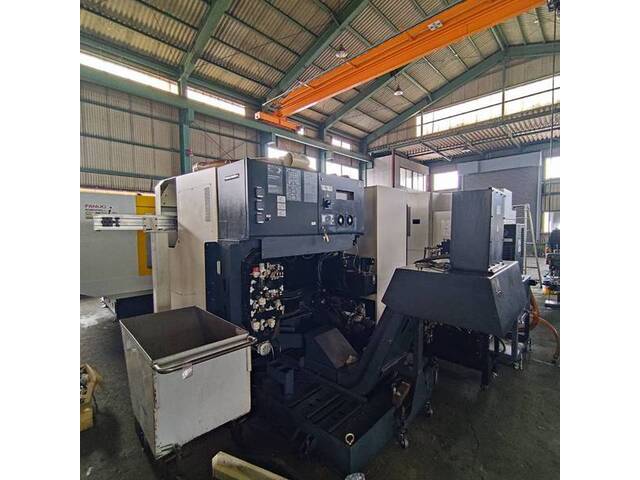

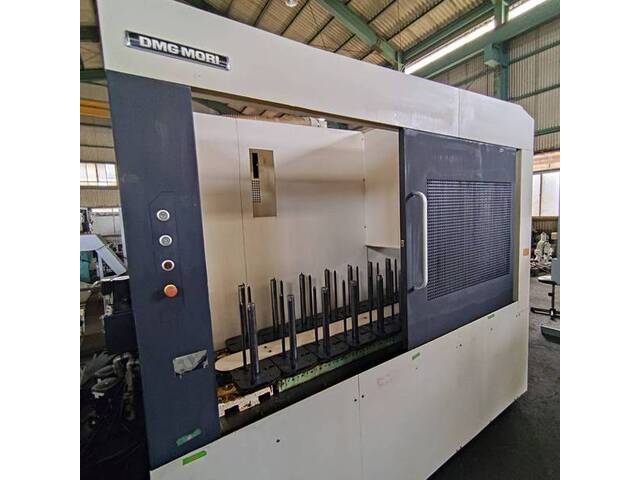

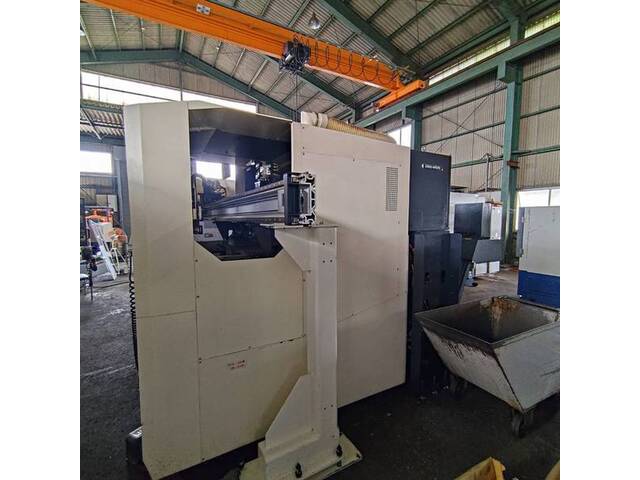

DMG MORI NRX2000MC Lathe Chuck

Lathe Chuck Work/Product Holder Publication Date: February 13, 2025 Print (Without Logo) Print (With Logo)

Company information will be disclosed upon member registration.

Stock ID	48303
Stock Code	20106077
Manufacturer	DMG MORI inventory List
Model Type	NRX2000MC
Year	2016

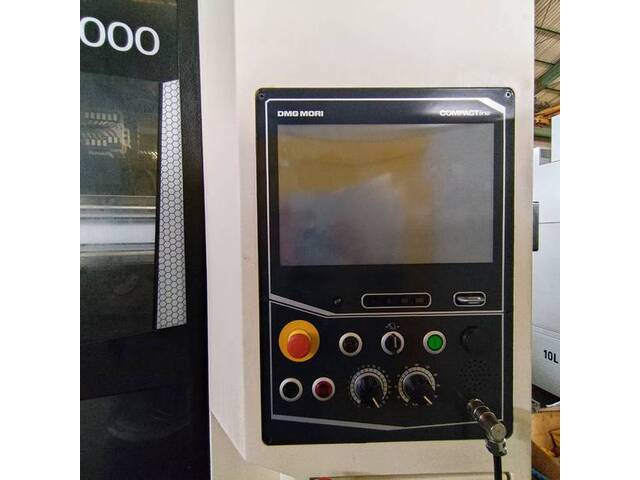

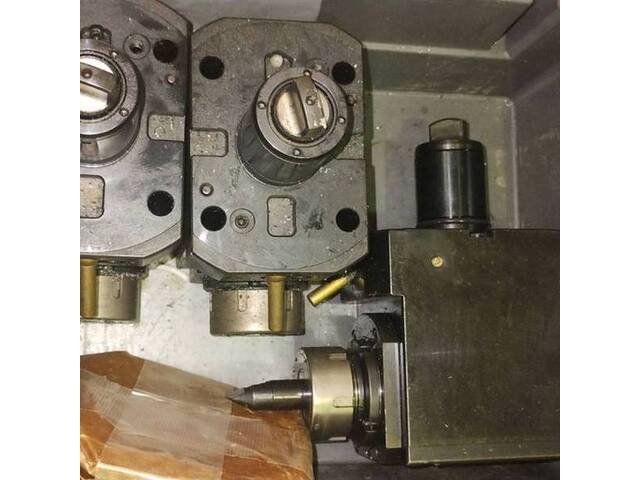

Main Specifications	◆Control device: M-730UM ◆MAPPS: MAPPSIVS ◆Operation panel type: COMPACTline (12.1) ◆Maximum swing of workpiece: 348 mm (1st, 2nd) ◆Spindle distance: 670 mm ◆Maximum machining diameter: 180 mm (1st, 2nd) ◆Standard machining diameter: 120 mm (1st, 2nd) ◆Maximum machining length: 100 mm (1st, 2nd) ◆X-axis travel: 100 mm (1st, 2nd) ◆Z-axis travel: 220 mm (1st, 2nd) ◆Number of spindles: 2 ◆Maximum spindle rotation speed: up to 6000 min-1 (1st, 2nd) ◆Number of spindle speed change ranges: 1 stage (1st, 2nd) ◆Spindle end shape: JIS A2-5 (1st, 2nd) ◆Spindle through hole diameter: 61 mm (1st, 2nd) ◆Spindle bearing inner diameter: 100 mm (1st, 2nd) ◆Number of tool rests: 2 ◆Type of tool post: 10-sided turret (1st, 2nd) ◆Number of tools that can be mounted on the tool post: 10 (1st, 2nd) ◆Height of shank part of square tool bit: 20mm (1st, 2nd) ◆Diameter of shank part of boring bar: Maximum 32mm (1st, 2nd) ◆Indexing time of 10-sided tool post (1 station): 0.31 seconds (1st, 2nd) (full tool) ◆Rotating tool spindle rotation speed: 10,000min-1 _If there are any differences between the specifications and the actual product, the actual product will take precedence.
Location	Mie Prefecture
Viewing Status	Consultation
Test Run Status	Consultation
