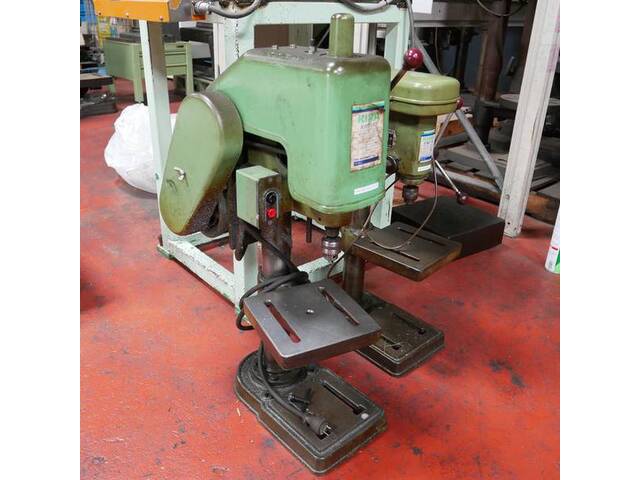

吉良鉄工 KRT-10 Desktop Drilling Machine

Desktop Drilling Machine Drilling Machine Publication Date: February 13, 2025 Print (Without Logo) Print (With Logo)

Company information will be disclosed upon member registration.

Stock ID	47944
Stock Code	21821208
Manufacturer	吉良鉄工
Model Type	KRT-10
Year	Unknown
Main Specifications	◆Swing: 254mm ◆Tapping capacity: Steel 1-5mm, Cast iron 1-6mm ◆Maximum distance between spindle and table: 298mm ◆Maximum distance between spindle and base: 392mm ◆Up and down movement of spindle: Tapping 40mm ◆Taper of spindle end: JTNo.1 ◆Column diameter: 60Φ ◆Table size: 196□ ◆Up and down movement of table: 250mm ◆Spindle rotation speed (rpm): 50Hz Cutting 480・850 / Return 580・1050 60Hz Cutting 580・1050 / Return 700・1250 ◆Motor: 200W 4P ◆V-belt dimensions: K-57 ◆Total height of machine: 813mm ◆Base size (front to back x left to right): 362×210mm ◆Weight of machine: 45kg ◆Spindle-related bearings: Oil-impregnated bearings. In the event of any discrepancies between the specifications and the actual product, the actual product will take precedence.
Location	Mie Prefecture
Viewing Status	Consultation
Test Run Status	Consultation
