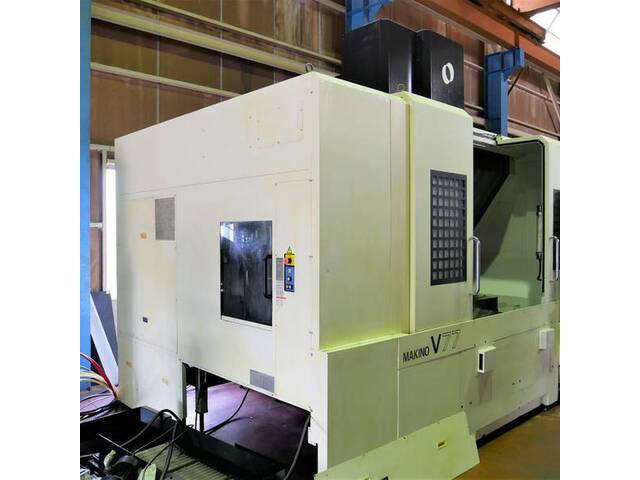

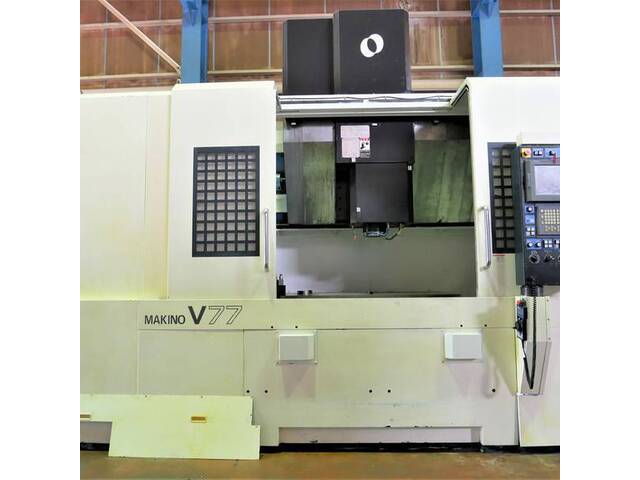

MAKINO V-77 Vertical Machining Center

Vertical Machining Center Machining Center - NC Publication Date: February 13, 2025 Print (Without Logo) Print (With Logo)

Company information will be disclosed upon member registration.

Stock ID	47797
Stock Code	20302112
Manufacturer	MAKINO inventory List
Model Type	V-77
Year	2005

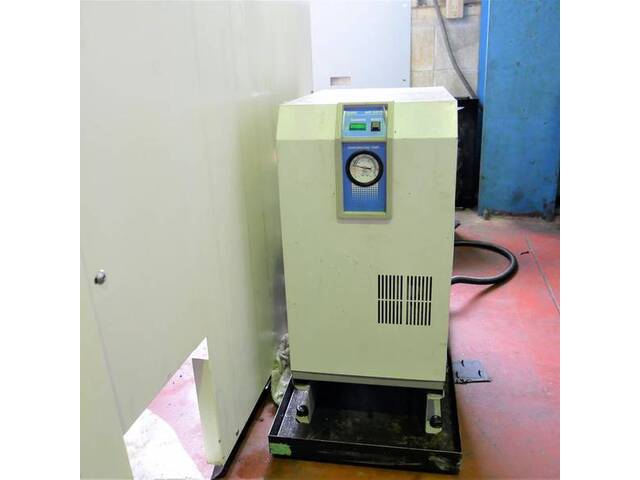

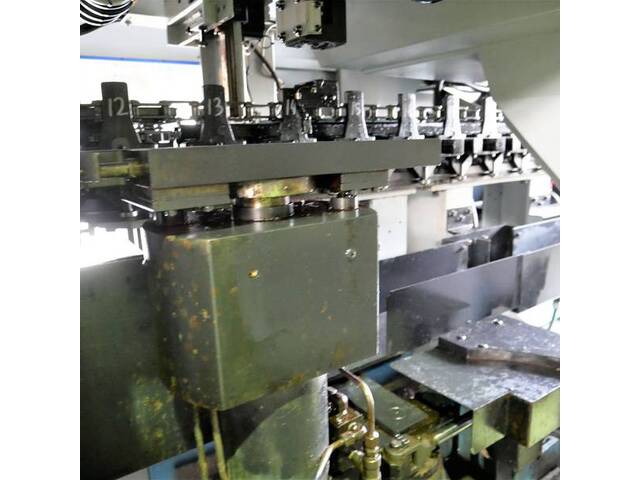

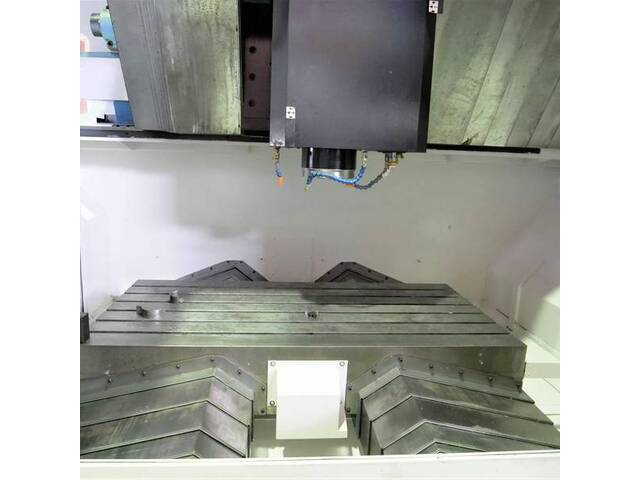

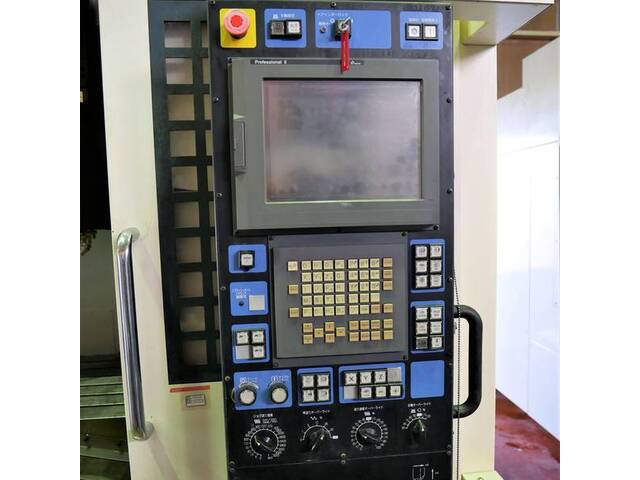

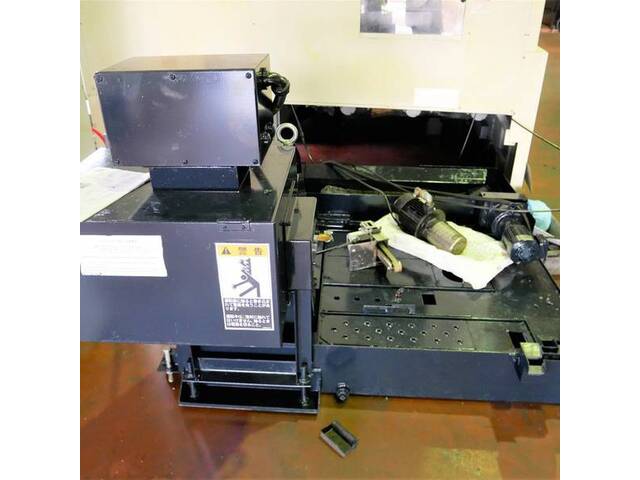

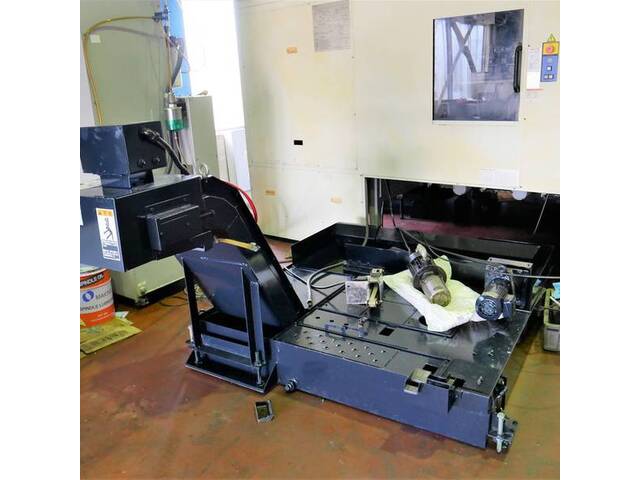

Main Specifications	◆Professional5 ◆Travel: X1200×Y700×Z650 ◆Spindle: HSK-A63 ◆Spindle speed: 50-20000min-1 ◆Bull stud: MAS403 P40T1 type ◆Number of tools stored: 30 ◆Tool selection method: Address fixed indexing method ◆Maximum tool dimensions (diameter x length): Φ120×300Ω ◆Maximum tool mass: 8Ω ◆Table: 1400×700Ω ◆Maximum load mass on table (even distribution): 2500Ω ◆Table top height: 850Ω ◆Minimum setting unit: 0.0001Ω ◆Jog feed speed: 0-4000Ω/min ◆Cutting feed speed: 1-20000Ω/min ◆Fast forward speed: 20000Ω/min ◆Cutting fluid supply device ◆Total tank capacity (lift-up conveyor): 345L ◆Spindle drive: 15kw (spindle taper No. 40 specification) ◆Machine dimensions: W3800×D3000×H3300Ω ◆Spindle temperature controller: 1100×820Ω ◆Mass: 16000Ω ◆Positioning accuracy (total length): ±0.002Ω, ±0.0015 (with scale) ◆Spindle front bearing inner diameter: Φ80Ω _If there are any differences between the specifications and the actual product, the actual product will take precedence.
Location	Mie Prefecture
Viewing Status	Consultation
Test Run Status	Consultation
