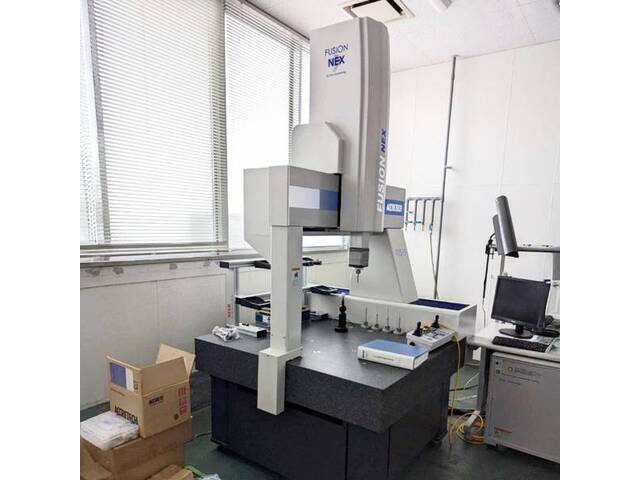

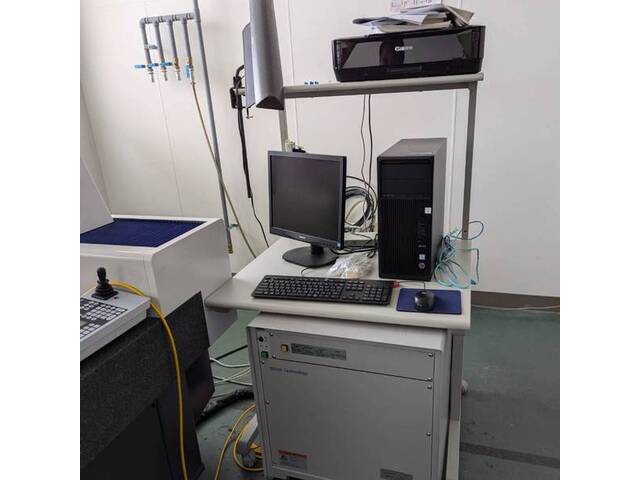

TOKYO SEIMITSU XYZAX FUSIONNEX7/5/5 Measuring & Inspection

Measuring & Inspection Publication Date: February 13, 2025 Print (Without Logo) Print (With Logo)

Company information will be disclosed upon member registration.

Stock ID	47335
Stock Code	21102006
Manufacturer	TOKYO SEIMITSU inventory List
Model Type	XYZAX FUSIONNEX7/5/5
Year	2017
Main Specifications	◆Measurement range XYZ: 650 x 500 x 450 ◆Measuring scale: Linear scale system ◆Minimum display 0.01 ◆Table material: Gabbro ◆Table specifiable width (X): 800 ◆Table specifiable depth (Y): 1270 ◆Table height from floor: 725 ◆Table flatness: JIS Class 1 ◆Maximum height of measured object: 620 ◆Maximum weight of measured object: 400 ◆Drive speed Maximum acceleration: 1200mm/s2 ◆Speed variable range CNC measurement mode: 0.01 to 425, joystick mode: 0 to 120 ◆Guide method for each axis: Air bearing ◆Air source Supply pressure/Operating pressure: 0.49 to 0.69/0.39 ◆Voltage: AC100±10 (earth grounding required) ◆External dimensions: W1415×D1440×H2458 ◆Weight: 1450 _In the event of any discrepancies between the specifications and the actual product, the actual product will take precedence.
Location	Mie Prefecture
Viewing Status	Consultation
Test Run Status	Consultation
