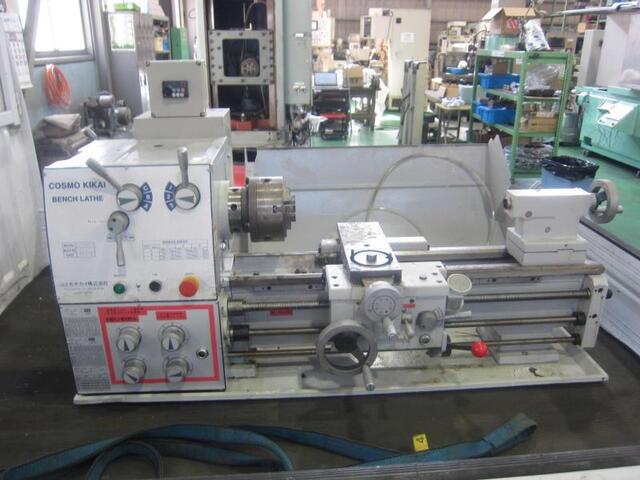

コスモキカイ L-6800 Desktop Lathe

Desktop Lathe Lathe - Manual Publication Date: March 30, 2026 Print (Without Logo) Print (With Logo)

Company information will be disclosed upon member registration.

Stock ID	87057
Stock Code	Y1950
Manufacturer	コスモキカイ
Model Type	L-6800
Year	2018
Main Specifications	1. Machining Capacity Swing over bed: 300mm (gap: 430mm), Swing over carriage: 178mm, Center distance: 660mm, Bed width: 181mm 2. Spindle (Headstock), Spindle through-hole diameter: 38mm, Spindle taper: MT5, Spindle speed control: 9 speeds (gear speed control), Spindle speed (60Hz): 85/230/250/300/420/700/910/1150/1500 rpm 3. Feed and Threading Automatic feed: Both vertical and horizontal feed standard, Horizontal automatic feed (left and right): 0.02 to 0.79mm (40 types), Vertical automatic feed (front and back): 0.01 to 0.26mm (40 types), Metric threading: 0.2 to 4.5mm (29 types), Inch threading: 4 to 112 threads/inch (40 types) 4. Tailstock Tailstock taper: MT3, Sleeve travel distance: 100mm 5. Motor and power supply Standard motor: Three-phase 200V/1.5kW/4P, Optional: Single-phase 100V/1.0kW/4P 6. Machine dimensions and weight Overall length: 1,470mm, Overall width: 710mm, Overall height: 590mm, Total weight: Approx. 370kg
Location	Yamanashi Prefecture
Viewing Status	Consultation
Test Run Status	Consultation
