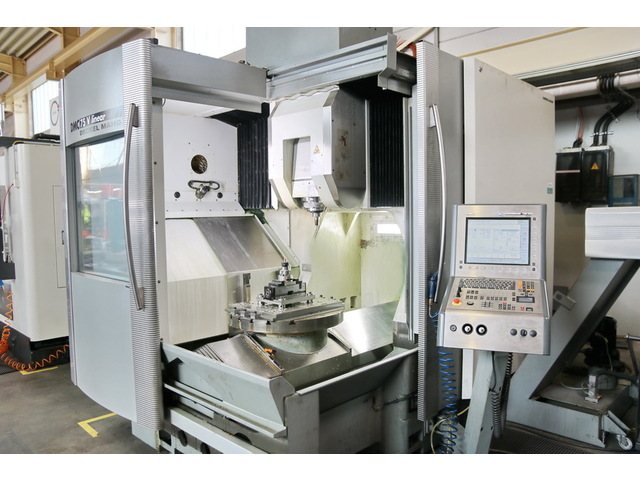

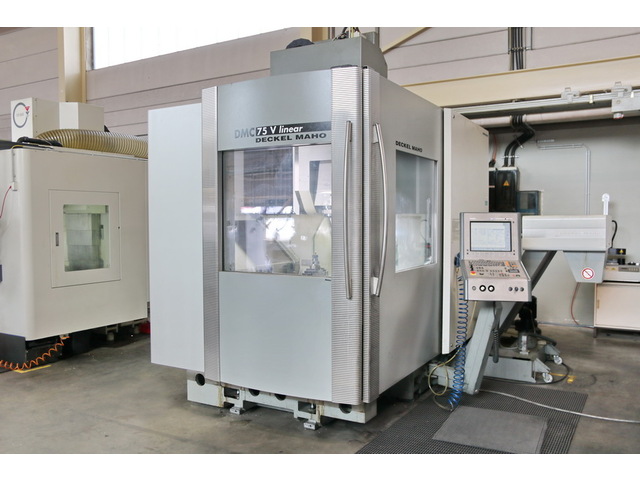

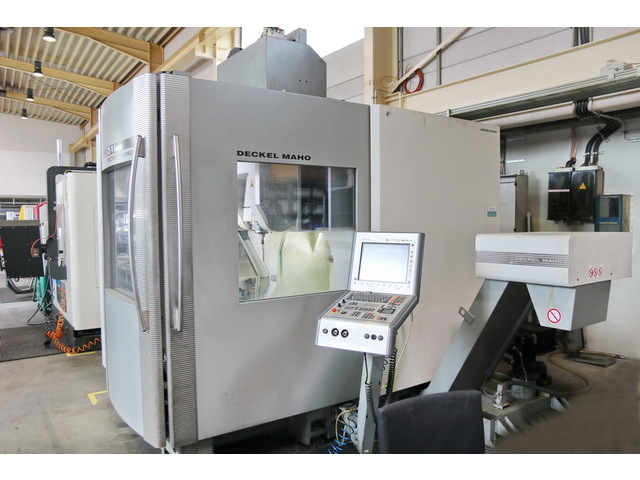

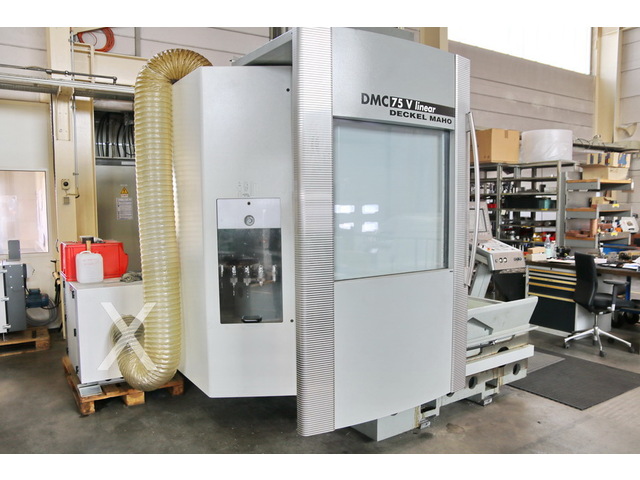

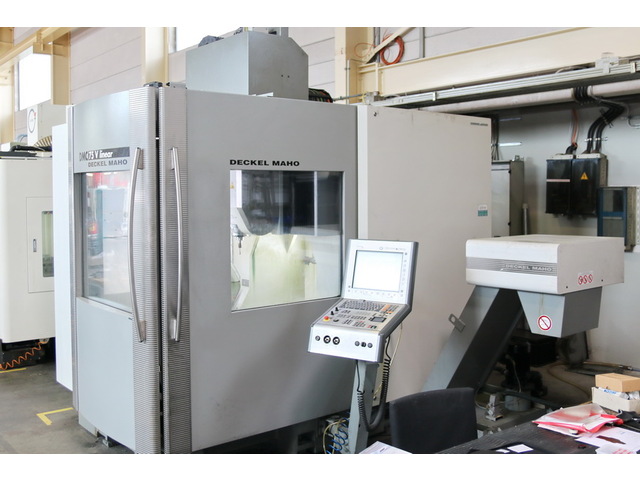

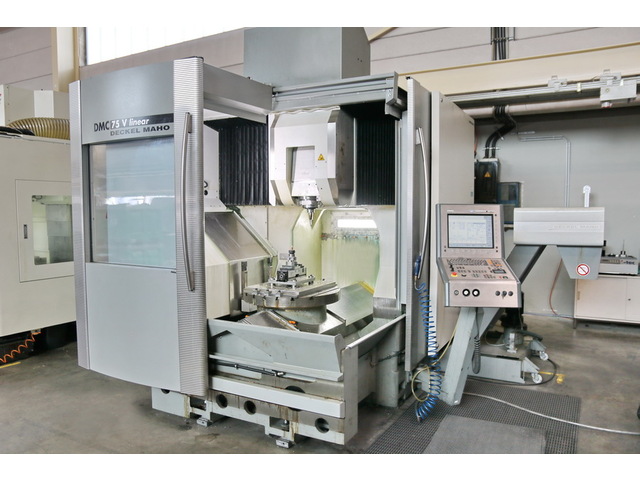

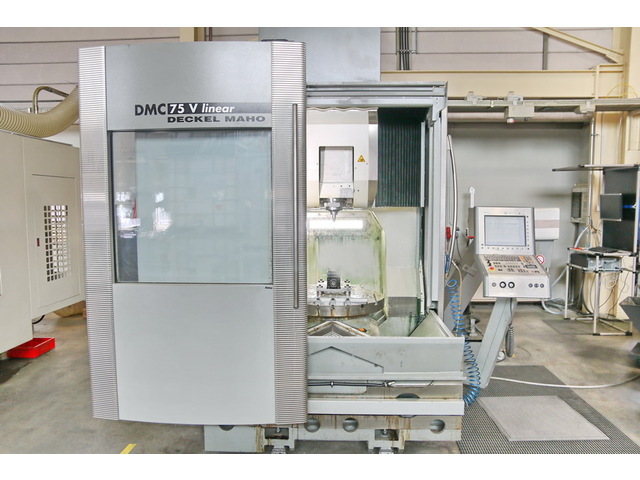

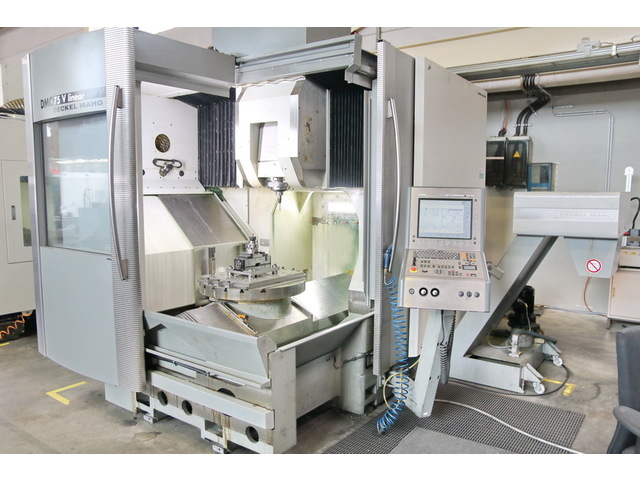

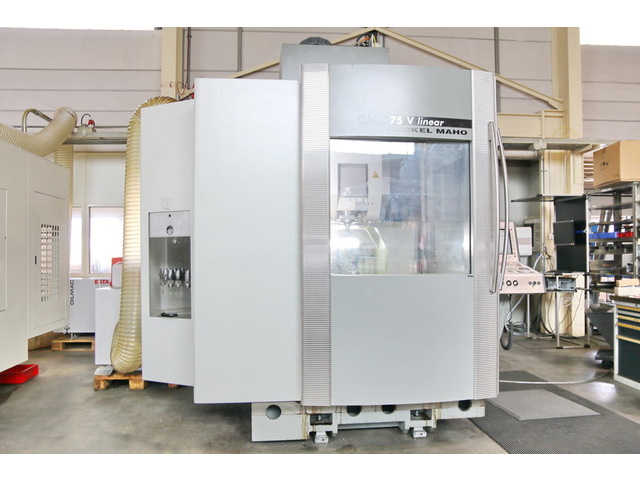

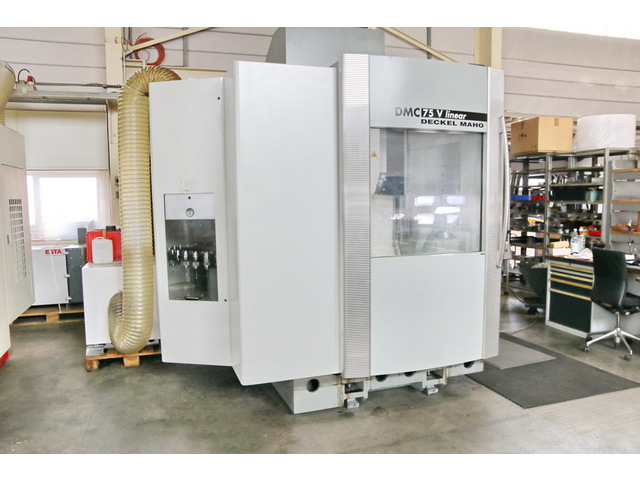

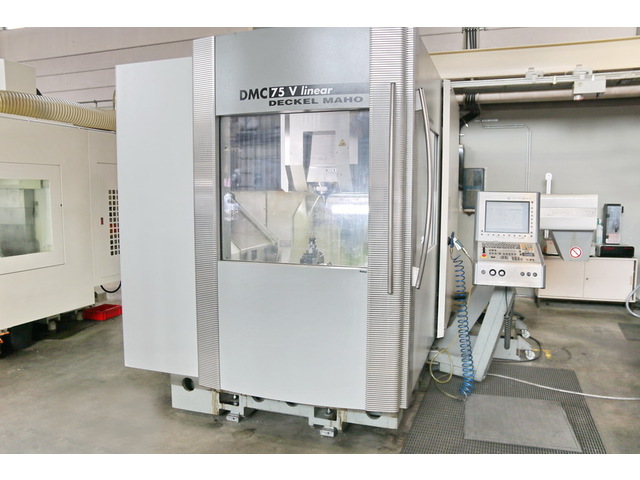

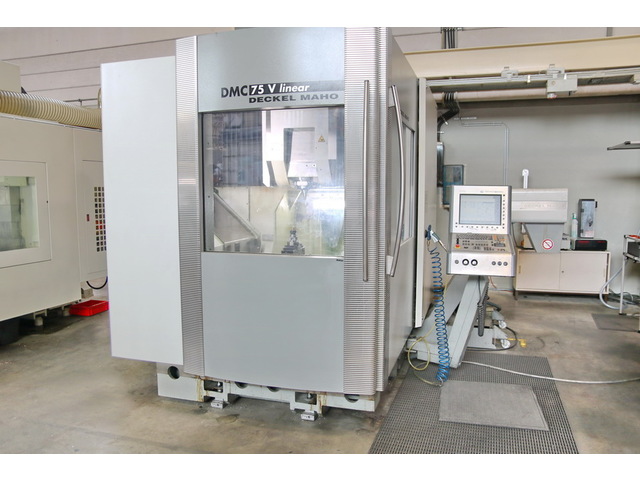

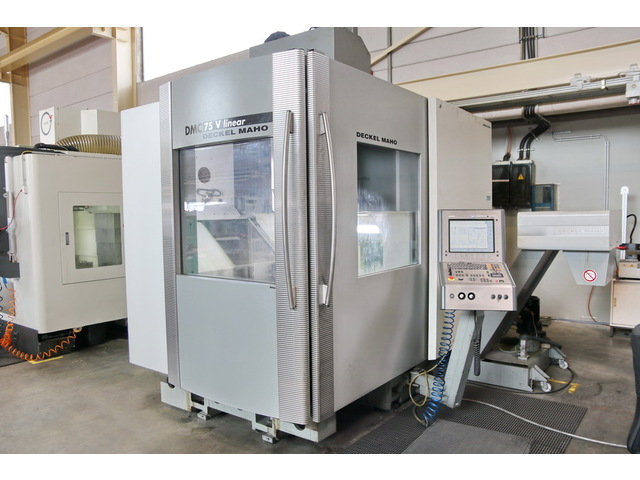

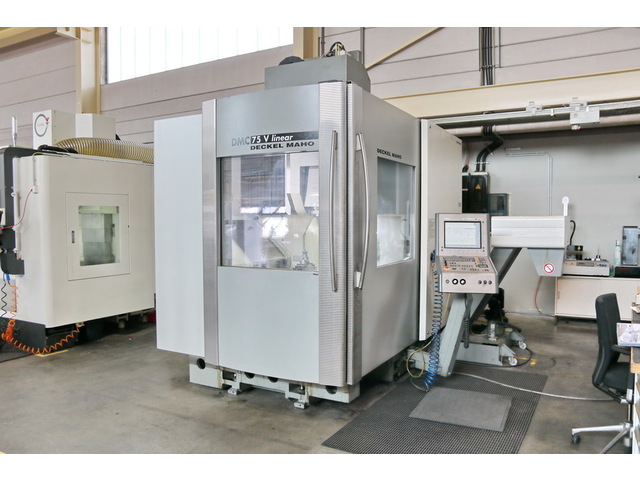

DECKEL MAHO DMC 75 V linear Vertical Machining Center

Vertical Machining Center Machining Center - NC Publication Date: September 24, 2025 Print (Without Logo) Print (With Logo)

Company information will be disclosed upon member registration.

Stock ID	78705
Stock Code	1039-9181
Manufacturer	DECKEL MAHO inventory List
Model Type	DMC 75 V linear
Year	2007

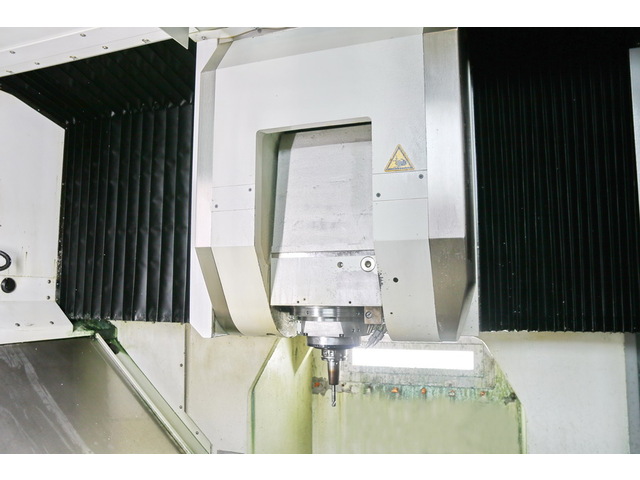

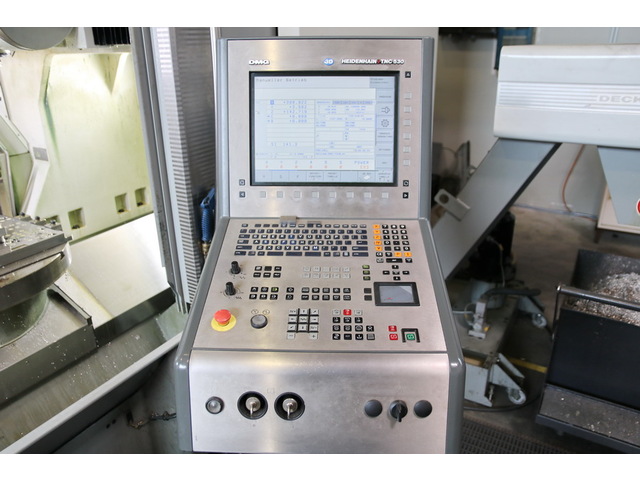

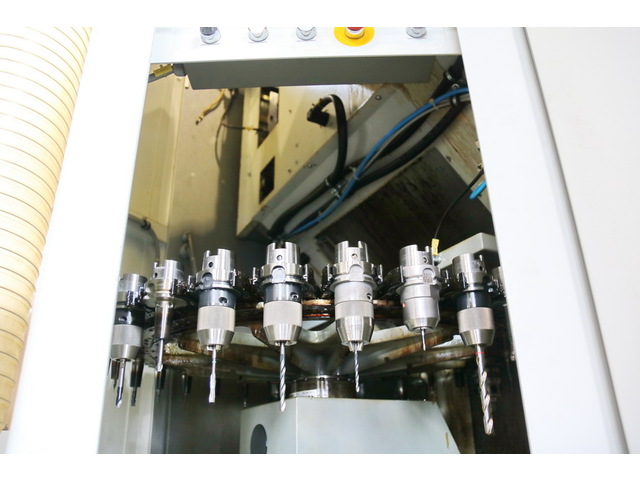

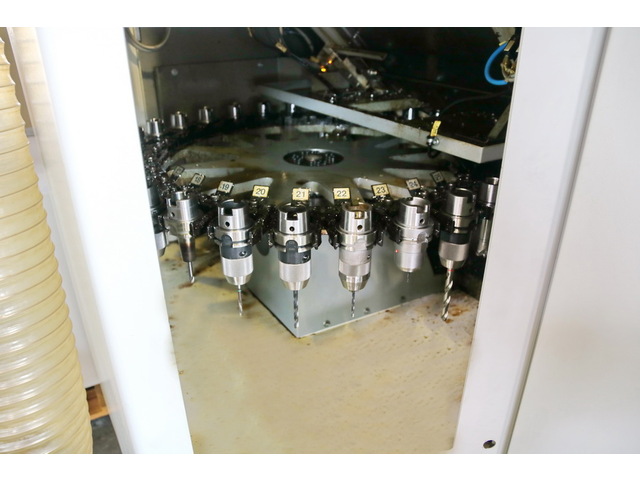

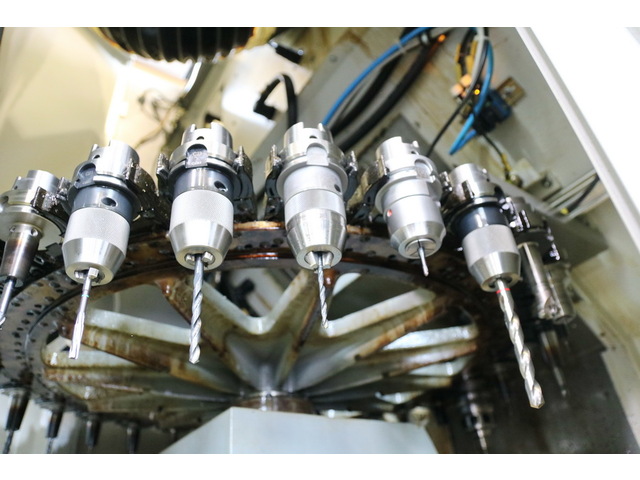

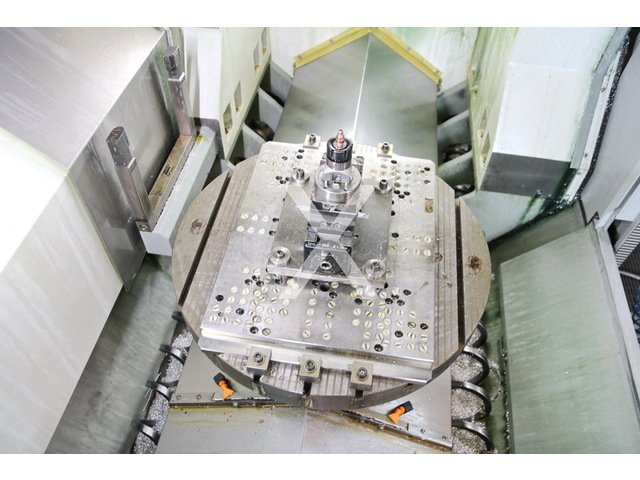

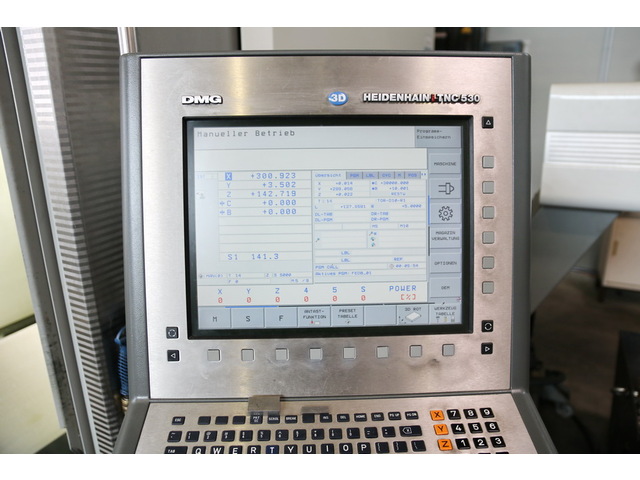

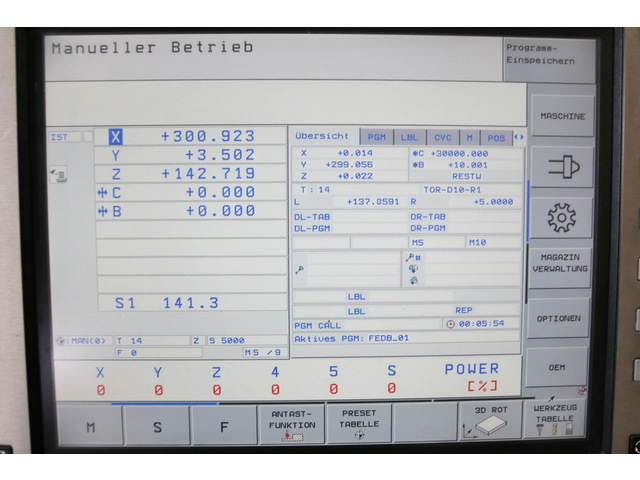

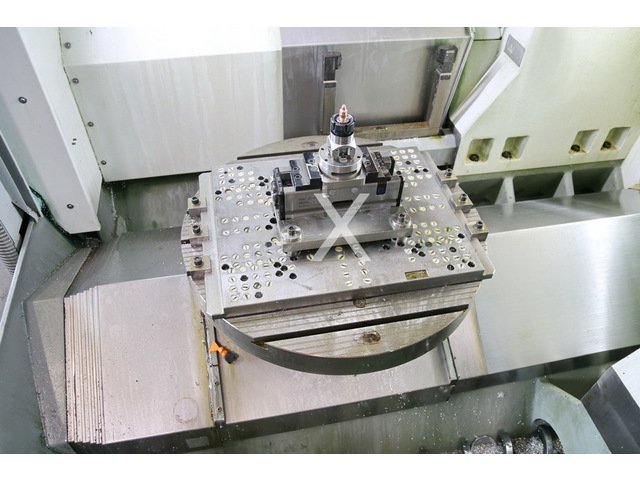

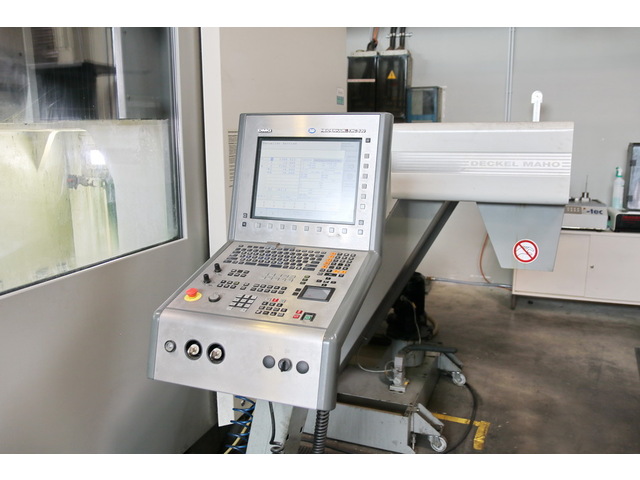

Main Specifications	CNC-Machining Center Vertical DECKEL MAHO - DMC 75 V linear - 5-Axis-Machining - NEW SPINDLE from 12/2022 ! - Swiveling Milling Spindle (-10° / 110°) - Rotary Table 360° - extensive tool package - only approx. 900 spindle hours (after exchange) - WITHOUT clamping devices, WITHOUT exhaust! \| x-travel: 885 mm \| y-travel: 600 mm \| z-travel: 600 mm \| control: iTNC 530 Heidenhain \| Max. rpm: 1 - 28.000 min/-1 \| power capacity - main spindel: 35 / 25 kW \| max. Torque: 119 / 85 Nm \| tool taper: HSK A63 \| Swivel range milling spindle: B: -10° / +110° ° \| spindle bearing diameter: 80 mm \| table diameter: 750 mm \| rotation range: C: 360 ° \| rotary speed: max. 100 min/-1 \| max. table load: 600 kg \| feed speeds: 1 - 90.000 mm/min \| rapid traverse: 90 m/min \| Feed force: Z: 10,35 kN \| number of toolpositions: 30 pos. \| max. tool diameter: 80 mm \| max. tool-dia with free toolbox: 140 mm \| max. tool length: 300 mm \| max. tool weight: 10 kg \| max. workpiece height: 460 mm \| Max. Workpiece Area: ca. 750 x 600 mm \| passage: max. 600 mm \| total power requirement: 60 kVA \| weight of the machine ca.: 12 t \| dimensions of the machine ca.: 4,5 x 4,5 x 3,0 m \| test probe: Heidenhain TS 640 \| tool holders: ca. 64 pos.
Location	Mittelweg 92 59302 Oelde Germany
Viewing Status	Consultation
Test Run Status	Consultation
