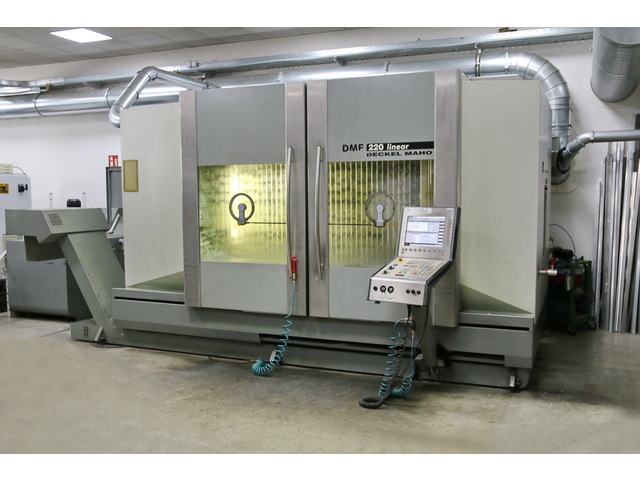

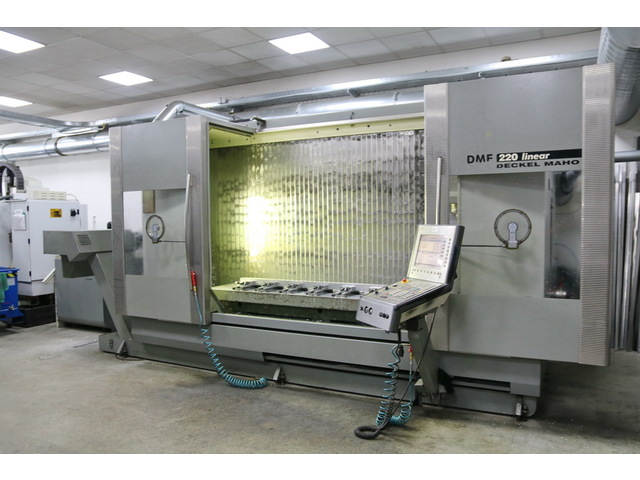

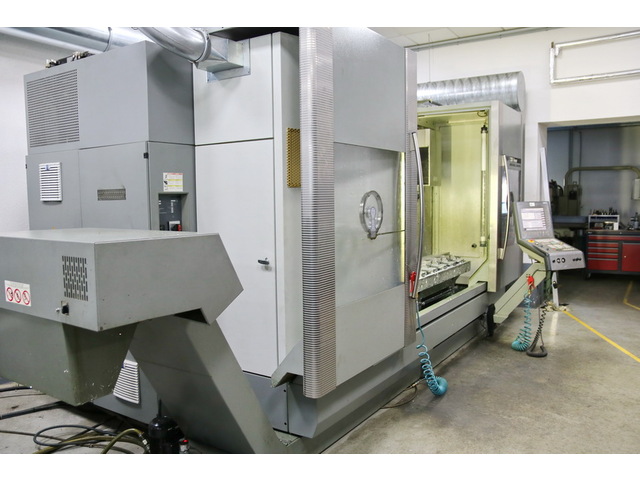

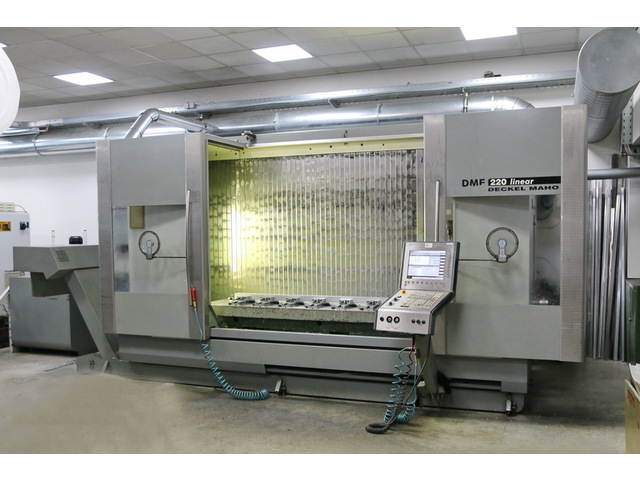

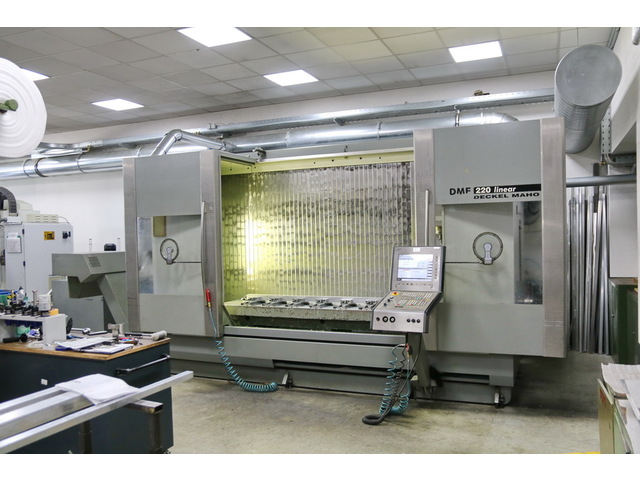

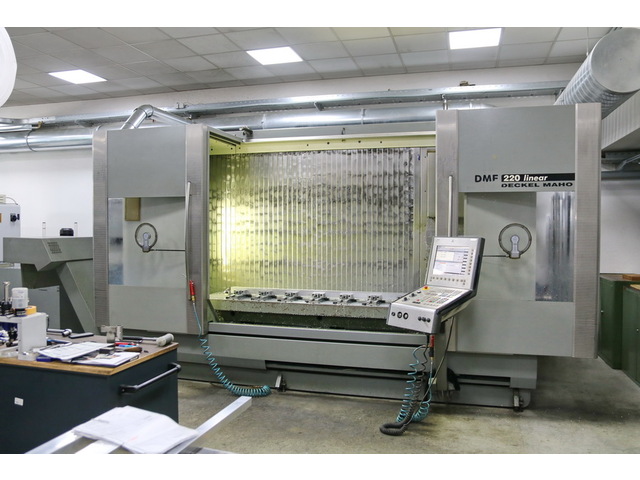

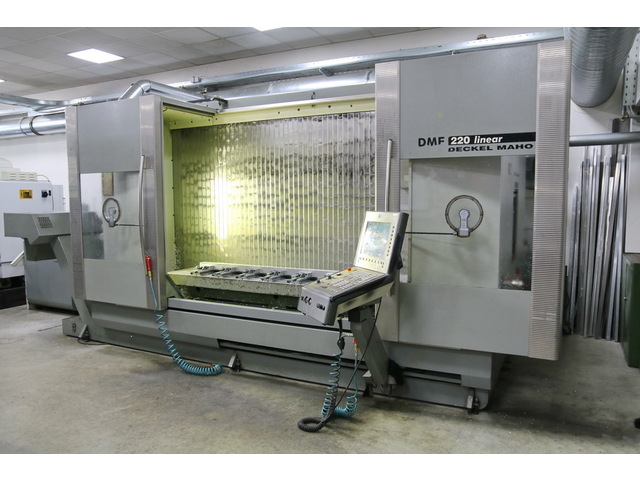

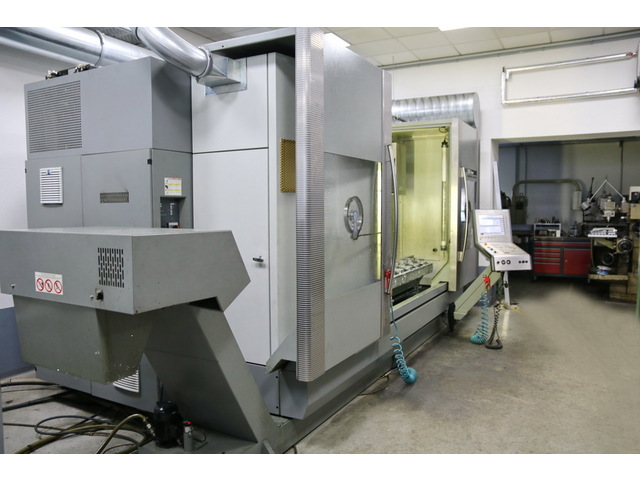

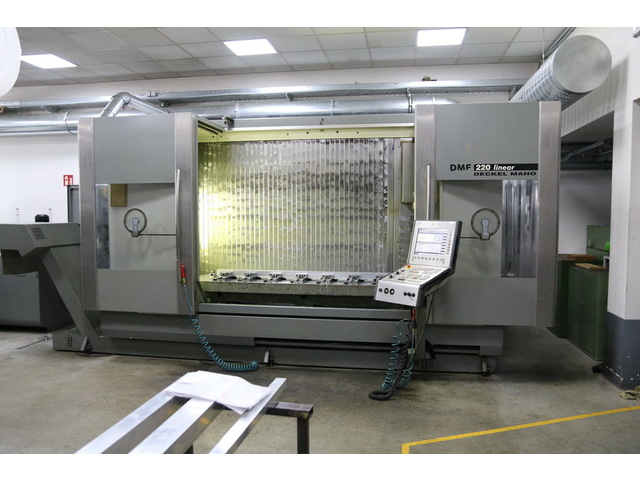

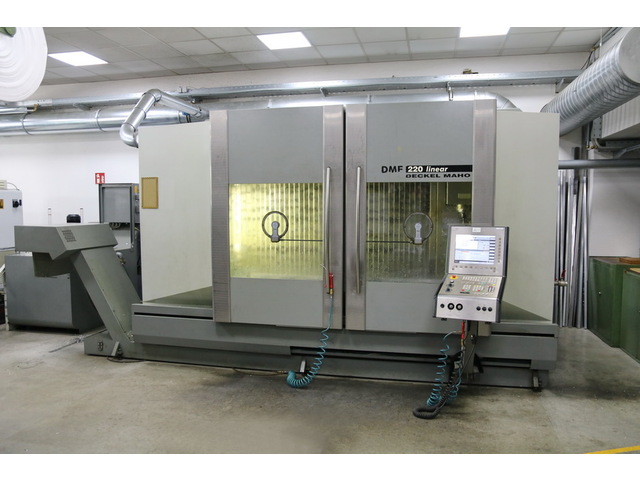

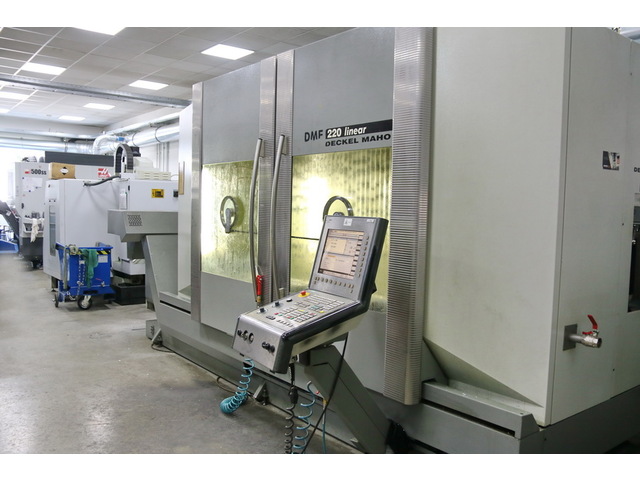

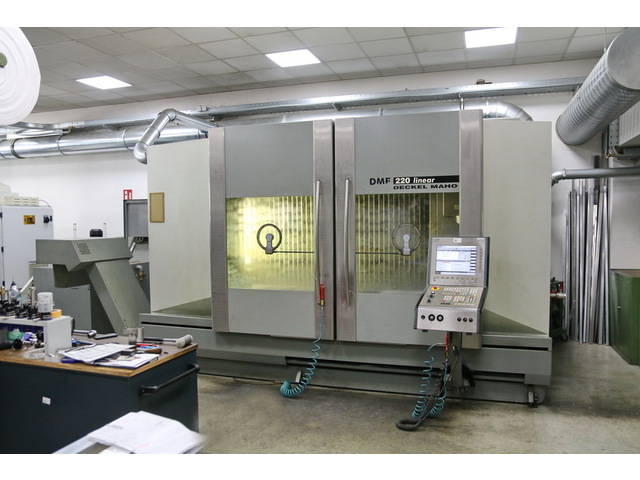

DECKEL MAHO DMF 220 linear Vertical Machining Center

Vertical Machining Center Machining Center - NC Publication Date: September 24, 2025 Print (Without Logo) Print (With Logo)

Company information will be disclosed upon member registration.

Stock ID	78704
Stock Code	1039-9078
Manufacturer	DECKEL MAHO inventory List
Model Type	DMF 220 linear
Year	2002

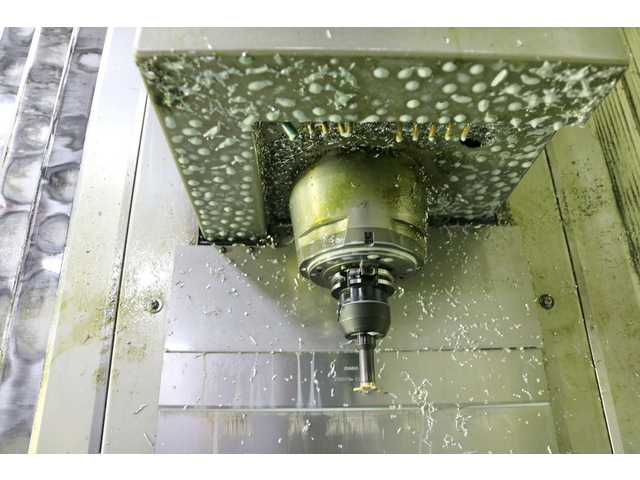

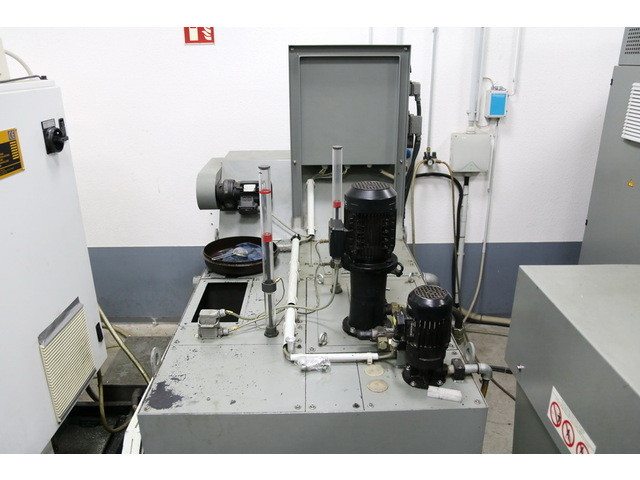

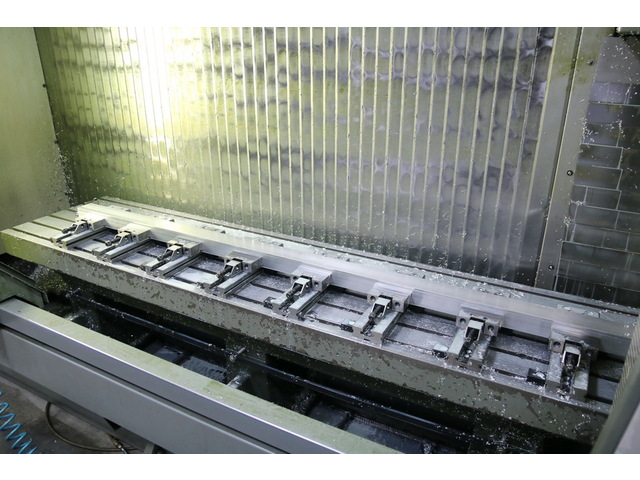

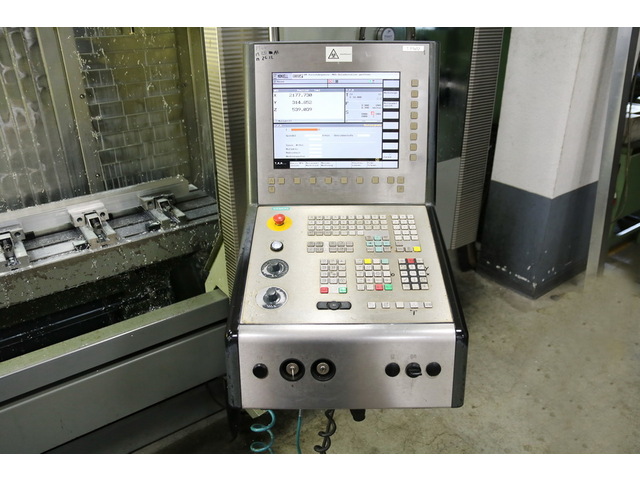

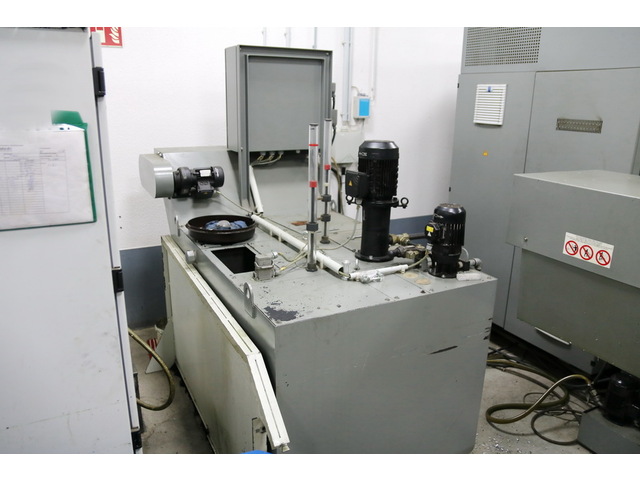

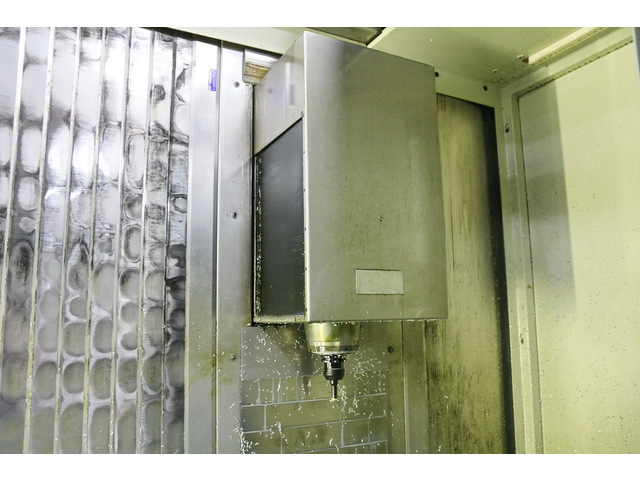

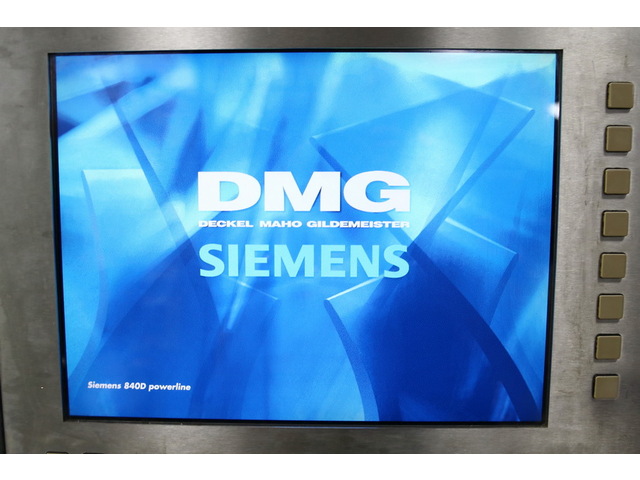

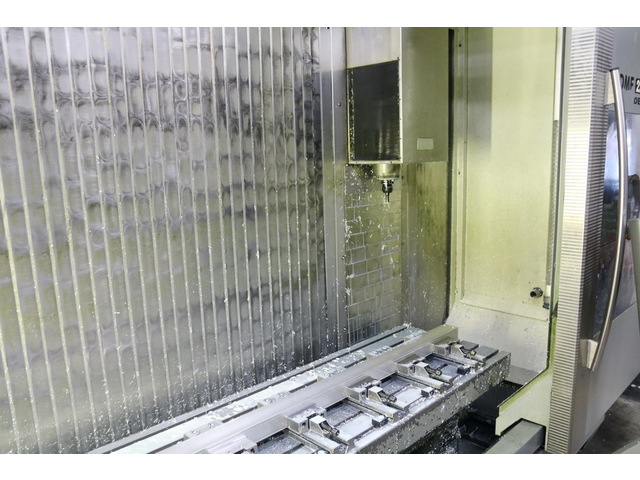

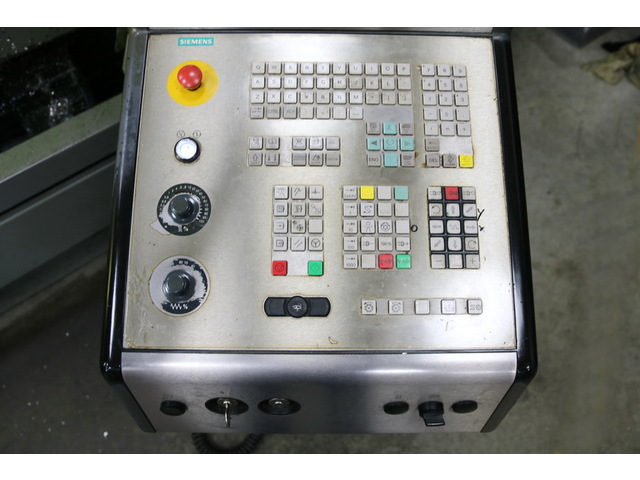

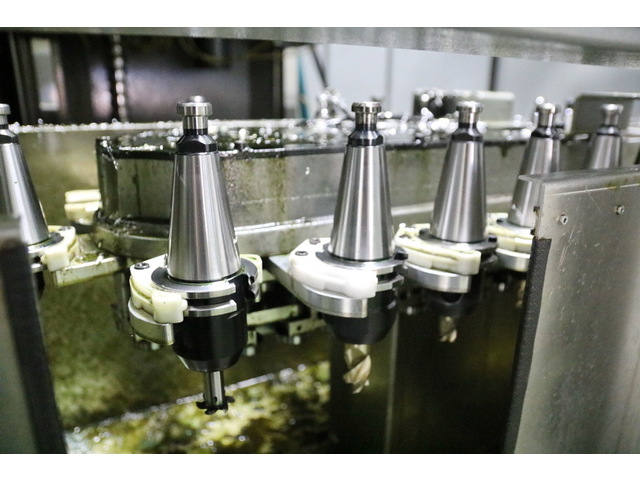

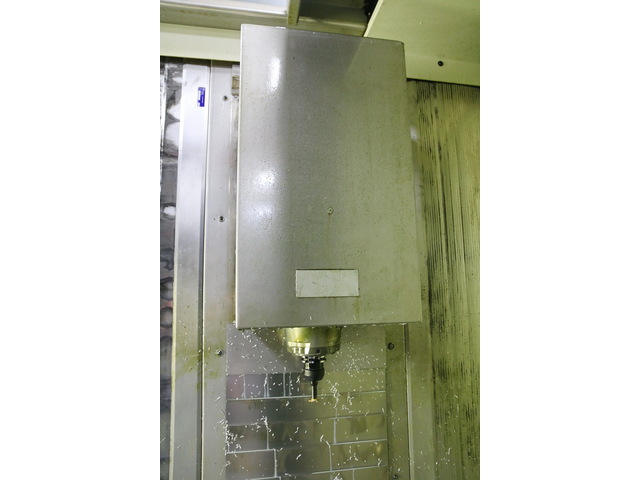

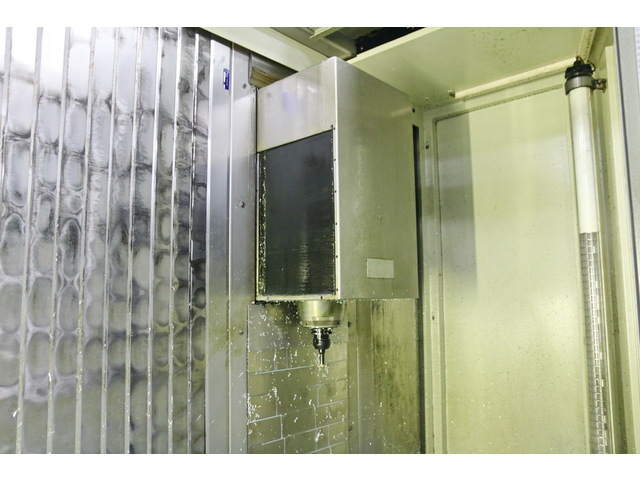

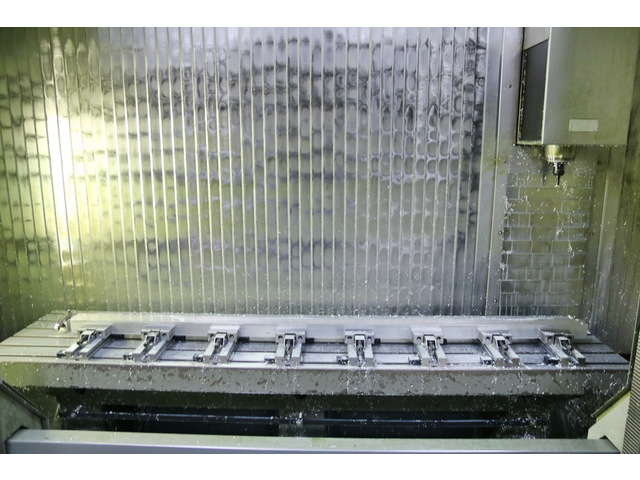

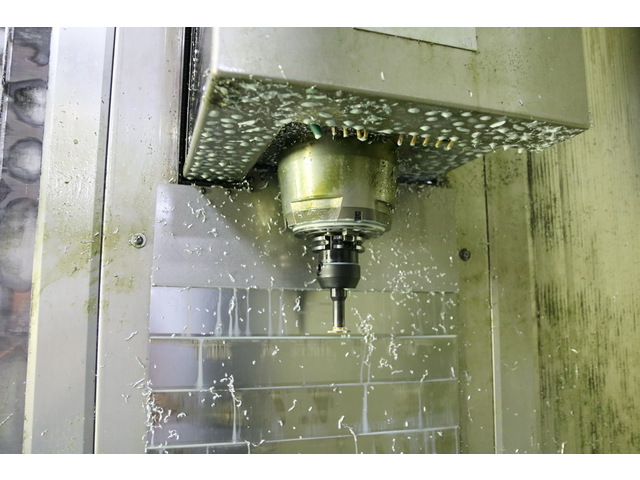

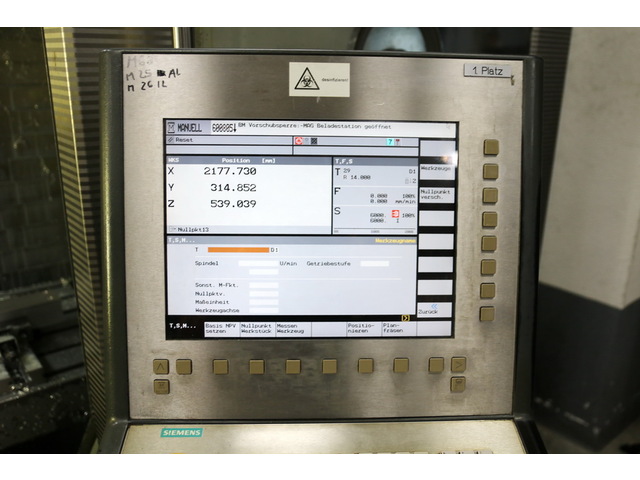

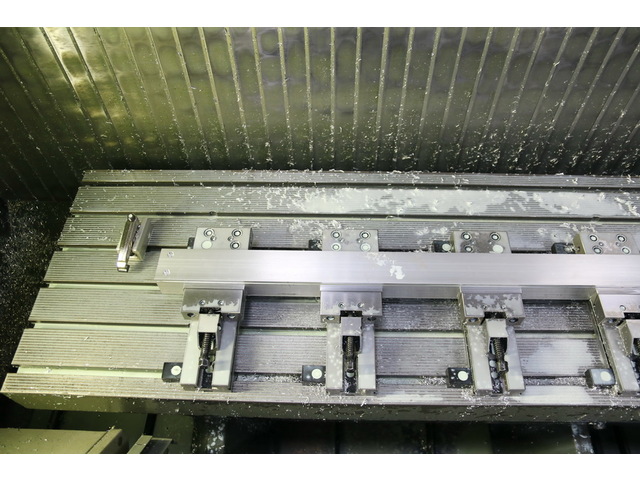

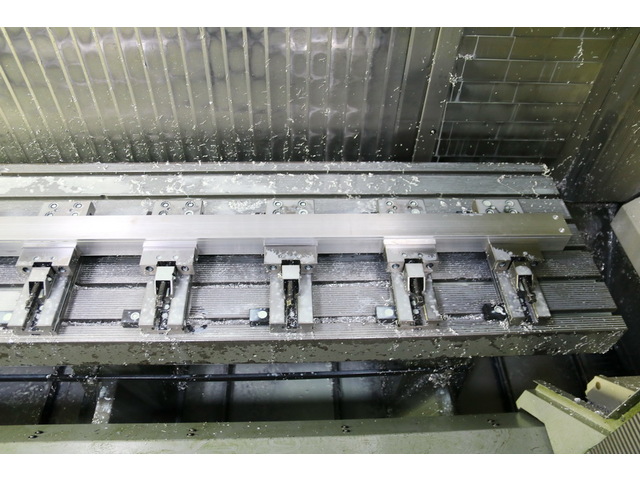

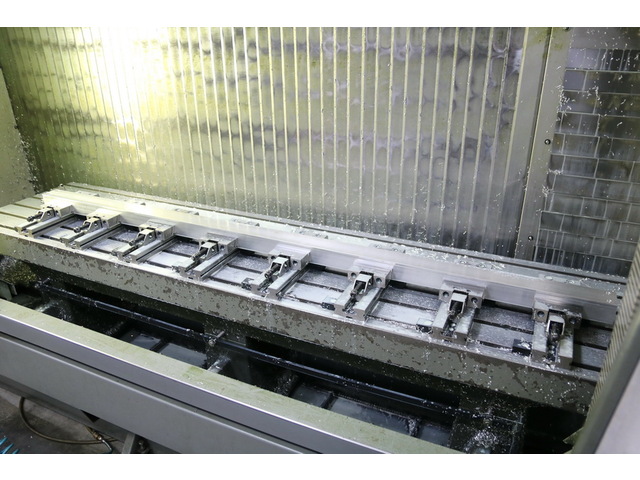

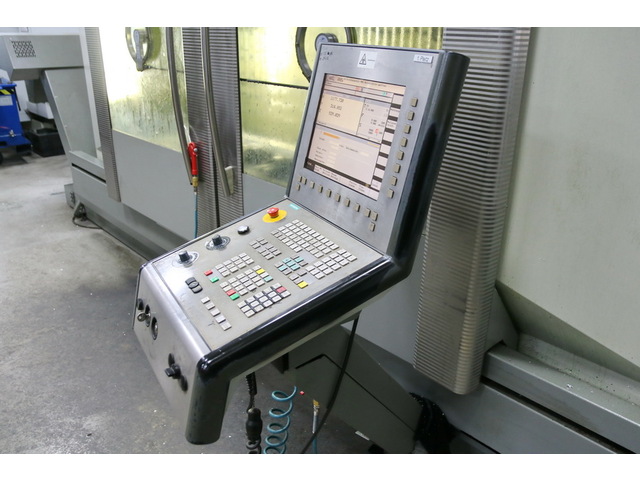

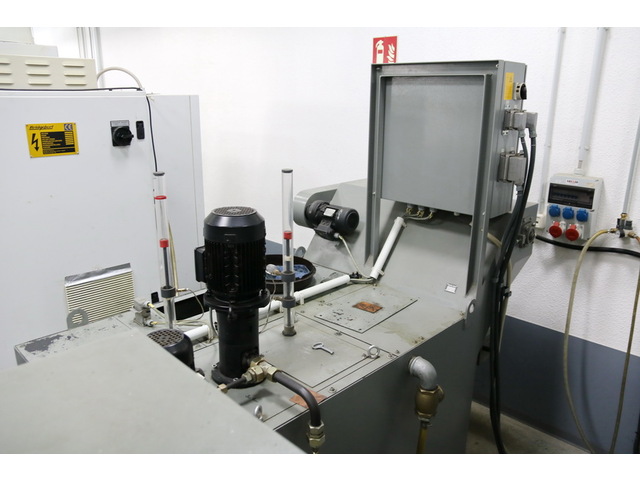

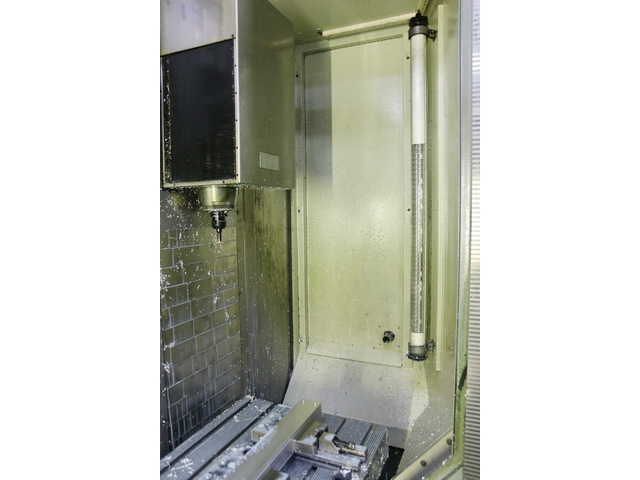

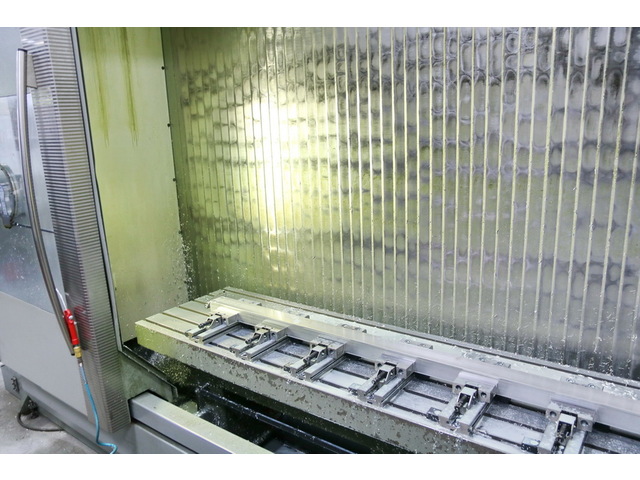

Main Specifications	CNC - Machining Center Vertical DECKEL MAHO - DMF 220 linear - from individual part production (aluminium, brass and stainless steel) - incl. workroom wall - M26 function (switching to blown air through spindle center) - new ball screw Z-axis incl. bearing (April 2015) - new milling spindle (2016) - Spindle hours: ca. 11,966 h - WITHOUT vices \| x-travel: 2.200 mm \| y-travel: 560 mm \| z-travel: 720 mm \| control: 840 D Powerline ShopMill Siemens \| turning speed range - main spindle: 20 - 12.000 min/-1 \| power capacity - main spindel: 35 / 25 kW \| max. Torque: 130 / 87 Nm \| tool taper: SK 40 \| internal coolant system feed: 40 bar \| table surface area: 2.600 x 600 mm \| max. table load: 2.200 kg \| number of T-slots: 6 \| T-slot - width: 18 H7 mm \| T-slot - distance: 100 mm \| number of toolpositions: 30 pos. \| max. tool length: 300 mm \| max. tool weight: 6 kg \| max. tool diameter: 80 / 125 mm \| feed speeds: 20.000 mm/min \| input unit: 0,01 mm \| rapid traverse ( X / Y / Z ): 100 / 50 / 50 m/min \| Resolution: 0,001 mm \| total power requirement: 60 kVA \| weight of the machine ca.: 12,5 t \| dimensions of the machine ca.: 6,0 x 3,7 x 2,9 m \| Automatic Tool Changer: 30 pos. \| test probe: Heidenhain TS 631 \| through spindle coolant: 40 bar
Location	Mittelweg 92 59302 Oelde Germany
Viewing Status	Consultation
Test Run Status	Consultation
