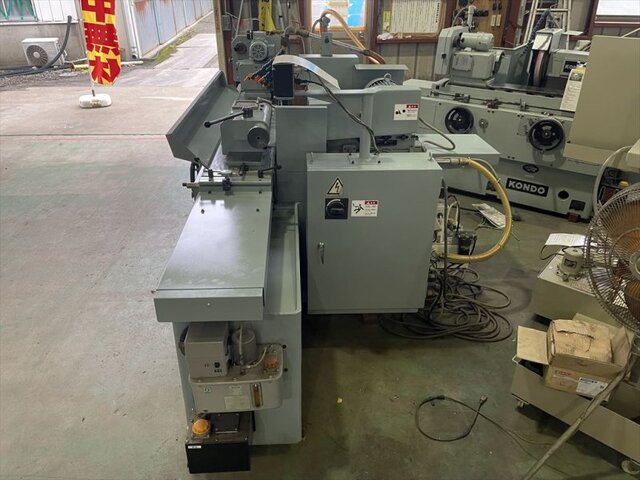

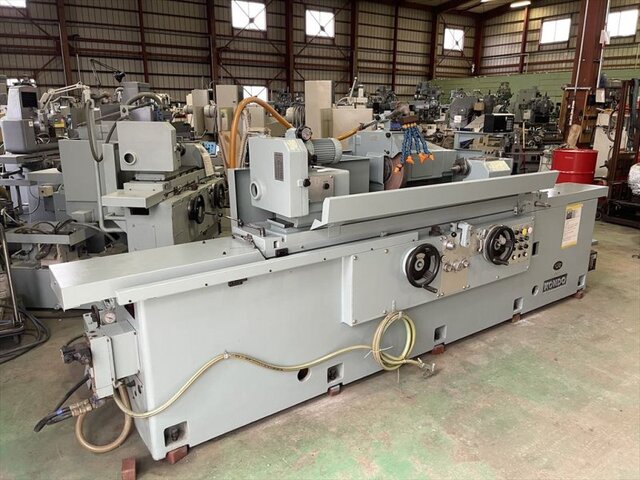

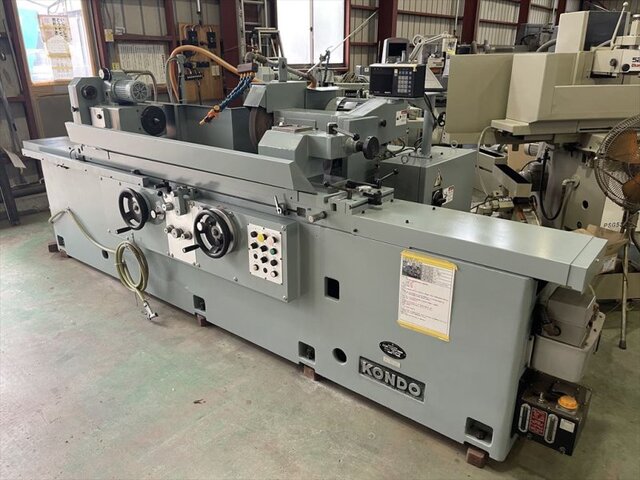

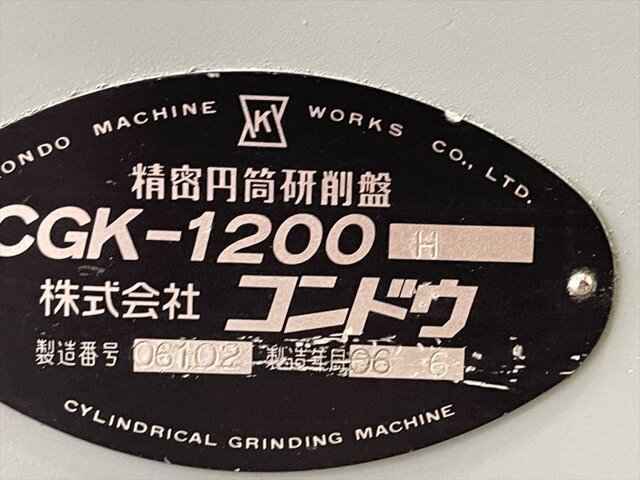

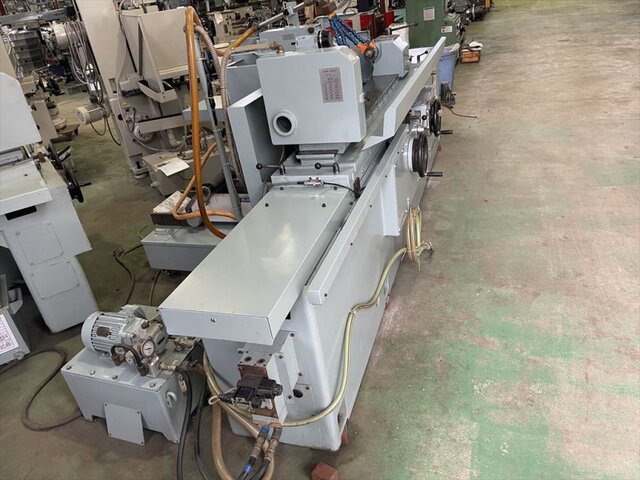

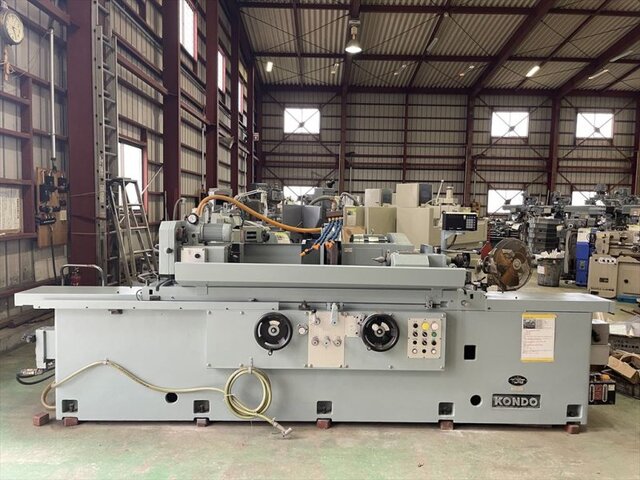

KONDO MACHINE WORKS CGK-1200H Cylindrical Grinder

Cylindrical Grinder Grinding Machine - Manual Publication Date: March 05, 2025 Print (Without Logo) Print (With Logo)

Company information will be disclosed upon member registration.

Stock ID	50296
Stock Code	26072
Manufacturer	KONDO MACHINE WORKS inventory List
Model Type	CGK-1200H
Year	2006

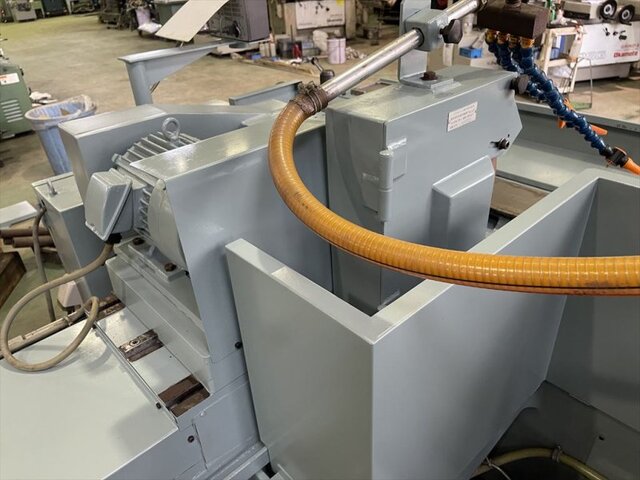

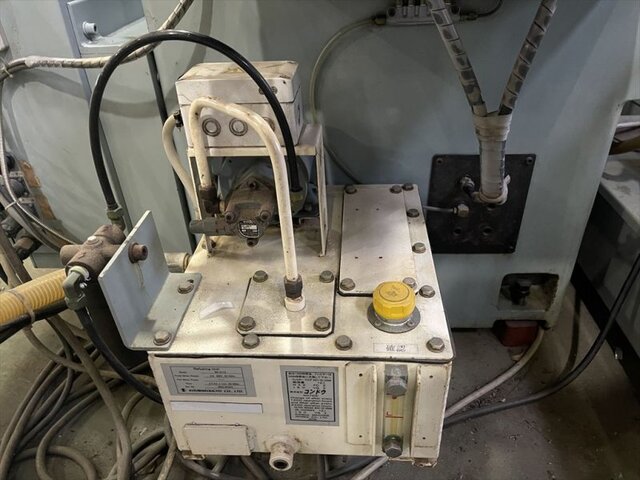

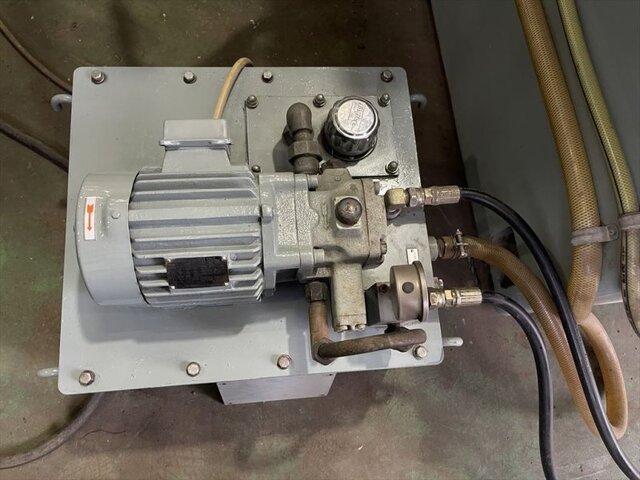

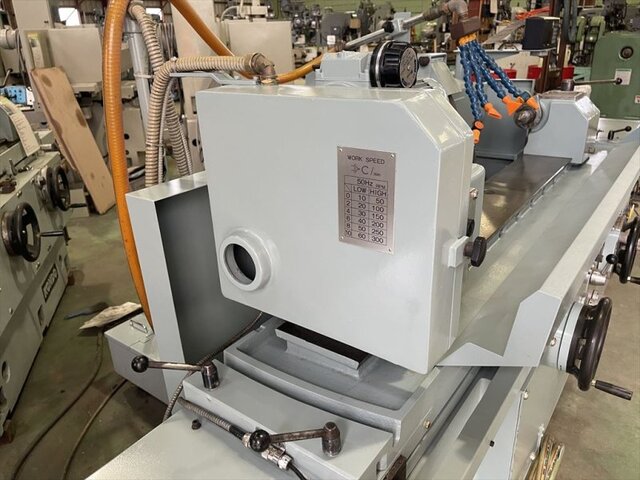

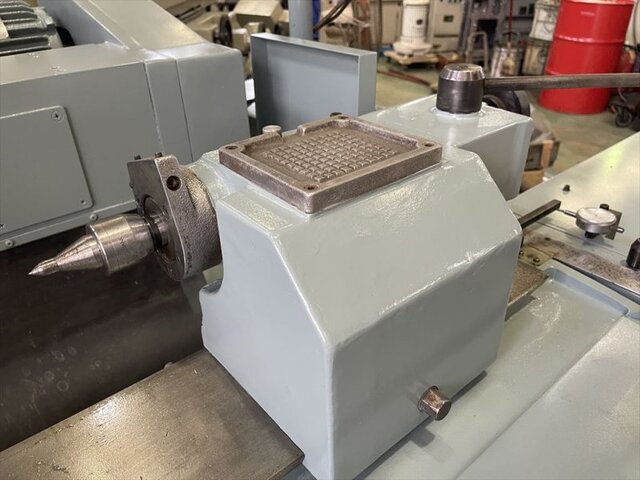

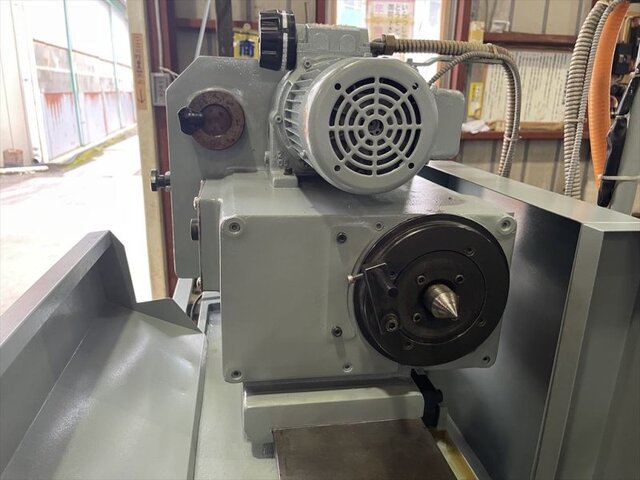

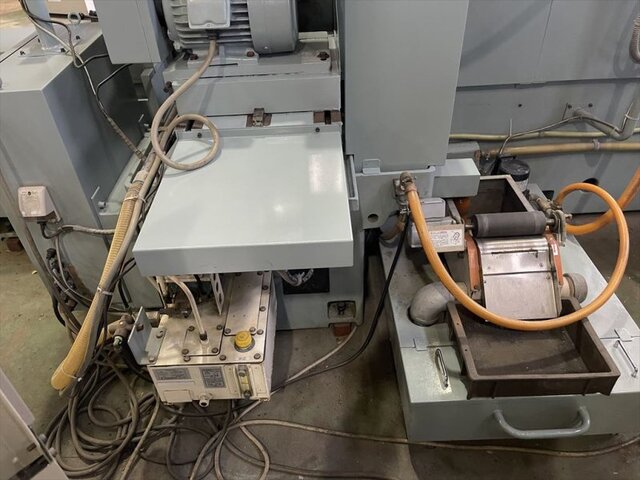

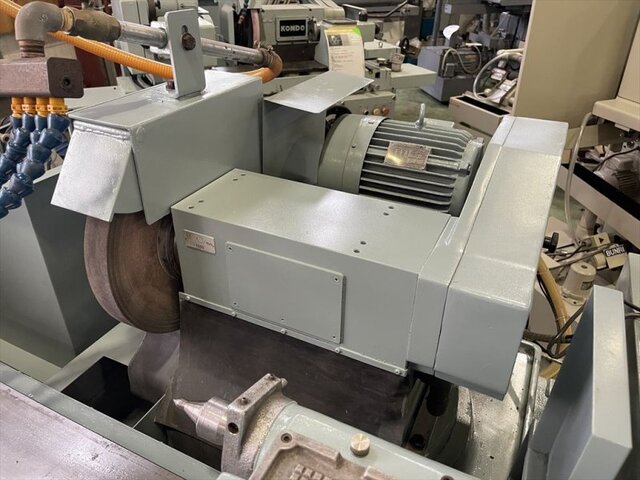

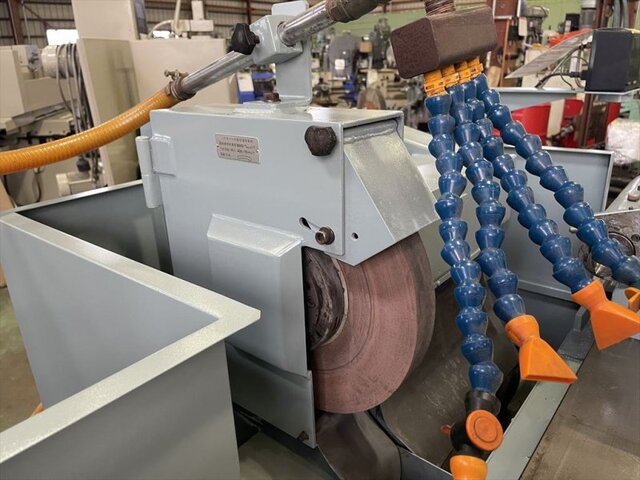

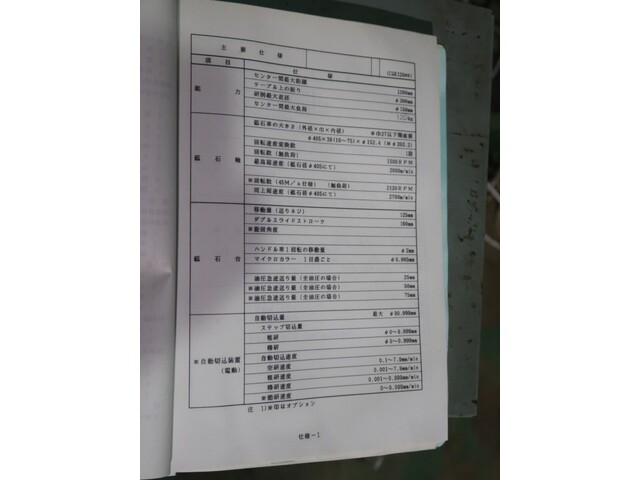

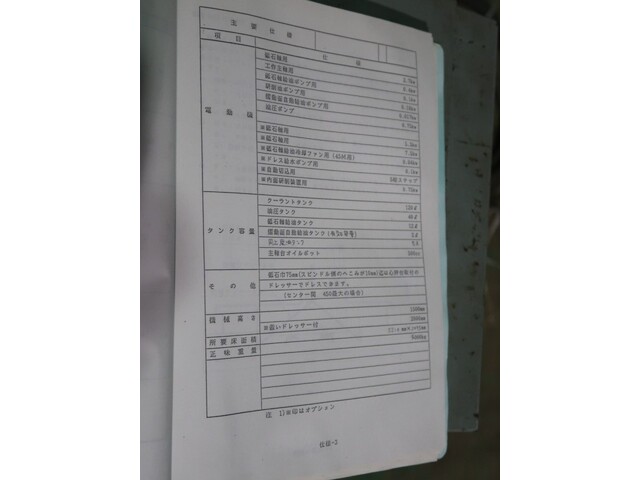

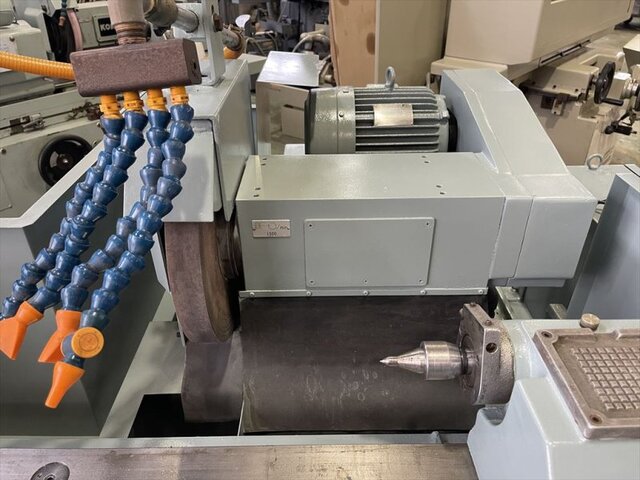

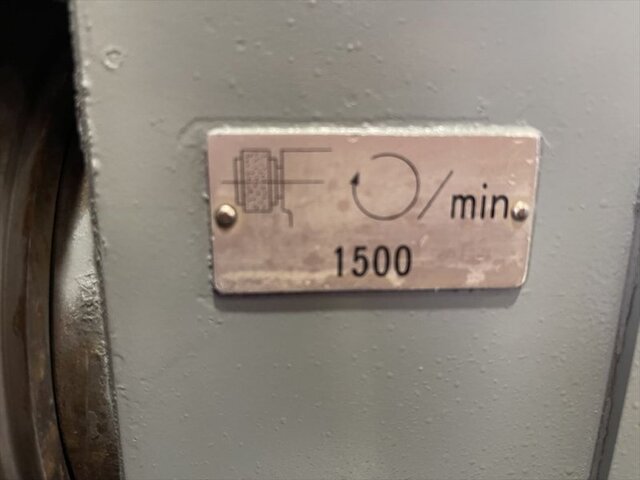

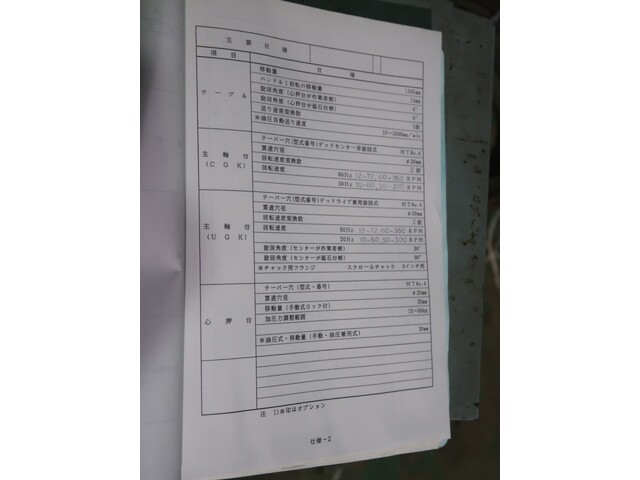

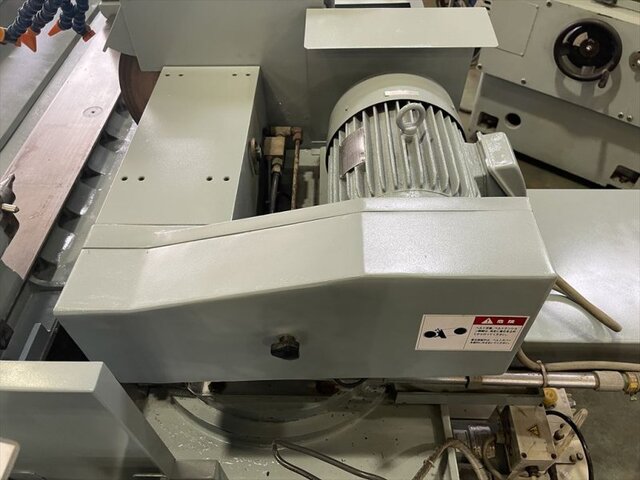

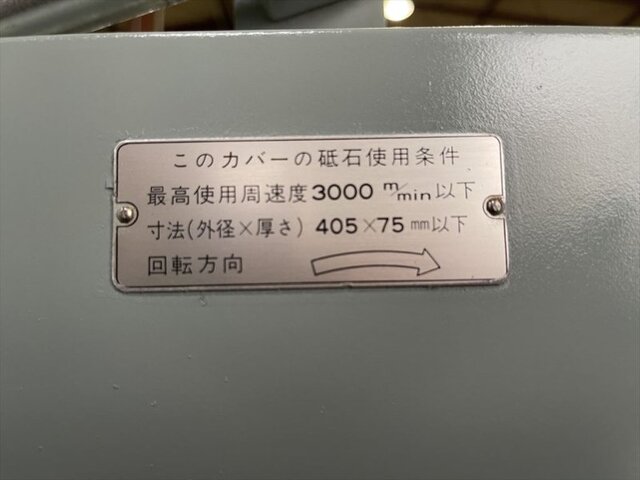

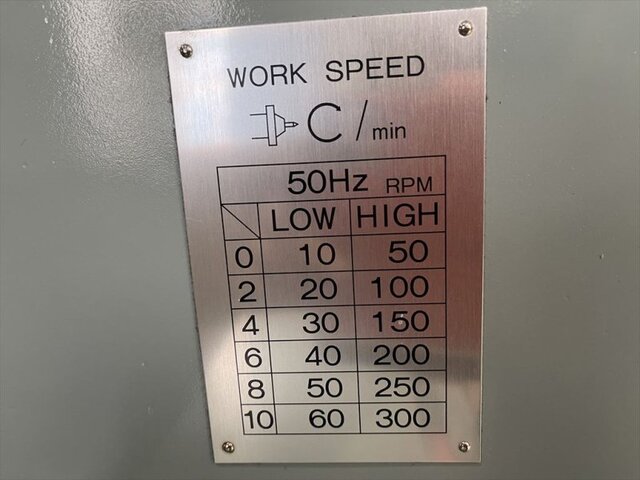

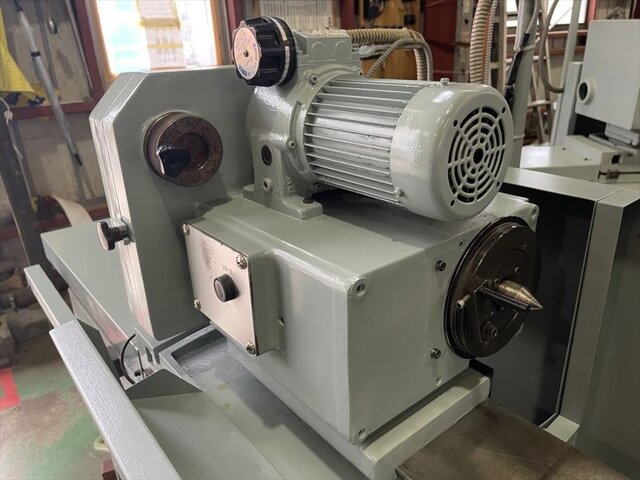

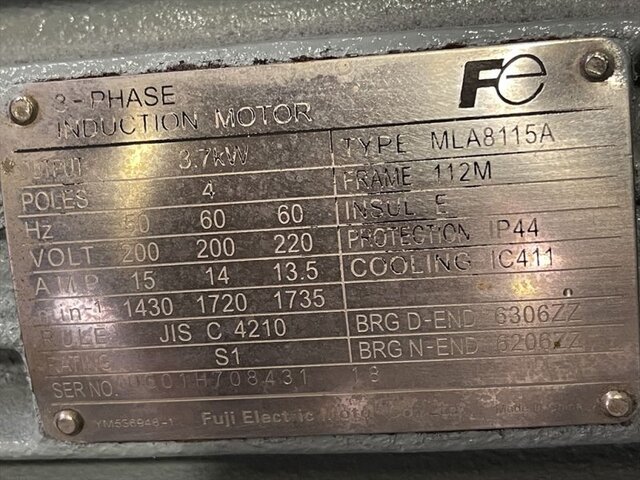

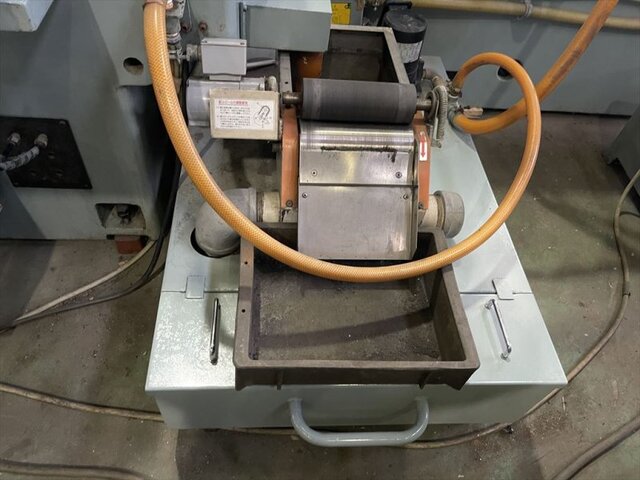

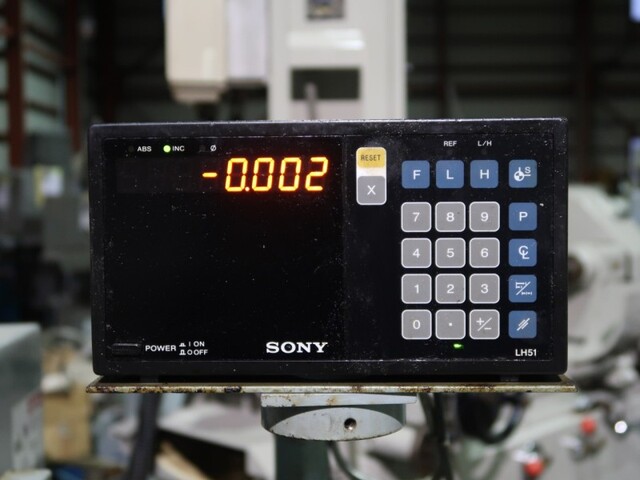

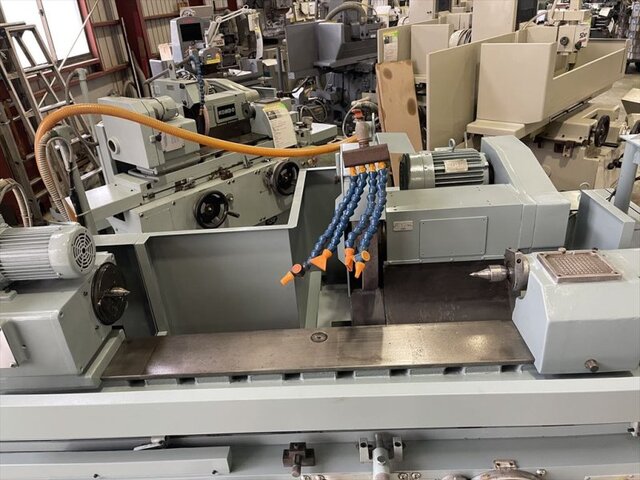

Main Specifications	○Machine specifications Grinding wheel infeed is manual operation. There is no automatic infeed function. Table left/right feed and grinding wheel table rapid advance are hydraulically driven. Table has digital display on both sides. ○Capacity/capacity Table swing φ300mm Center distance 1200mm Grinding outer diameter φ150mm Workpiece weight 120kg ○Grinding wheel Grinding wheel dimensions Outer diameter φ405 x width 16-75 x inner diameter φ152.4mm Rotation speed 1500rpm Maximum operating peripheral speed 2000m/min ○Grinding wheel table Swivel angle = non-swiveling Total travel 150mm [Manual feed 125mm + fast traverse 25mm] Travel for one color scale φ0.005mm ○Table Swivel angle = right turn 4° - left turn 4° Travel 1345mm Travel for one turn of the handwheel 13mm Feed speed (hydraulic) 10-2000mm/min○Work spindle stock Swivel angle = Non-swiveling type Dead center method Shank hole MT,4 Through hole diameter φ20mm Rotation speed 50Hz・10-60/50-300rpm 60Hz・12-72/60-360rpm○Tailstock Tapered hole MT No.4 Retraction amount 35mm Pressure adjustment range 15-60kg○Motor For grinding wheel spindle 3.7kw 4P○Tank capacity Coolant tank 120L Hydraulic tank 40L○Machine size Dimensions Width 5200 x Depth 1800 x Height 1700mm Weight 5000kg
Location	Ibaraki
Viewing Status	Consultation
Test Run Status	Consultation
