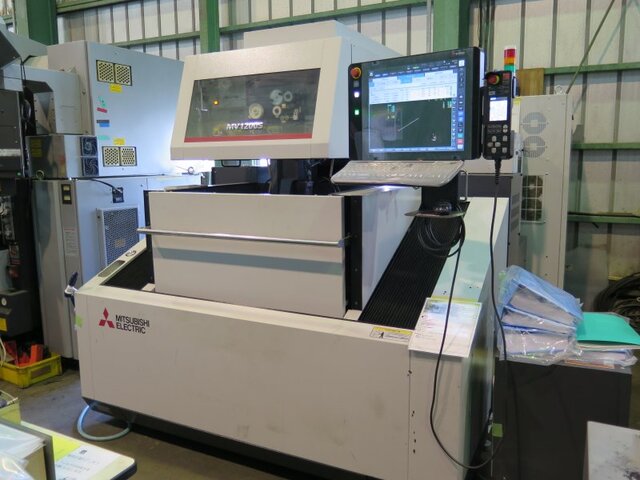

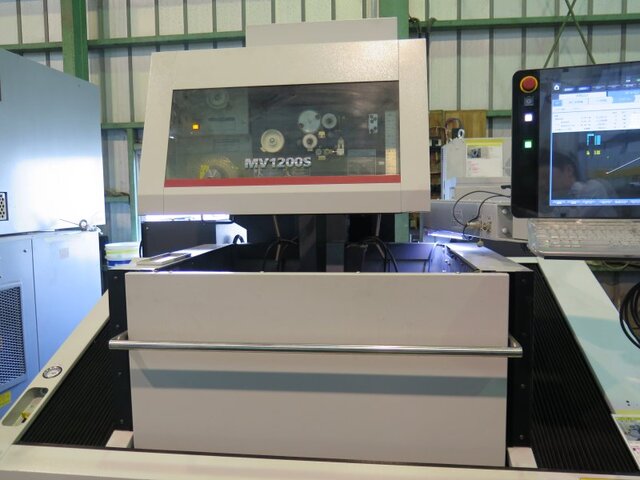

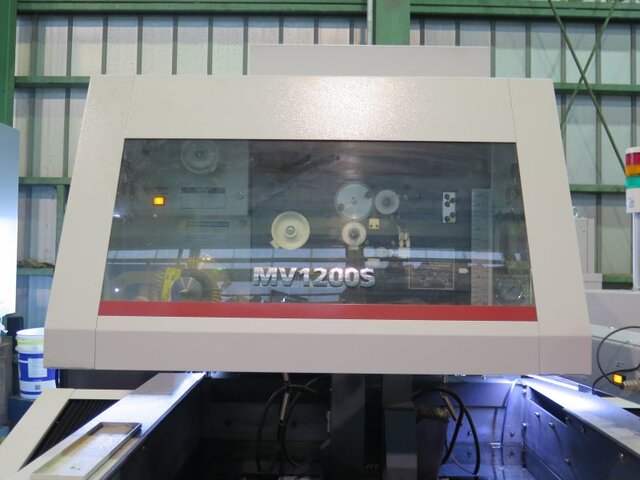

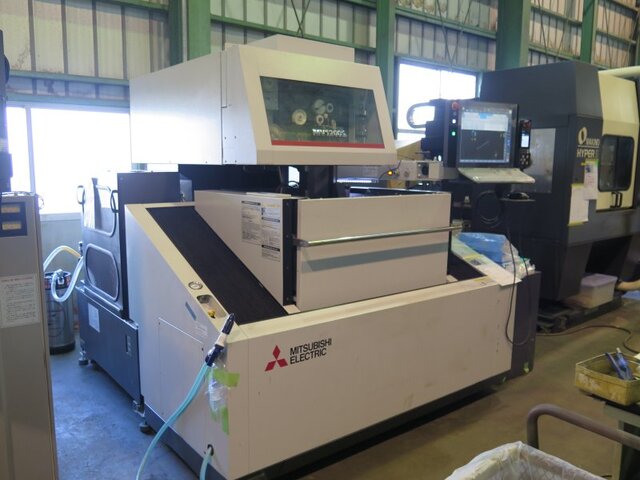

Mitsubishi Electric MV-1200S（D-CUBES） EDM (Wire)

EDM (Wire) EDM - NC Publication Date: March 05, 2025 Print (Without Logo) Print (With Logo)

Company information will be disclosed upon member registration.

Stock ID	50289
Stock Code	26097
Manufacturer	Mitsubishi Electric inventory List

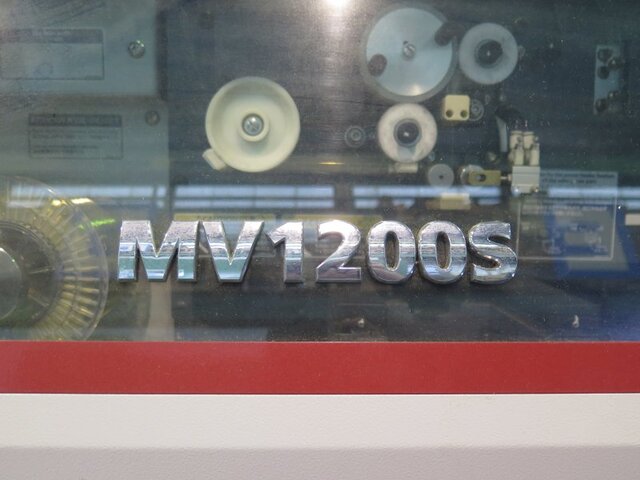

Model Type	MV-1200S（D-CUBES）

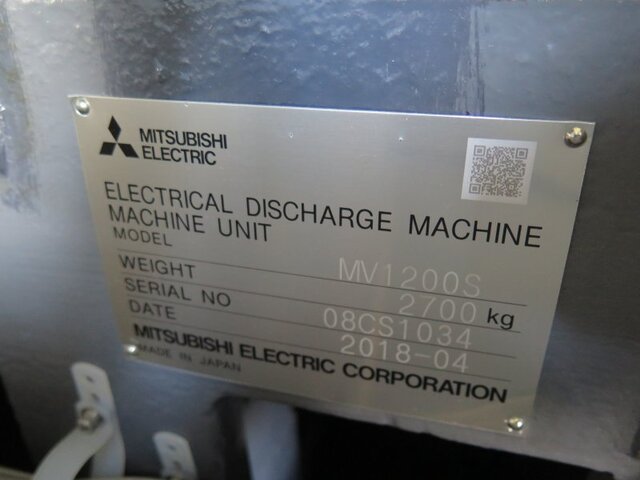

Year	2018

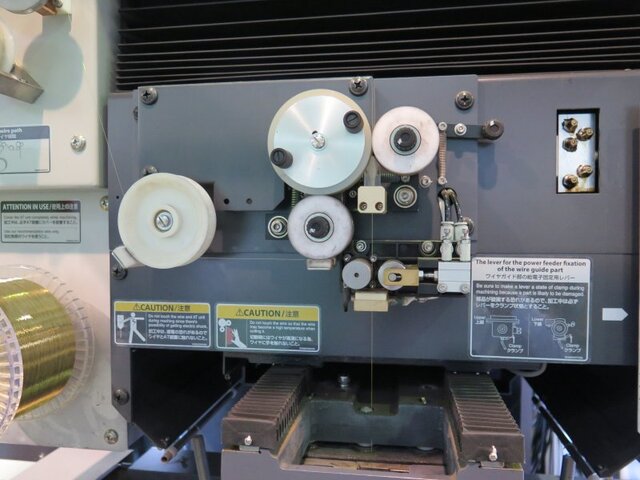

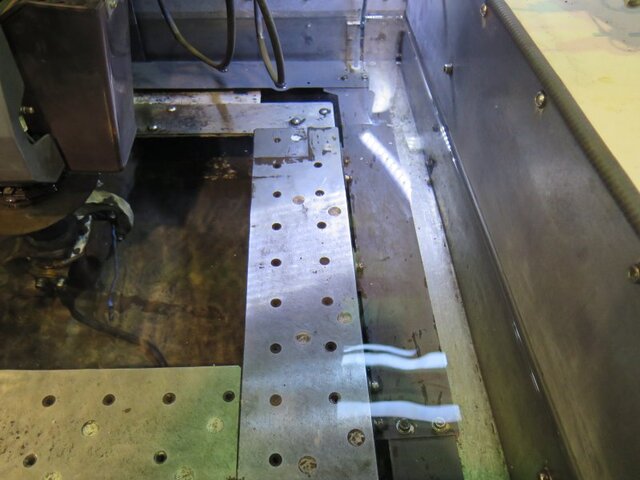

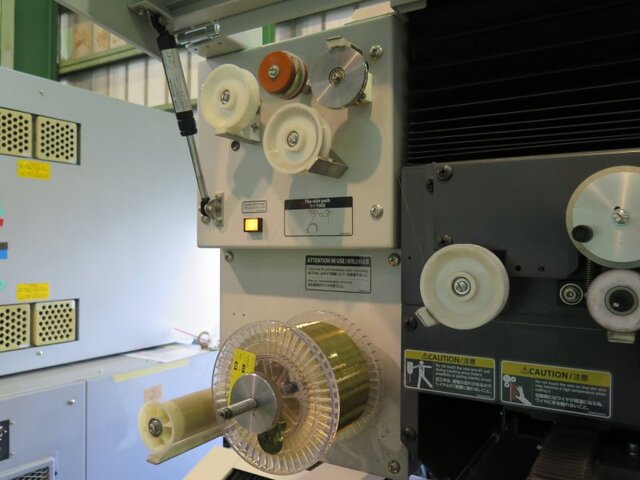

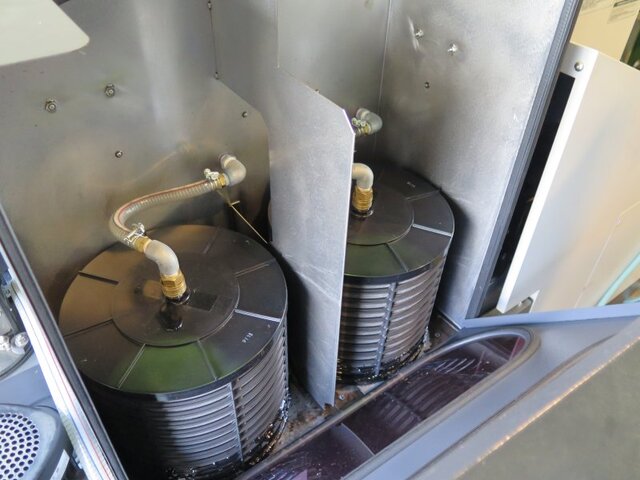

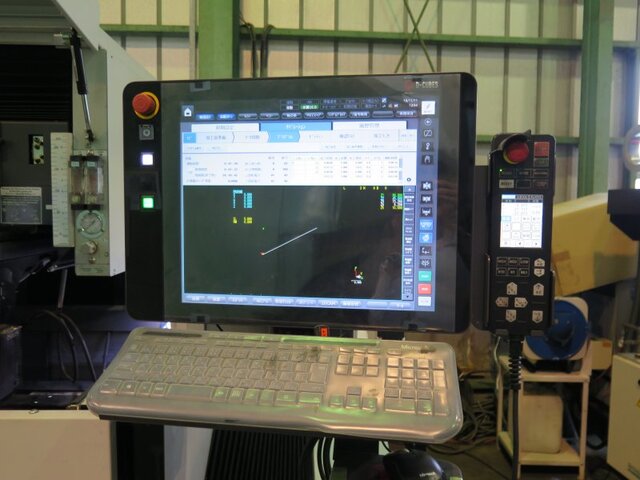

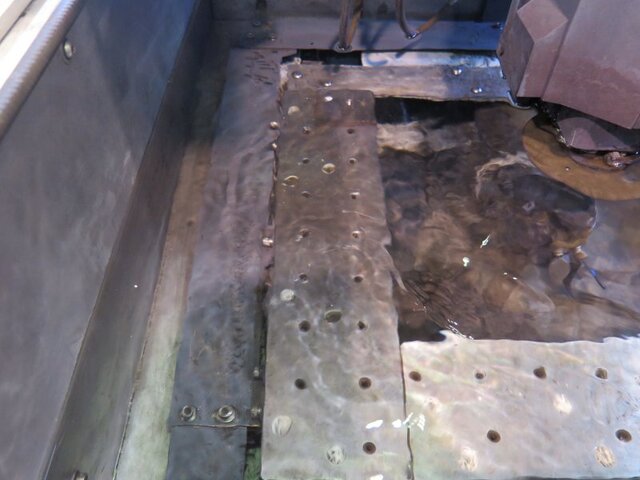

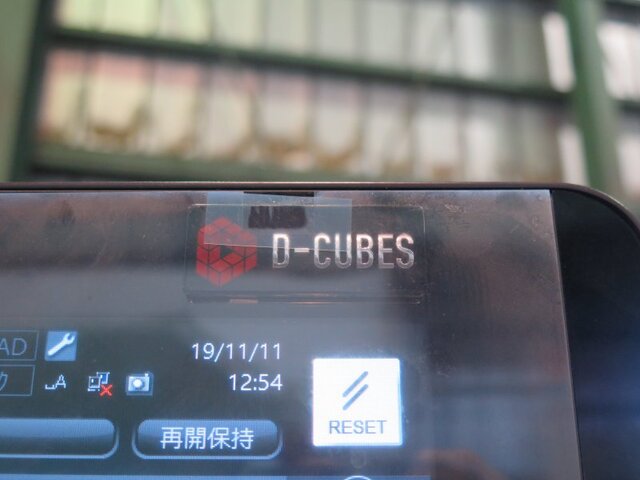

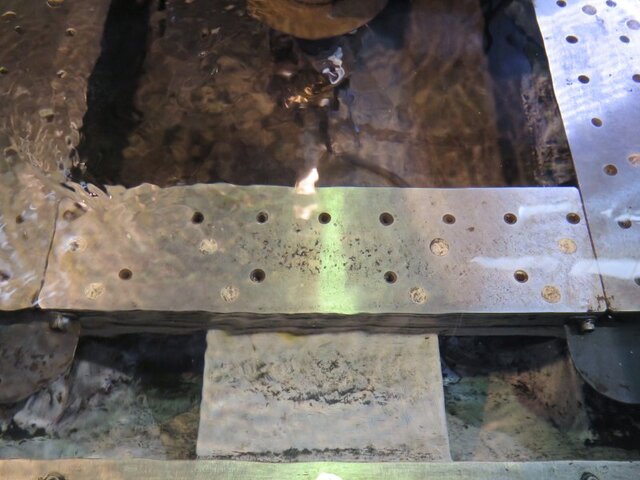

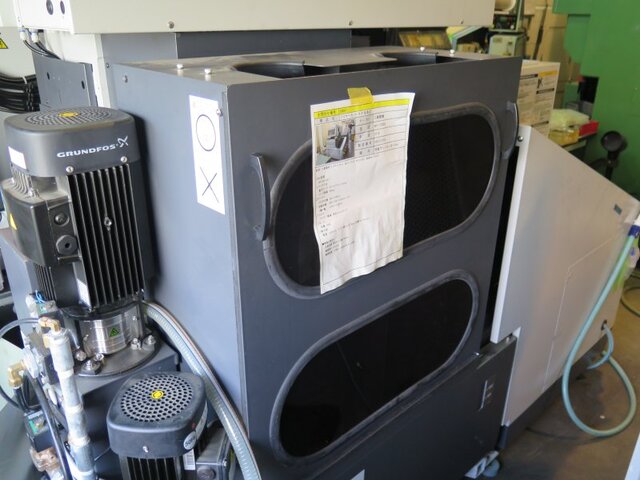

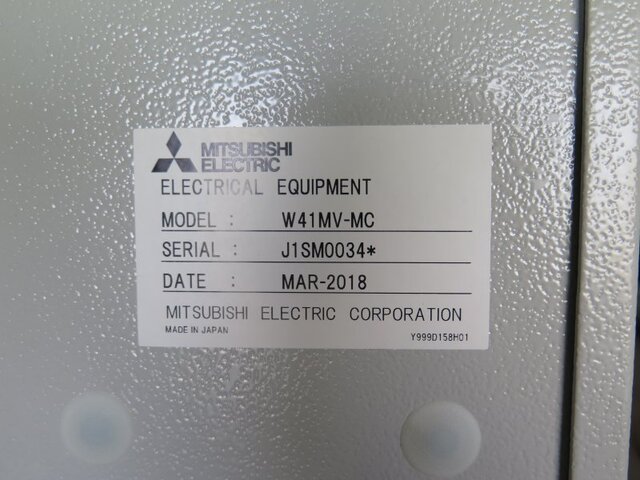

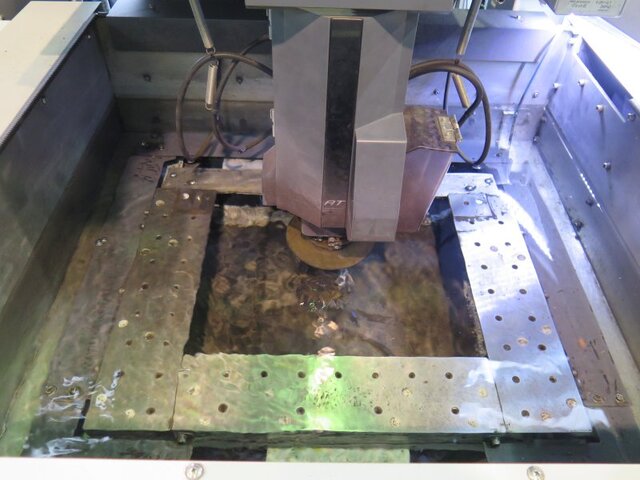

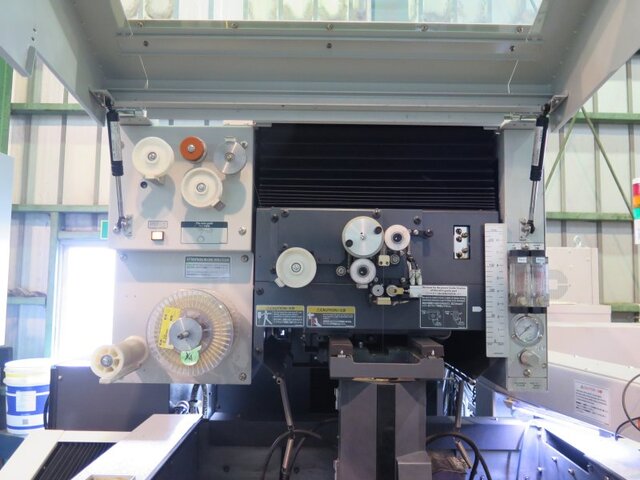

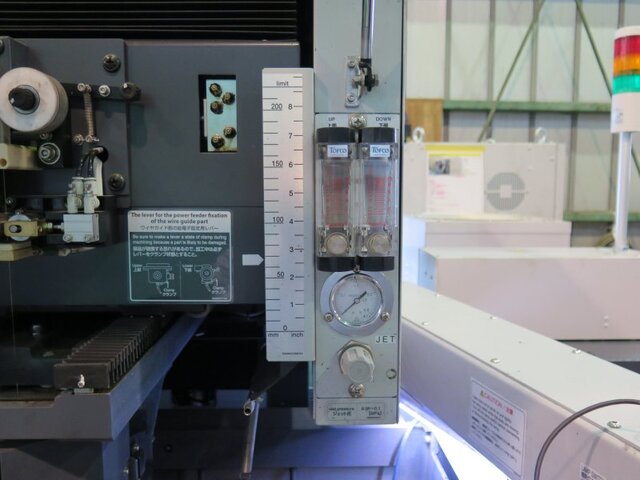

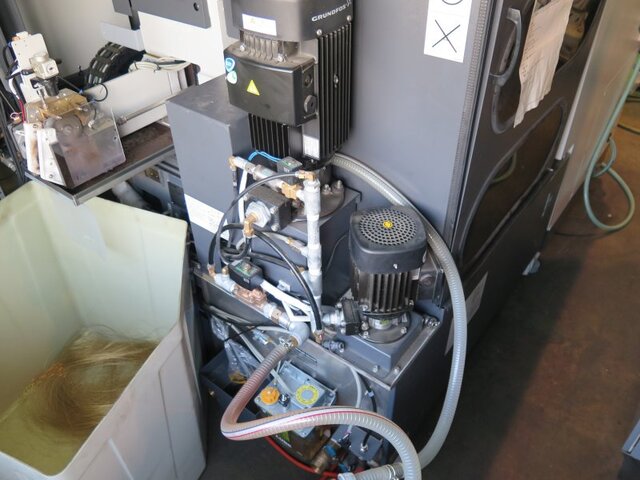

Main Specifications	○NC unit W41MV-MC○Workpiece dimensions Maximum workpiece 810×700×215mm Workpiece weight 500kg○Table U-shaped surface plate Left and right 640×Depth 450mm○Axis travel X-axis 400×Y-axis 300×Z-axis 220mm U-axis ±60×V-axis ±60mm Maximum taper angle 15° at maximum 200mm○Wire Wire electrode diameter used φ0.1～φ0.3mm Currently φ0.2 die○Machining fluid tank Capacity 550L Filtration: 2 paper filters○Power source Power supply 13.5KVA Air source 0.5～0.7Mpa Flow rate 75L/min or more○Size of entire machine Dimensions Width 2025×Depth 2760×Height 2015 Total weight 3220kg Main unit 2700kg Power supply 220kg NC 20kg Tank: 280 kg
Location	Ibaraki
Viewing Status	Consultation
Test Run Status	Consultation
