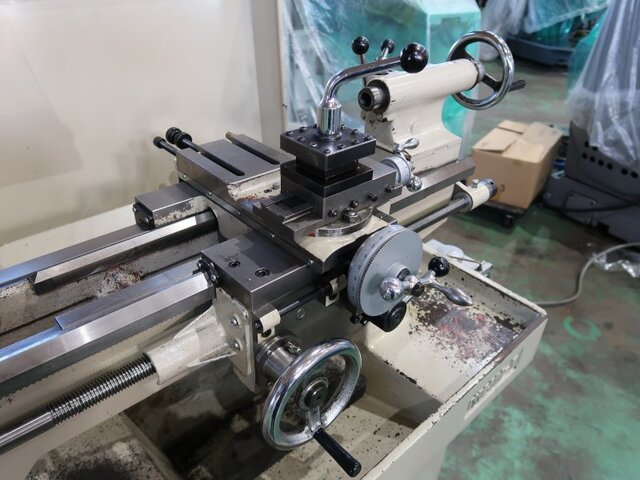

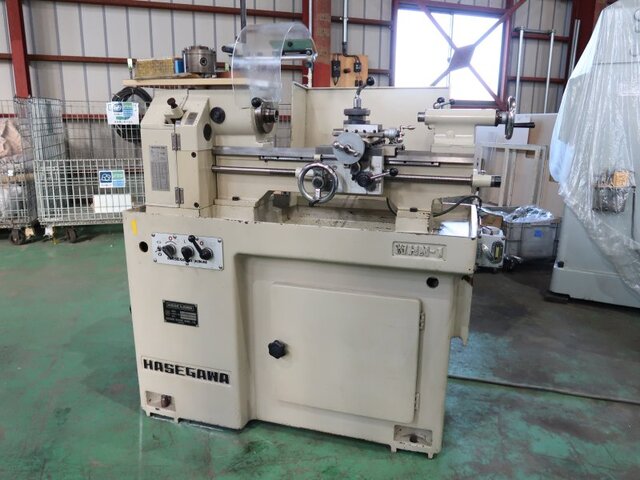

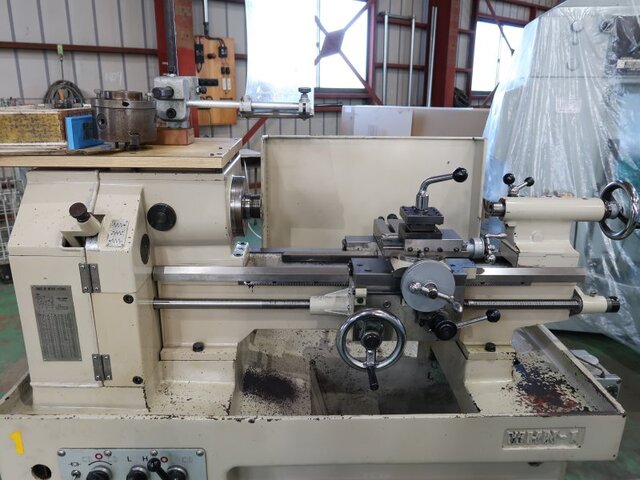

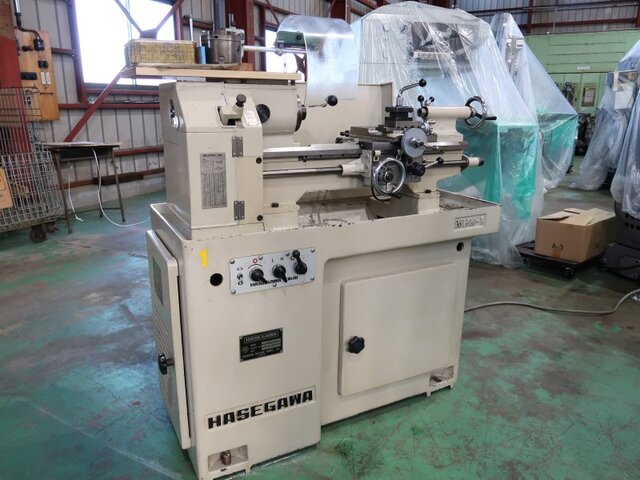

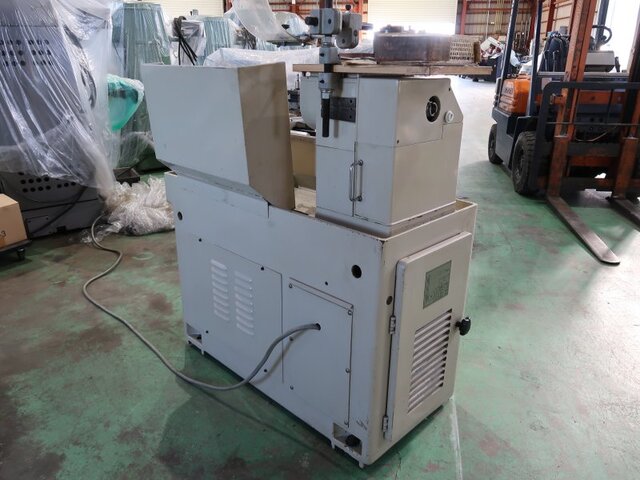

HASEGAWA MACHINE WORKS WHN-1 Lathe

Lathe Lathe - Manual Publication Date: March 05, 2025 Print (Without Logo) Print (With Logo)

Company information will be disclosed upon member registration.

Stock ID	50287
Stock Code	25245

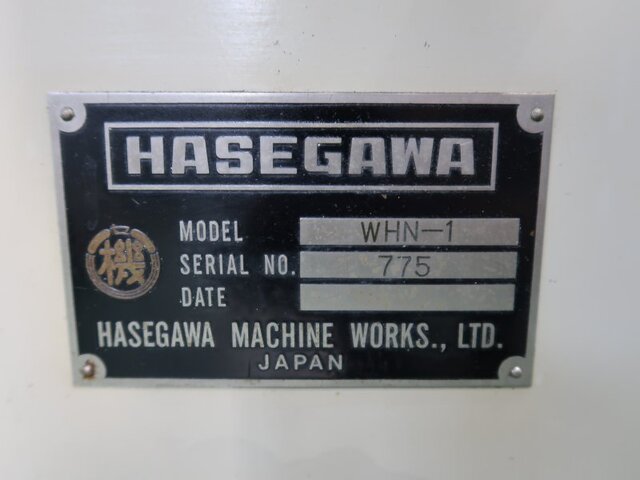

Manufacturer	HASEGAWA MACHINE WORKS inventory List
Model Type	WHN-1
Year	1984

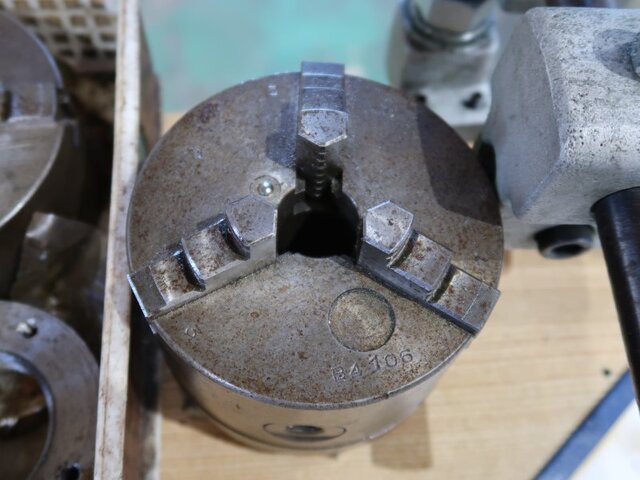

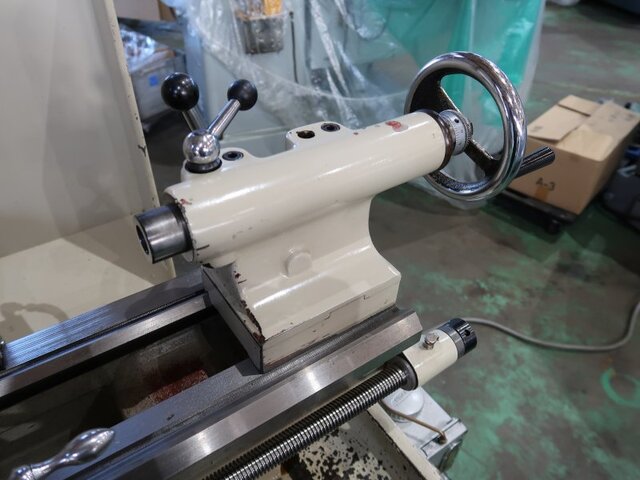

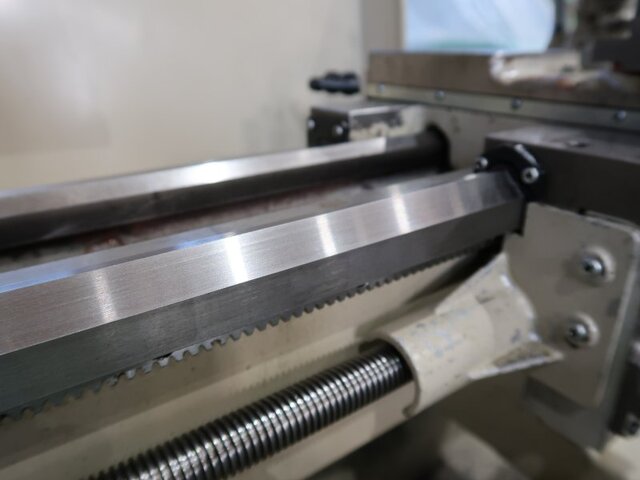

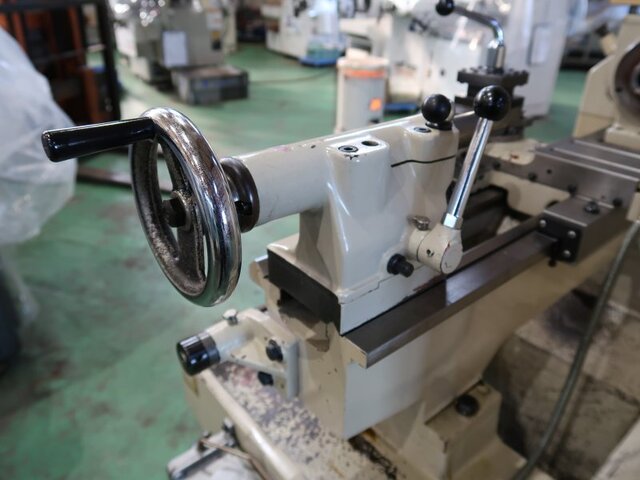

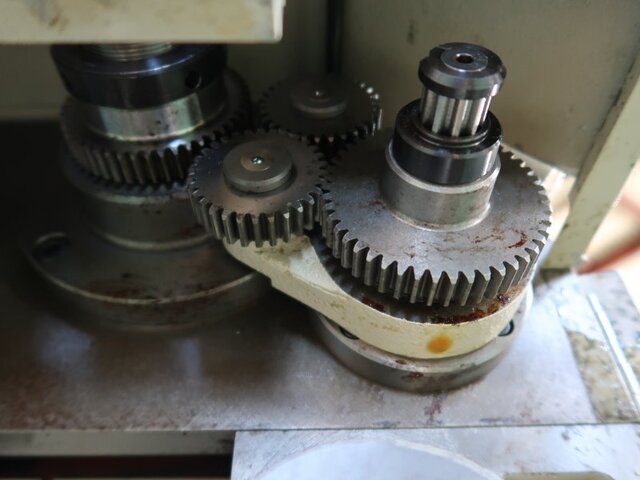

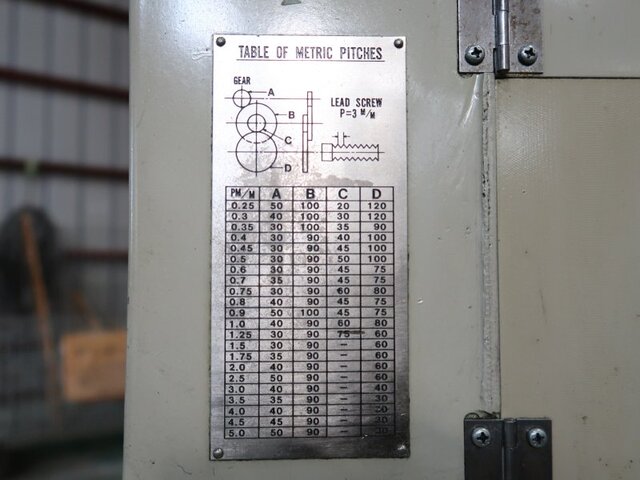

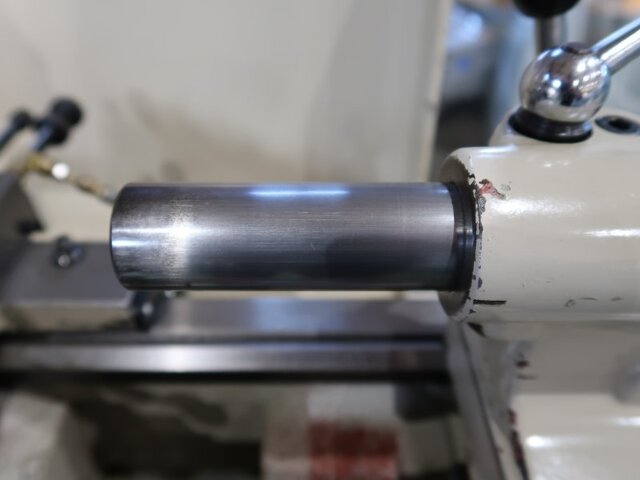

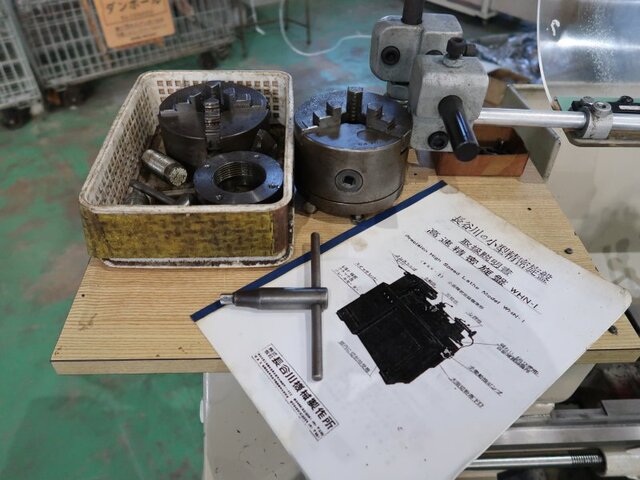

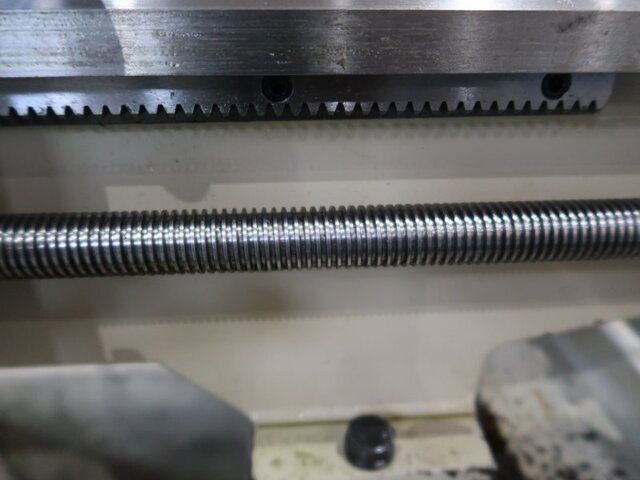

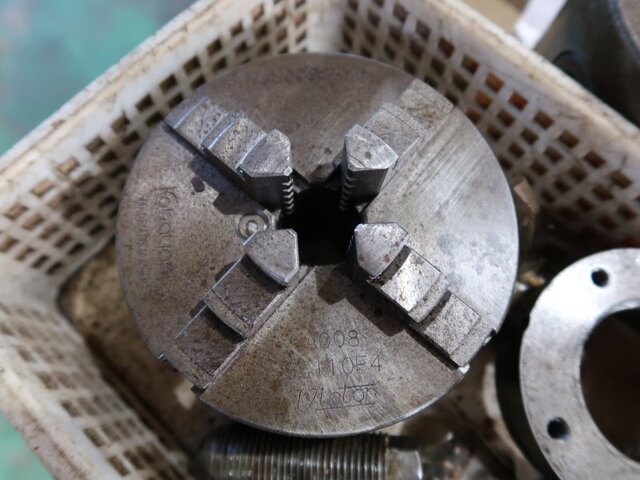

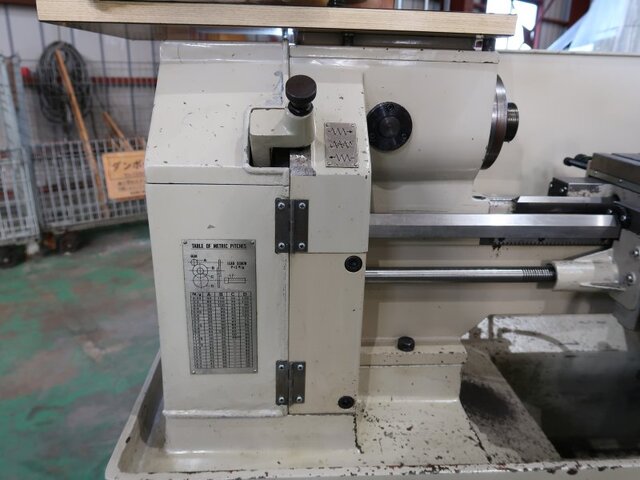

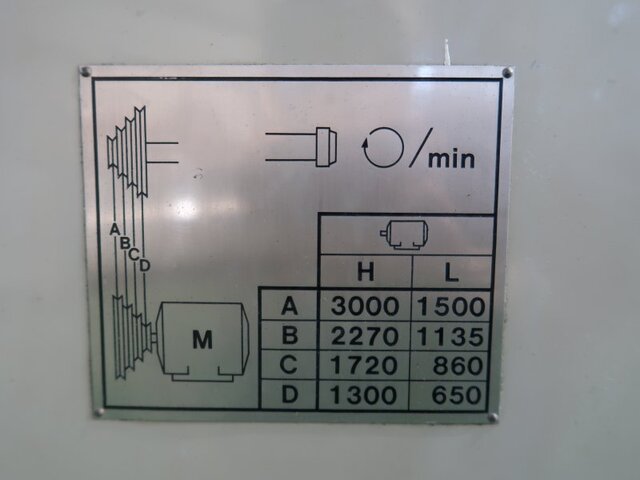

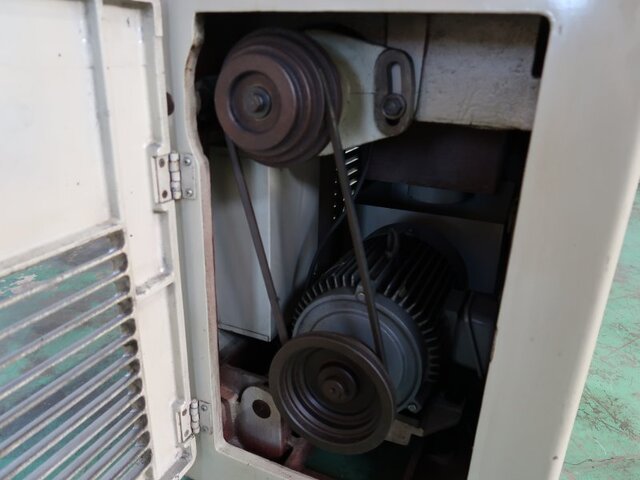

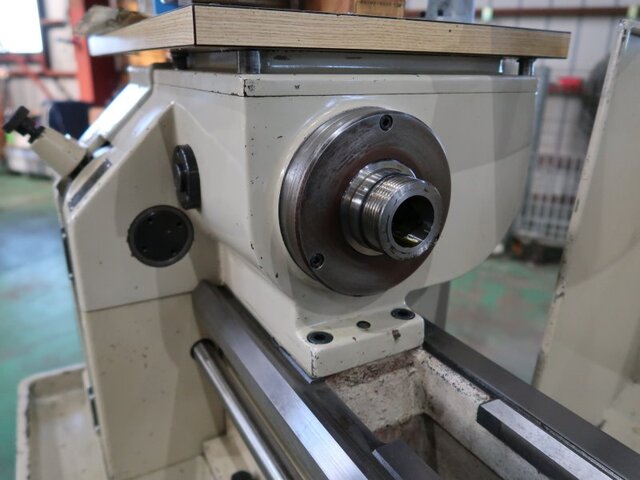

Main Specifications	Used for electrode cutting. Capacity: Machining capacity φ70×L300 mm Swing above bed φ220mm Swing above saddle φ100mm Base dimensions: Bed width 155×total length 850 mm (2.8 shaku) Spindle: Standard compatible chuck 4-inch three-jaw End shape: Hasegawa standard Rotation speed: 50hz 650, 860, 1135, 1300, 1500, 1720, 2270, 3000rpm (8 stages) Through hole φ25.5 mm Tailstock: Tapered hole MT.No.2 Center distance 380 mm Thread cutting: Lead screw diameter φ22 mm Lead screw pitch 3 mm Thread cutting range 0.25 to 5 mm Motor: For spindle 1.5/0.75kw (4/8 pole conversion) Machine size: Dimensions: Width 1270 × Depth 570 × Height 1130 mm Weight: 650 kg ○ Other This product [WHN-1 type lathe] does not have automatic left/right and front/back feed. Also, since it is used for cutting copper electrodes, a flange is required to install the standard 4-inch chuck.
Location	Ibaraki
Viewing Status	Consultation
Test Run Status	Consultation
