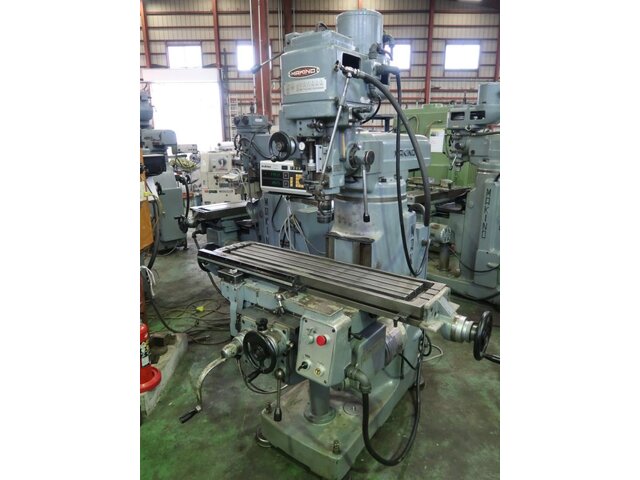

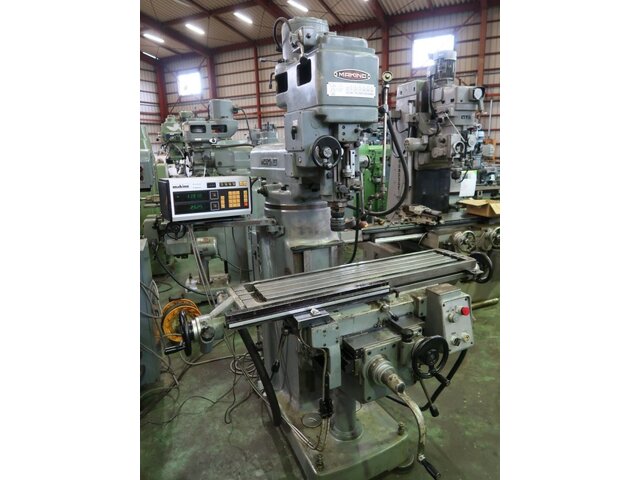

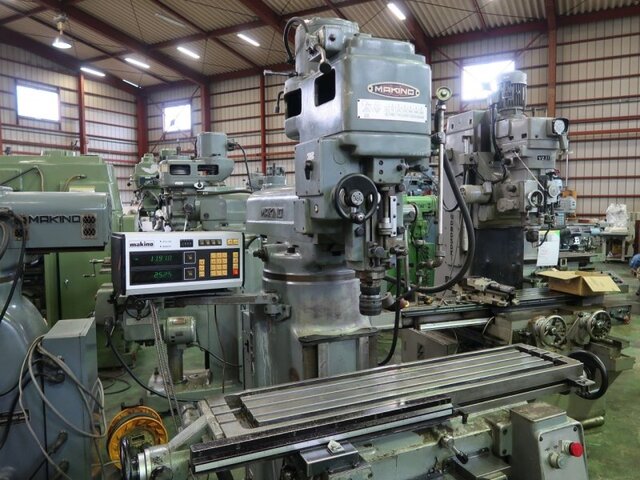

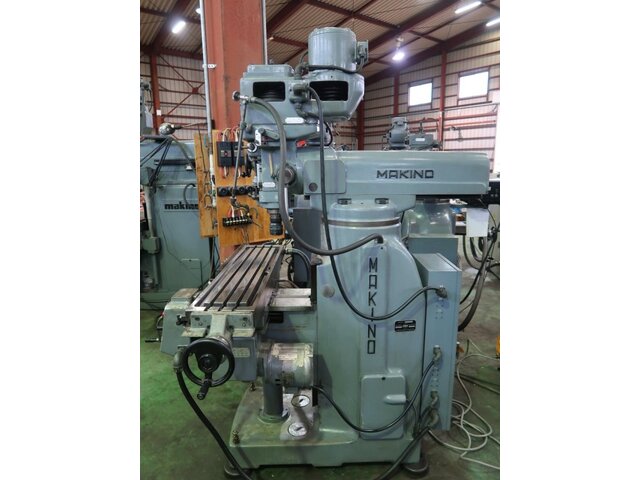

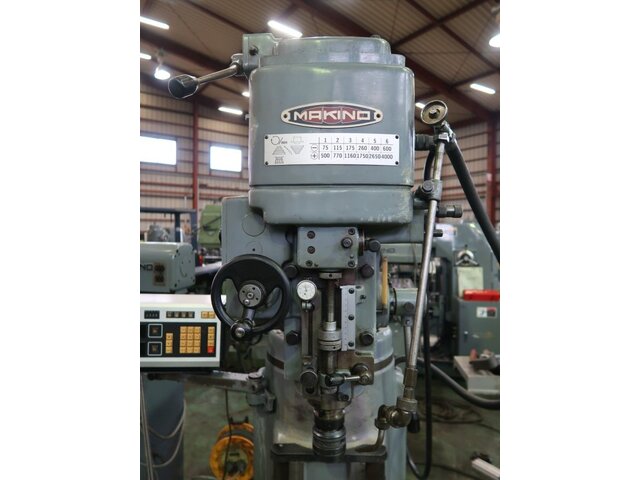

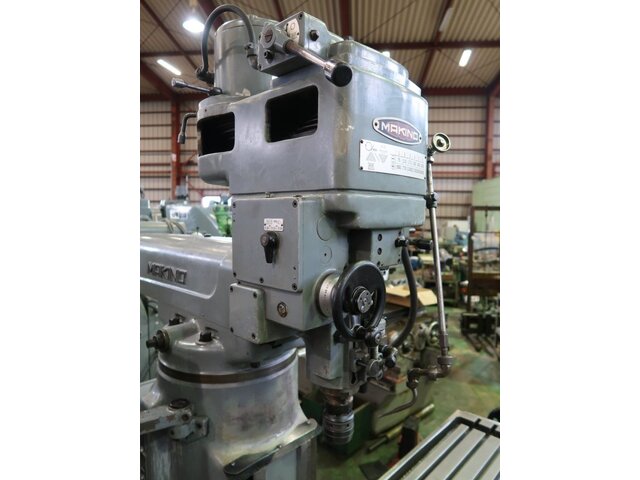

MAKINO KSJP Vertical Milling Machine

Vertical Milling Machine Milling Machine - Manual Publication Date: March 05, 2025 Print (Without Logo) Print (With Logo)

Company information will be disclosed upon member registration.

Stock ID	50254
Stock Code	26283
Manufacturer	MAKINO inventory List
Model Type	KSJP

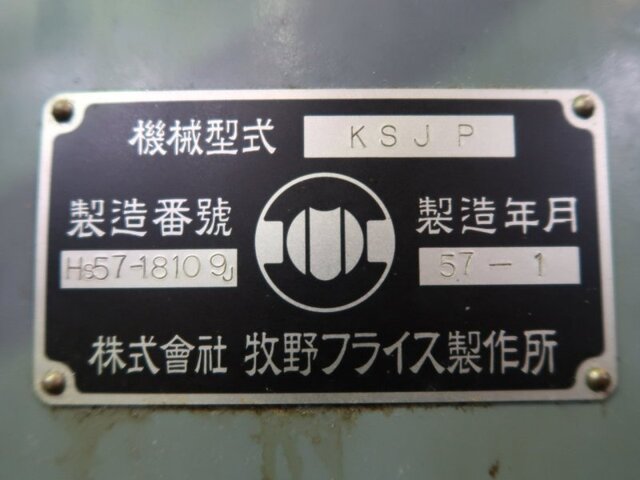

Year	1982

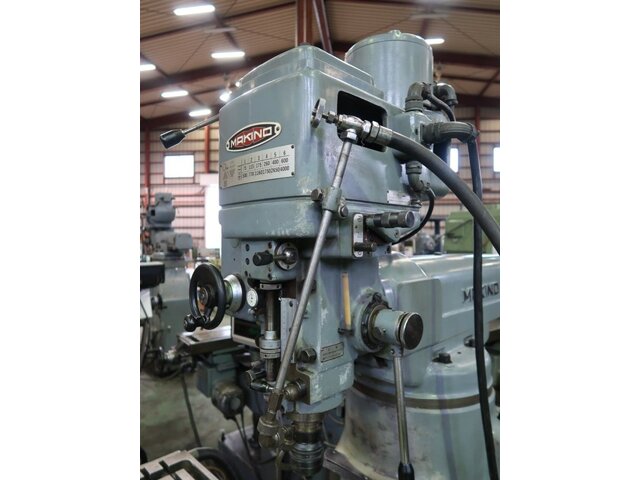

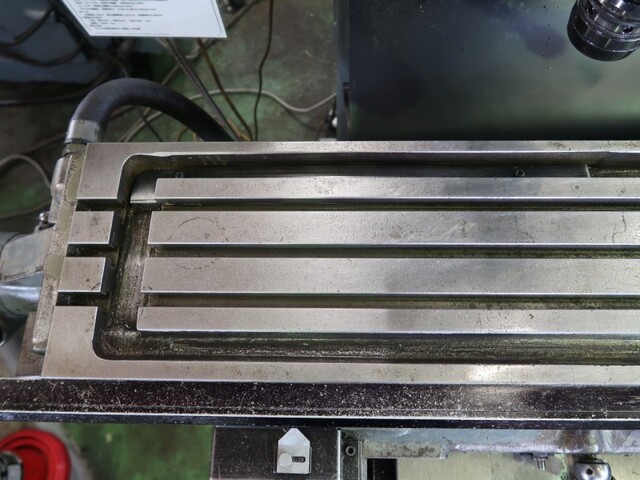

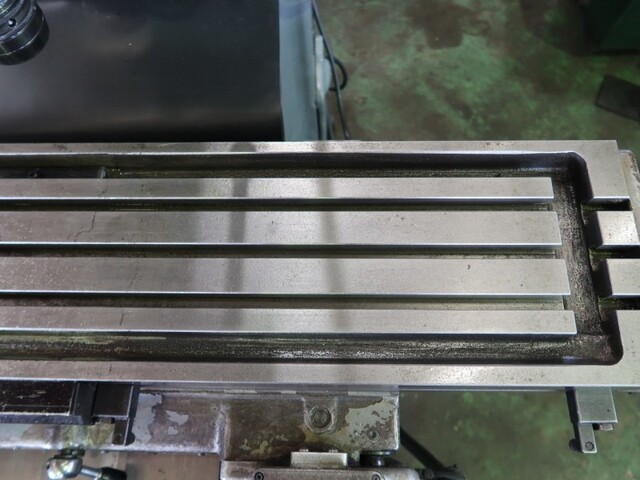

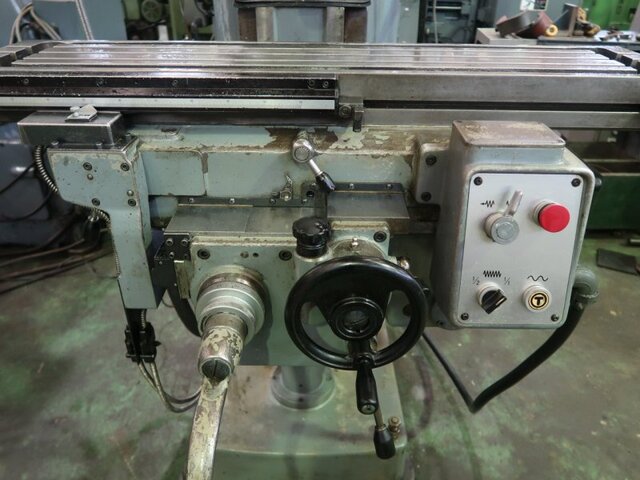

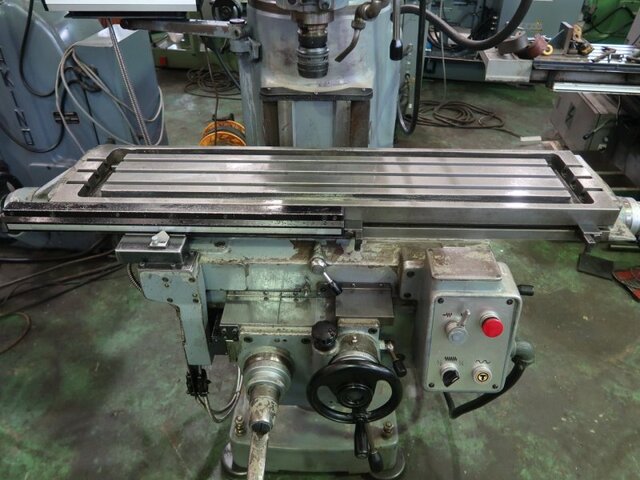

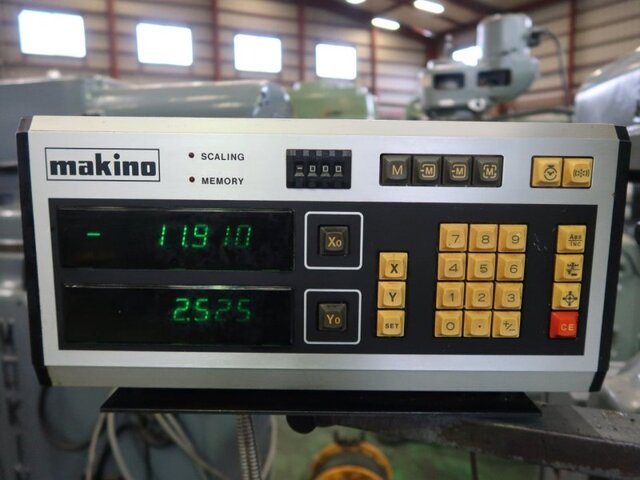

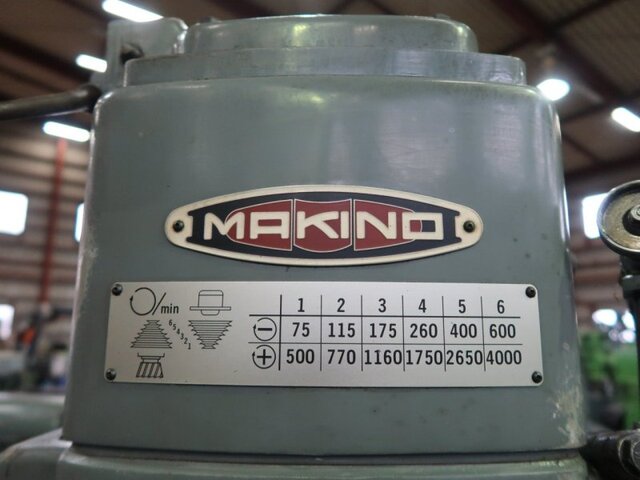

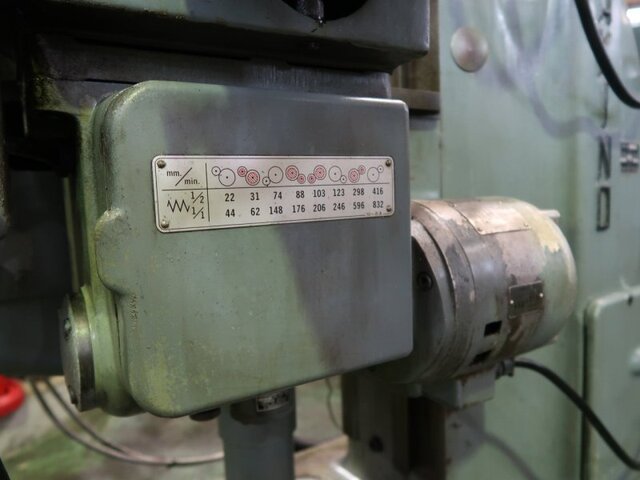

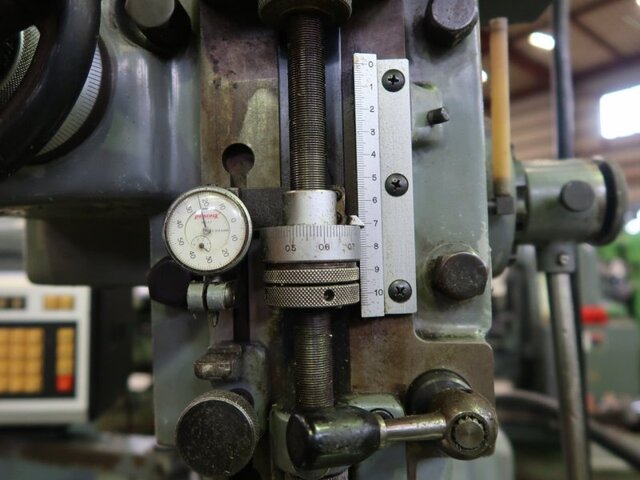

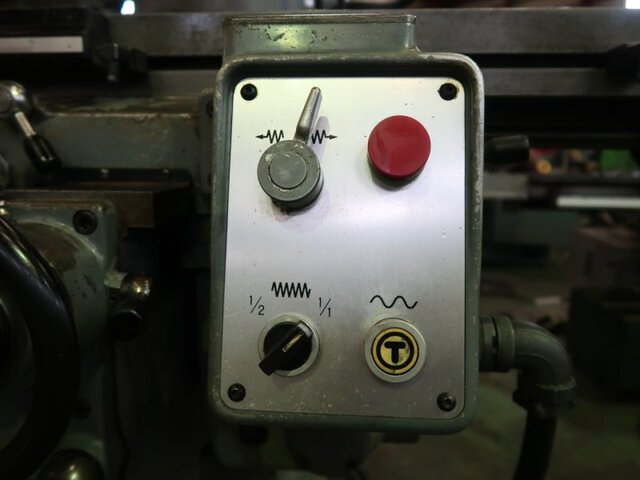

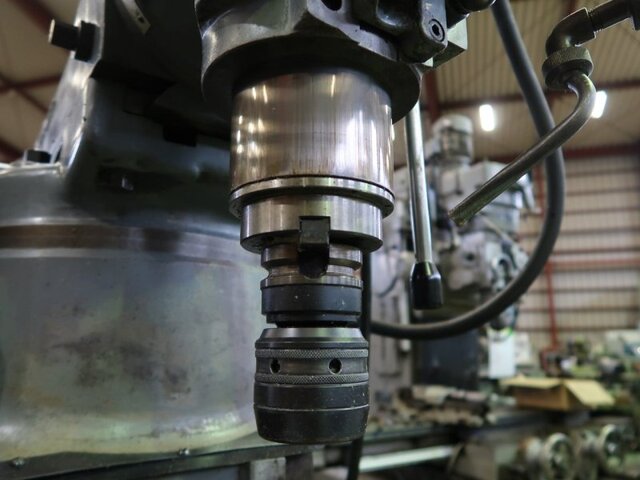

Main Specifications	○Digital XY2-axis Minimum display value 0.005mm○Table Working surface 1100mm x 250mm T-slot Width 14mm x 3○Spindles Spindle shank NT40 Spindle speed 75-4000rpm (12-stage belt change) Spindle head rotation Left and right ±45 degrees Spindle motor 1.5kw○Axis travel Table movement Left and right 550 x front and back 250 x up and down 350 mm Spindle quill feed 100mm Overarm front and back movement 300mm Spindle end to table top 5-455mm Spindle center to column front 125-425mm○Machine size Dimensions: Width 2190 x Depth 1815 x Height 2180 mm Weight: 1550 Kg○Operation method Quill automatic cutting feed/feed possible Table left and right Automatic cutting feed/fast forward possible Standard column type There is no fast forward up and down movement of the table.
Location	Ibaraki
Viewing Status	Consultation
Test Run Status	Consultation
