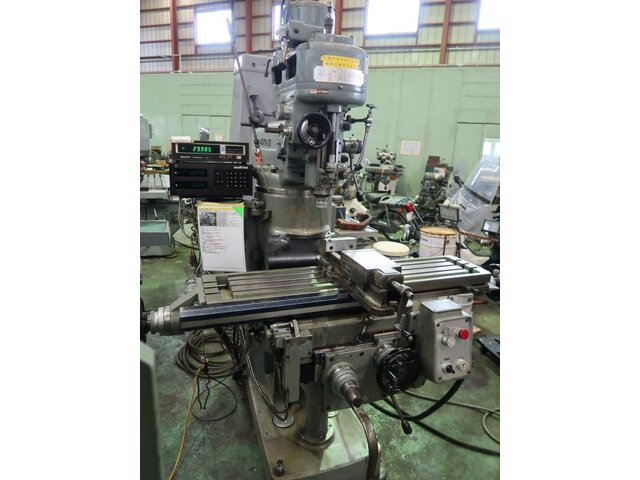

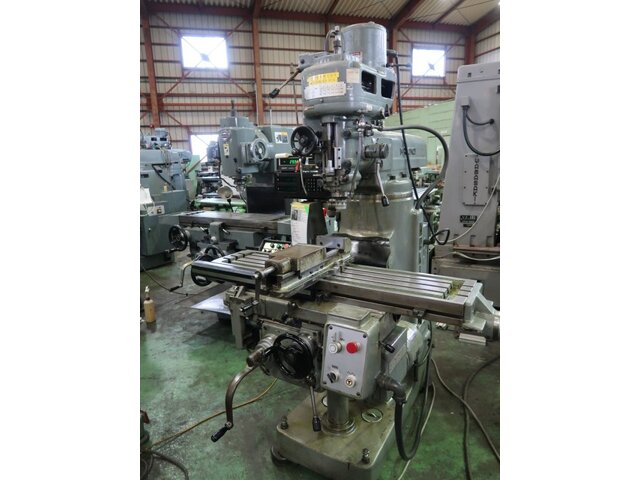

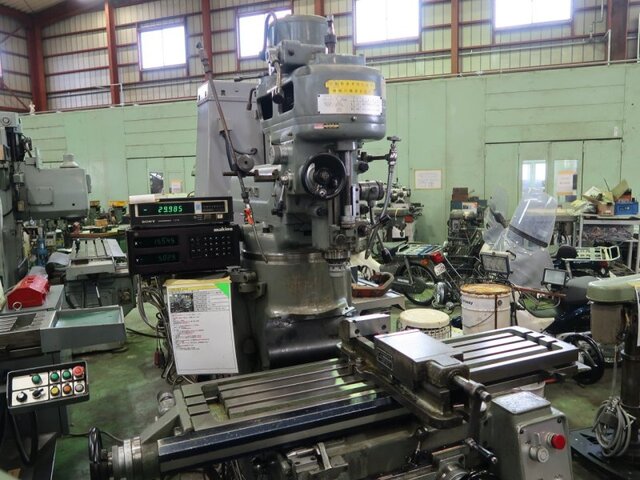

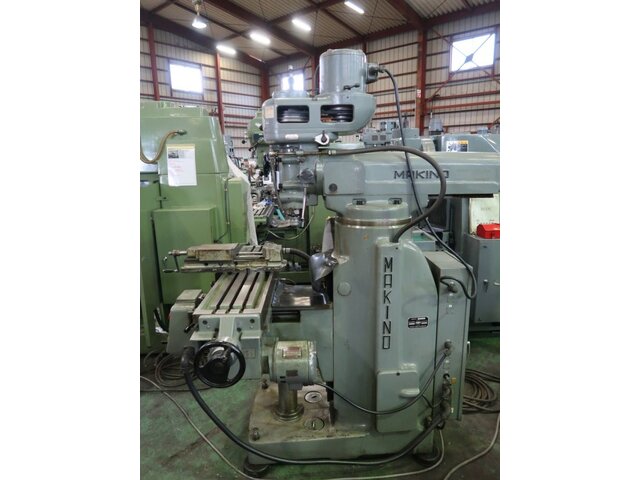

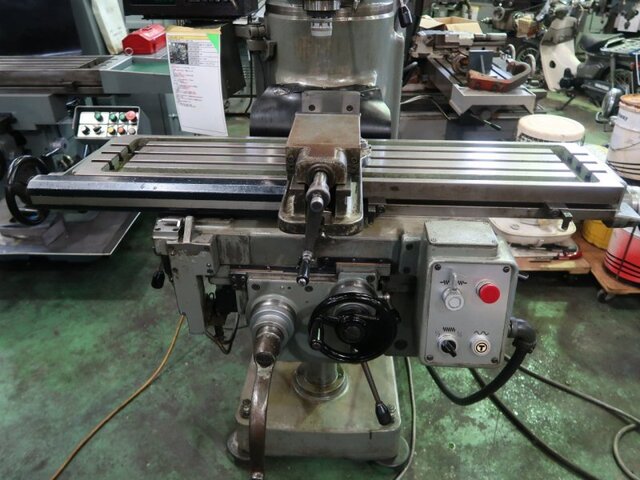

MAKINO KJP Vertical Milling Machine

Vertical Milling Machine Milling Machine - Manual Publication Date: March 05, 2025 Print (Without Logo) Print (With Logo)

Company information will be disclosed upon member registration.

Stock ID	50251
Stock Code	25548
Manufacturer	MAKINO inventory List

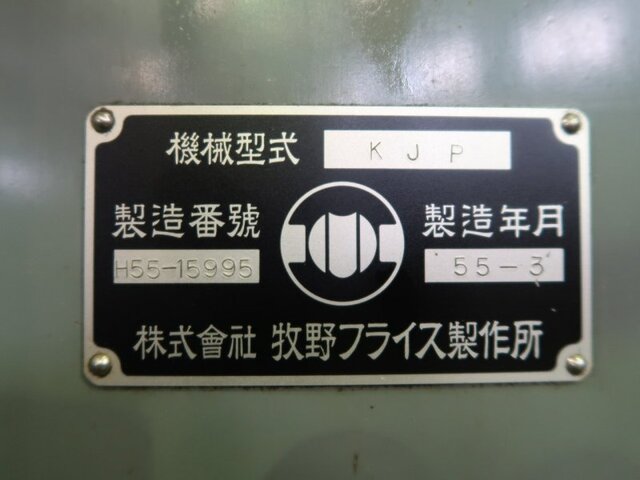

Model Type	KJP
Year	1980

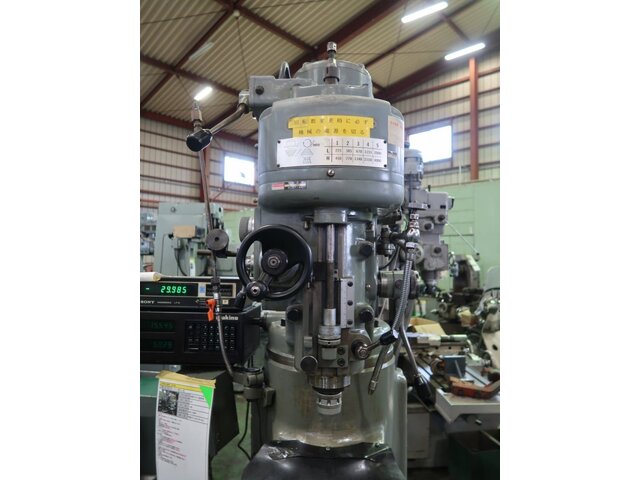

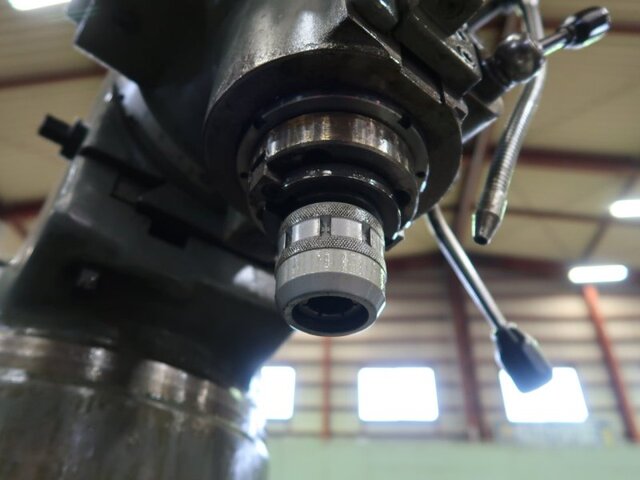

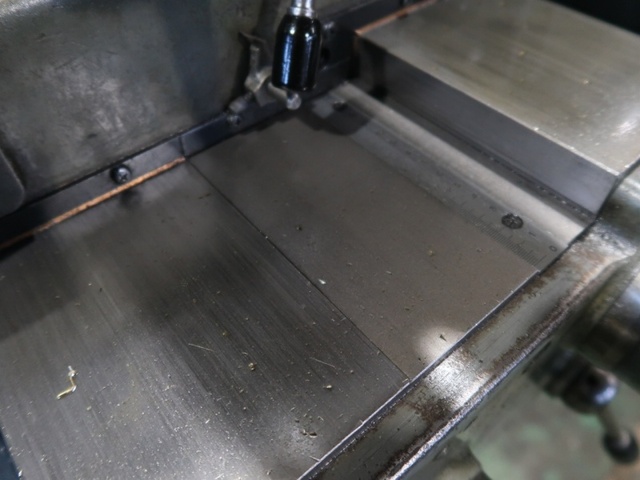

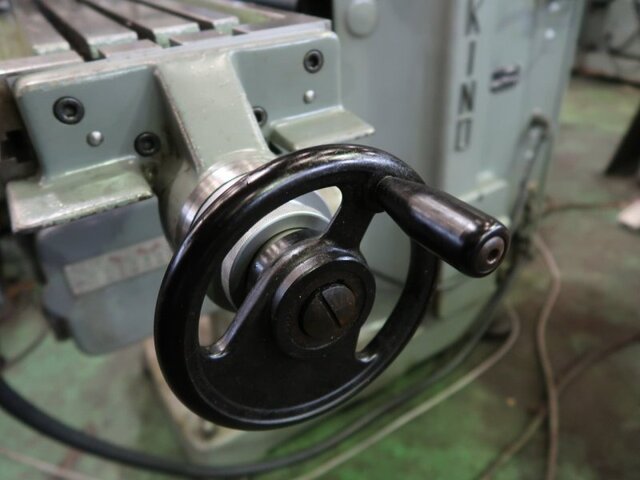

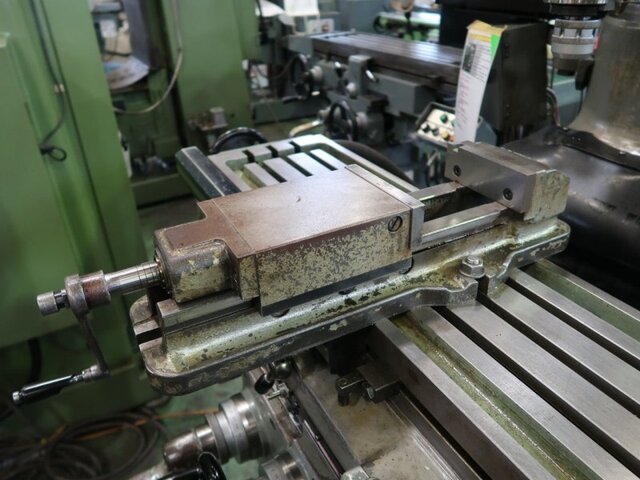

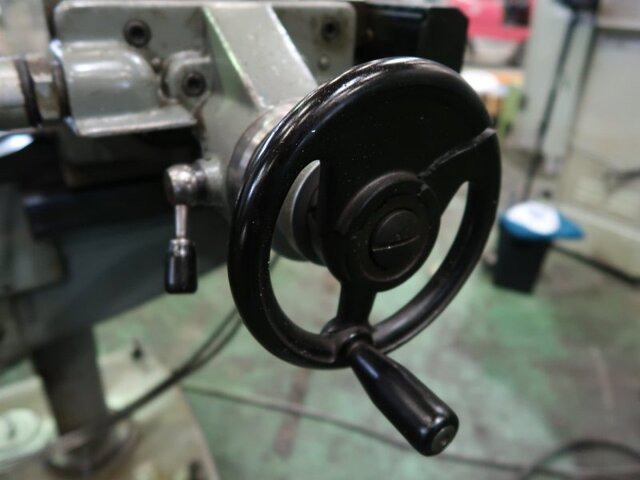

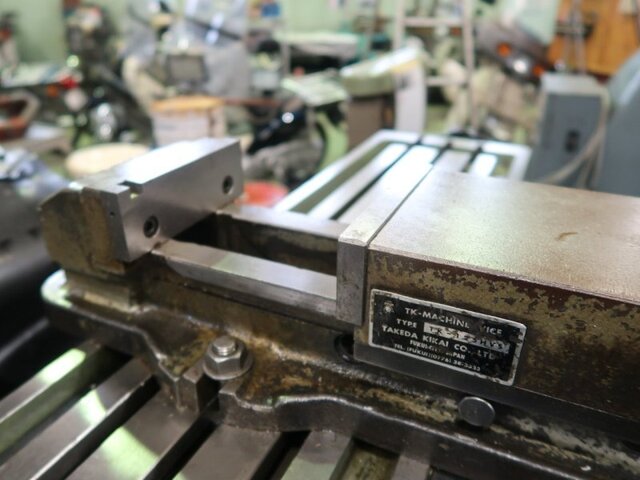

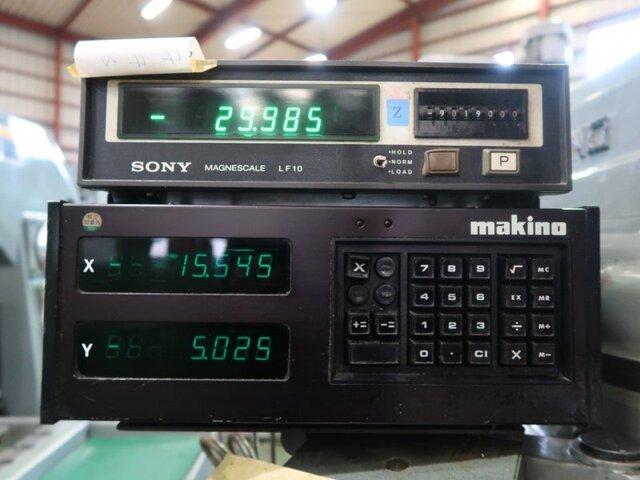

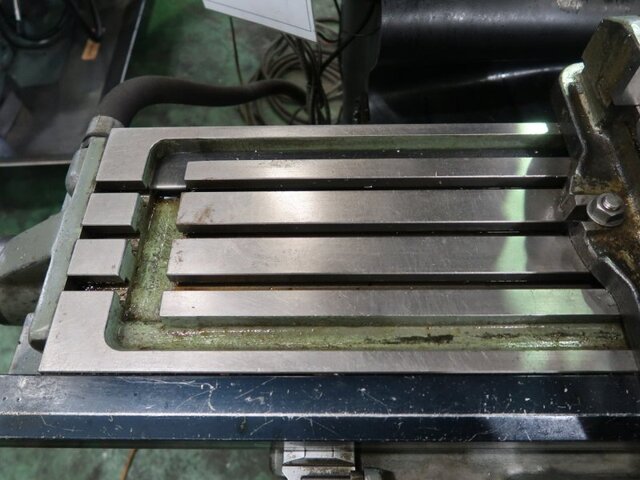

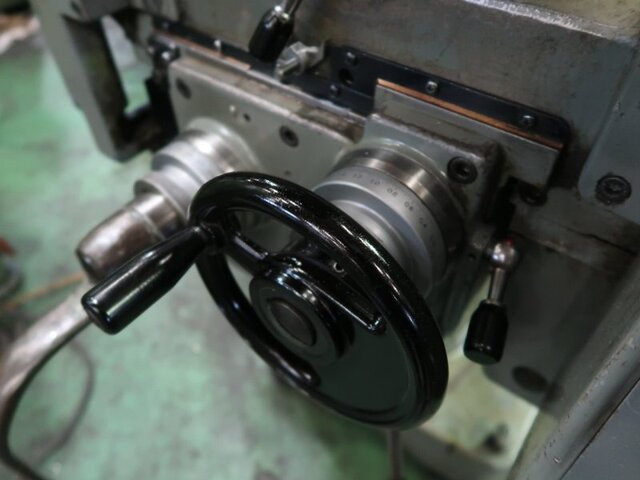

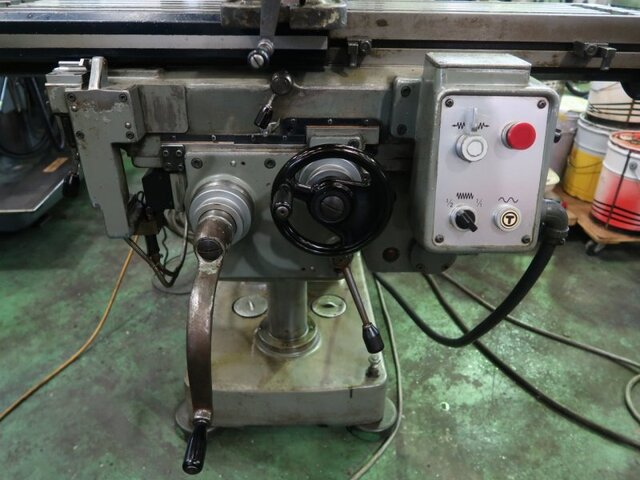

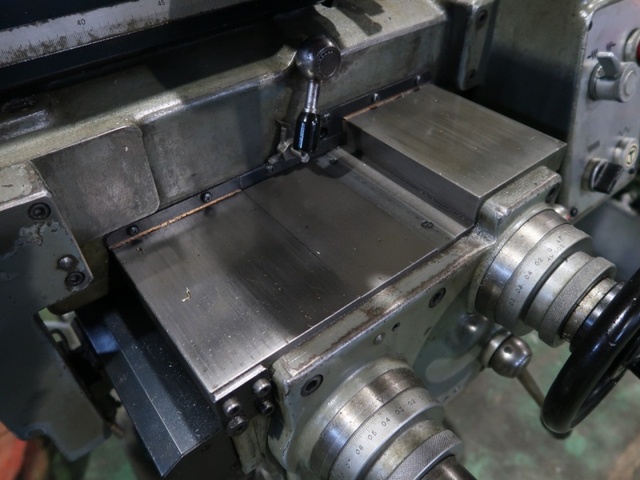

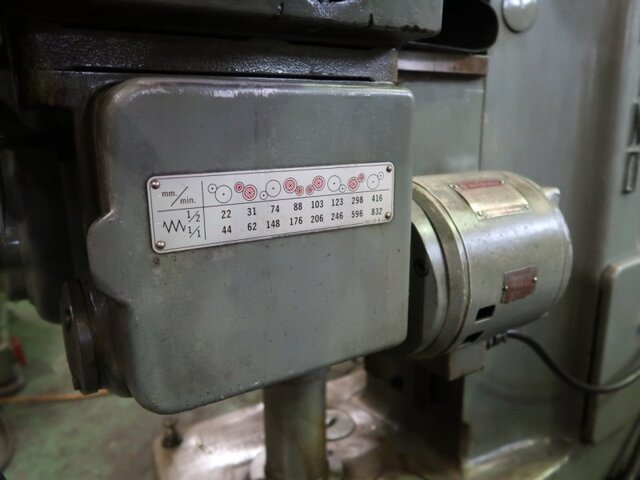

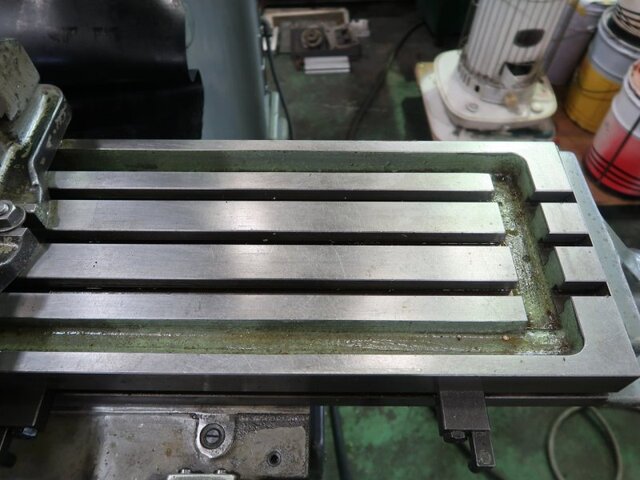

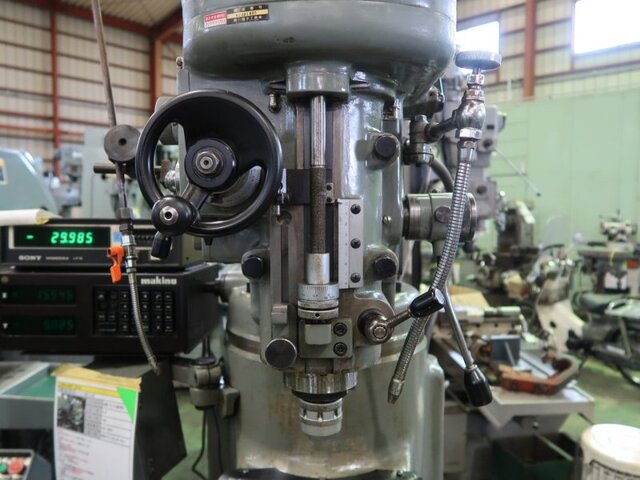

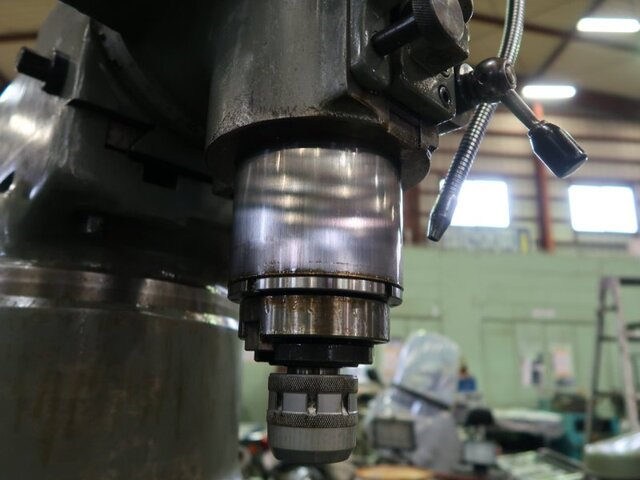

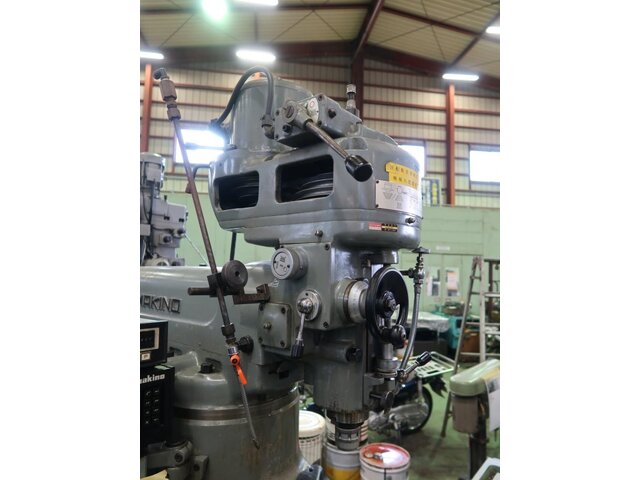

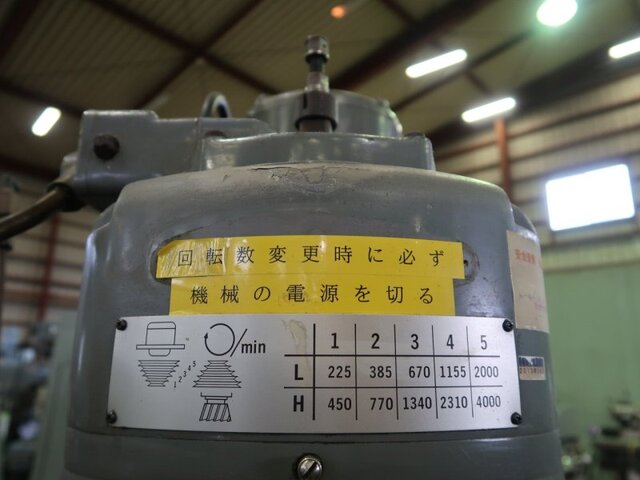

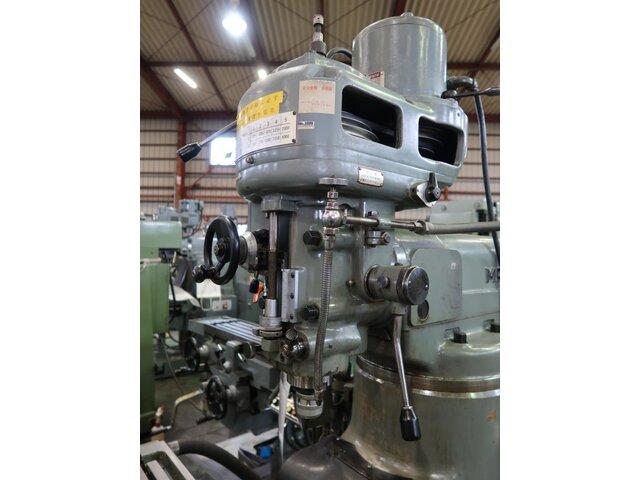

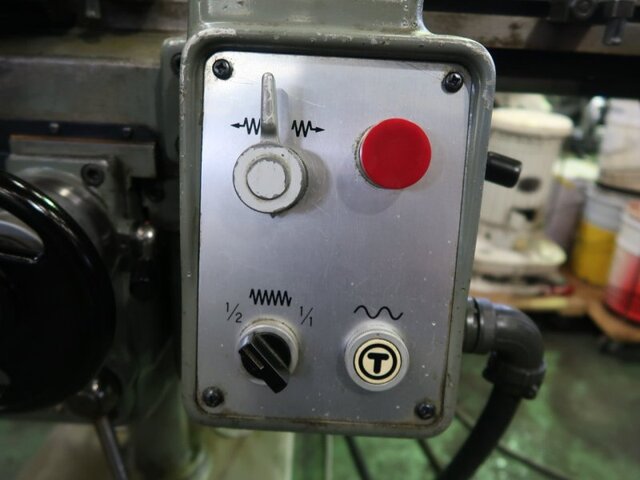

Main Specifications	○Digital 3-axis digital display○Table Working area 1100×250 mm T-slot width 14mm×3○Spindle Spindle shank No.40 Spindle speed 225～4000rpm Belt change 10 stages Spindle head rotation Left and right ±45 degrees○Axis travel Table Left and right 550 × Front and back 250 × Up and down 350 mm Spindle quill feed 80mm Overarm front and back movement 300mm Spindle end face to table top 5～455mm Spindle center to column front 125～425mm○Machine size Dimensions: Width 2190mm × Depth 1815mm × Height 2080mm Weight: 1550 kg○Accessories Jaw width 125mm Takeda hydraulic vice included○Operation method Quill automatic cutting feed/feed-out possible Table left and right Automatic cutting feed/fast forward possible
Location	Ibaraki
Viewing Status	Consultation
Test Run Status	Consultation
