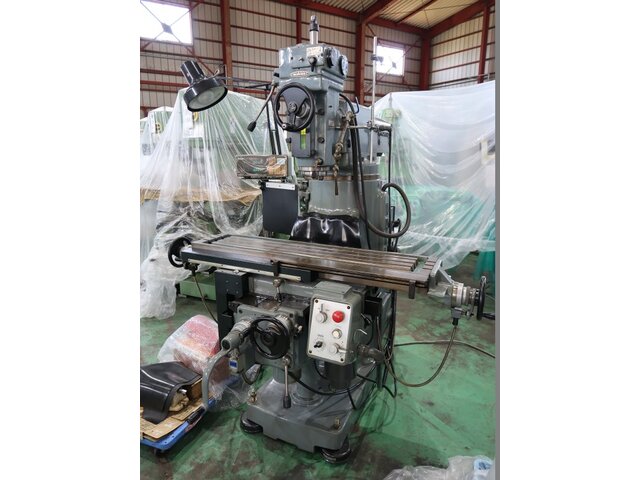

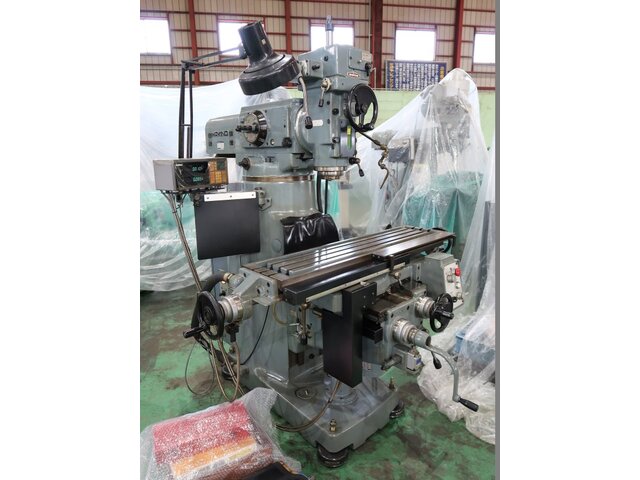

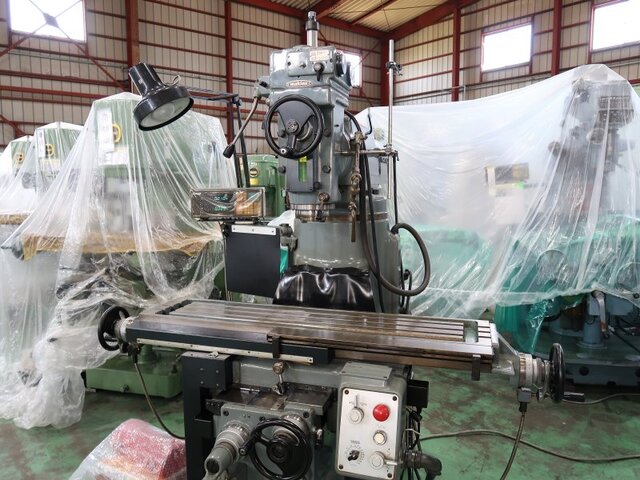

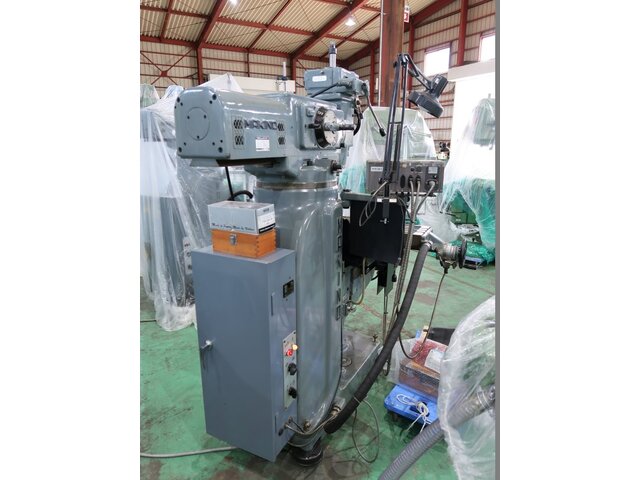

MAKINO KGJP-55 Vertical Milling Machine

Vertical Milling Machine Milling Machine - Manual Publication Date: March 05, 2025 Print (Without Logo) Print (With Logo)

Company information will be disclosed upon member registration.

Stock ID	50250
Stock Code	26632
Manufacturer	MAKINO inventory List

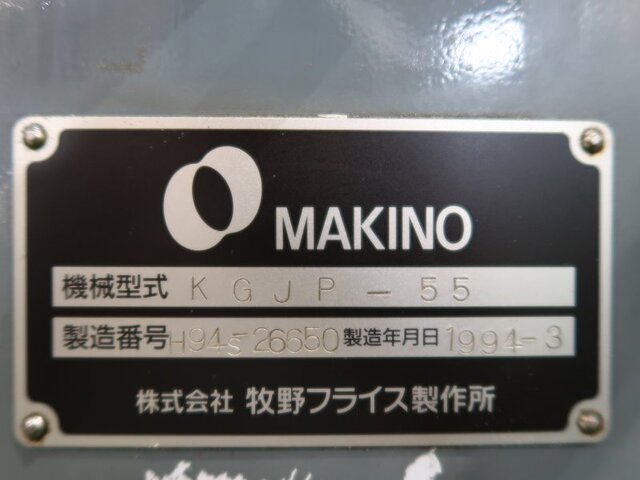

Model Type	KGJP-55
Year	1994

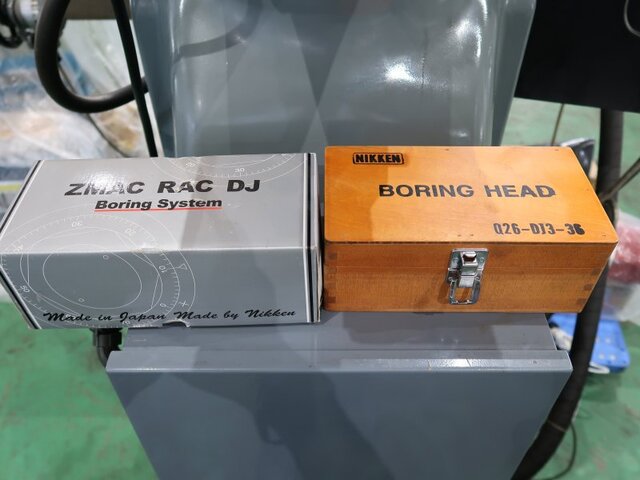

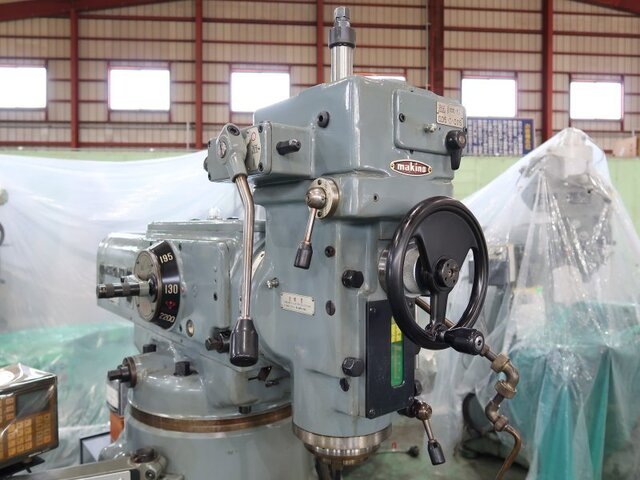

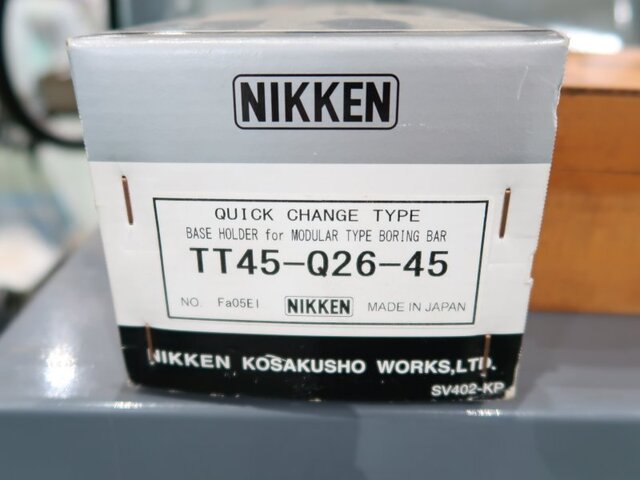

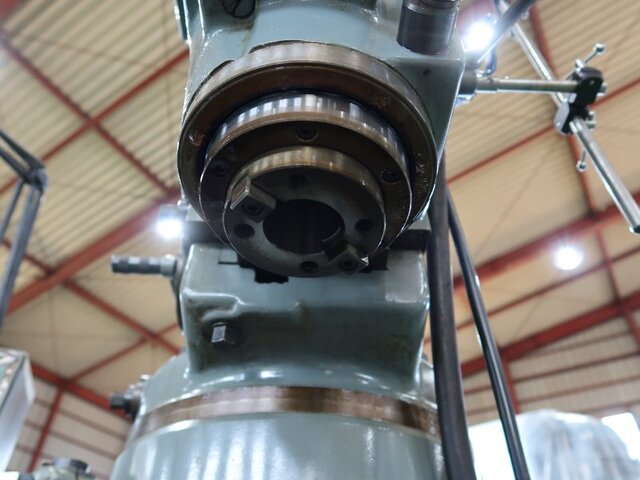

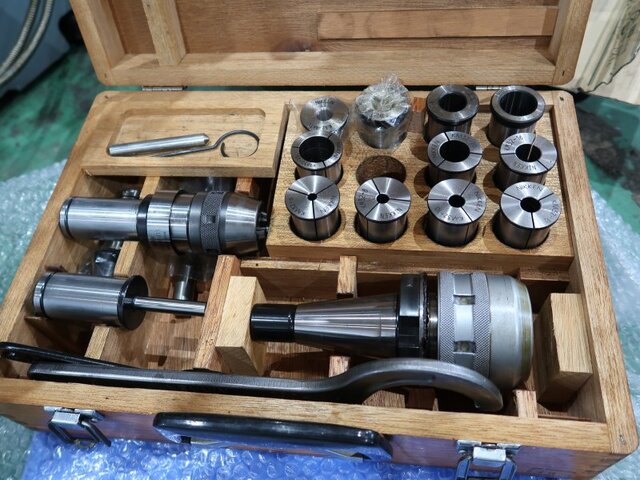

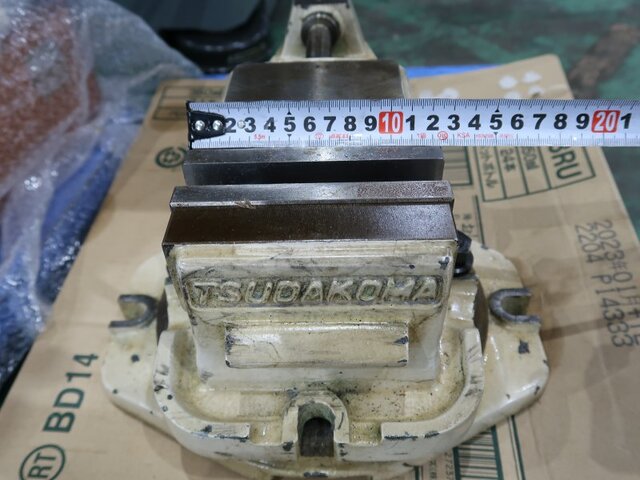

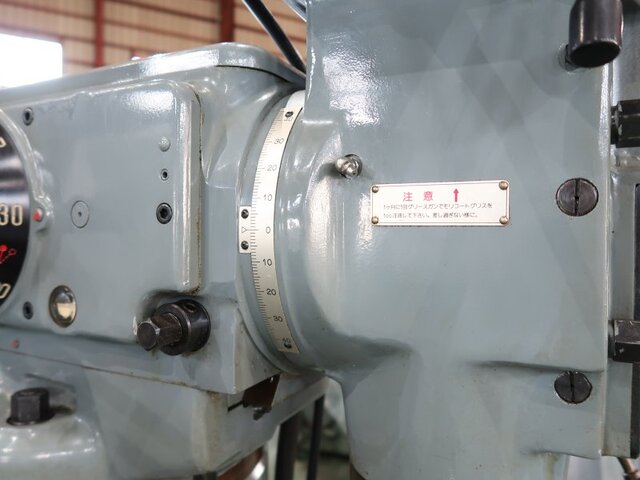

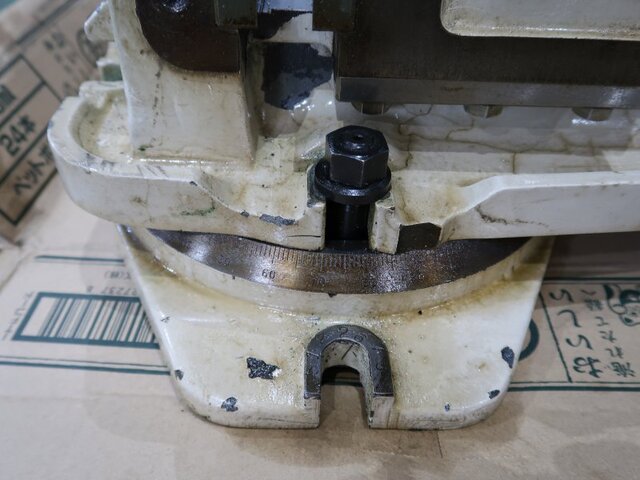

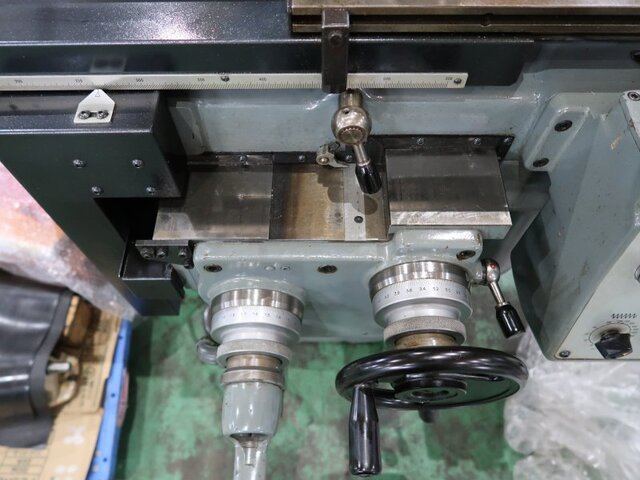

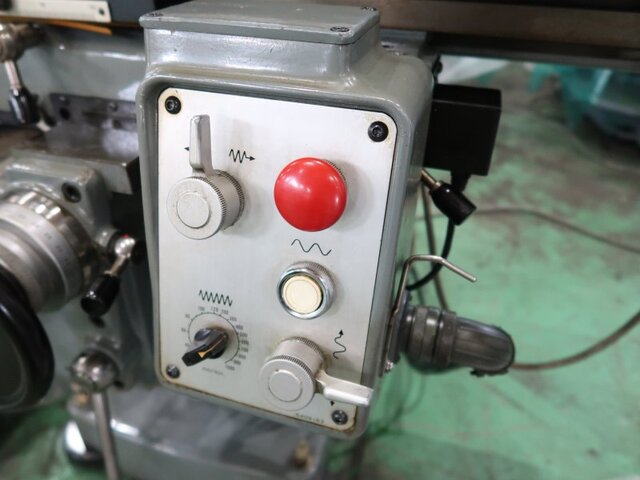

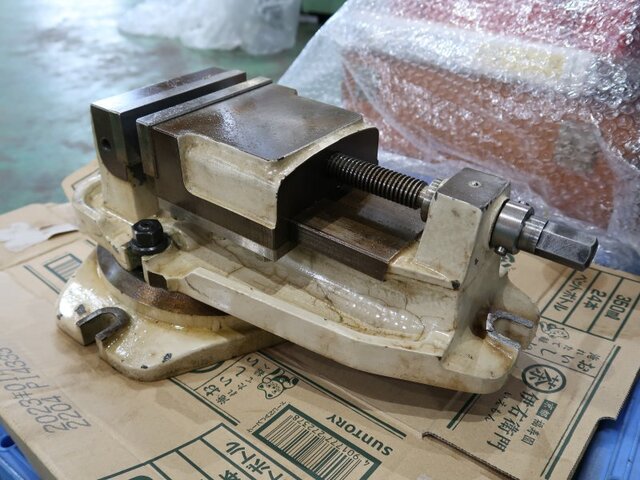

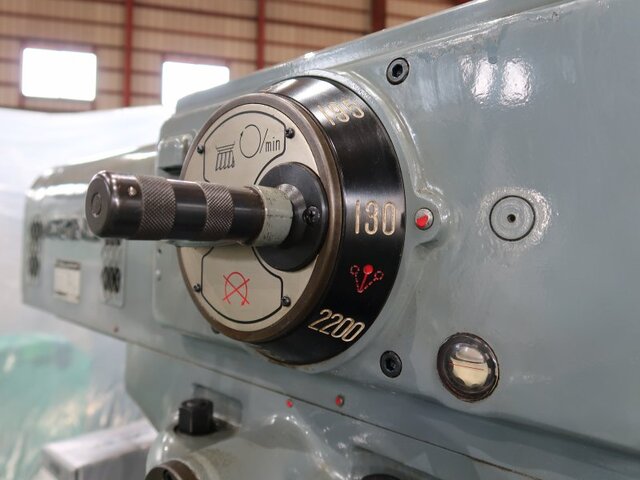

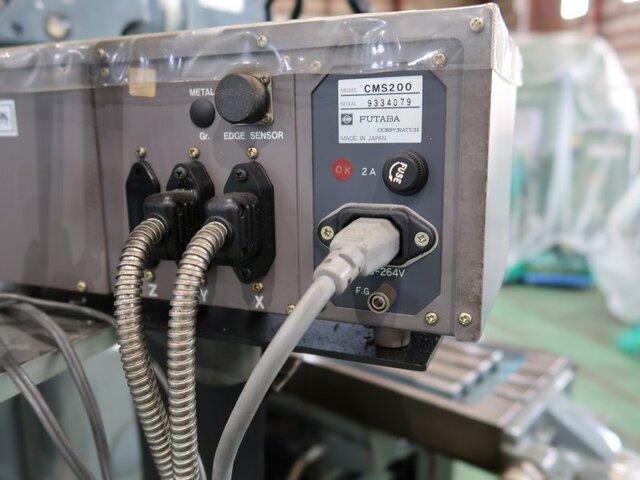

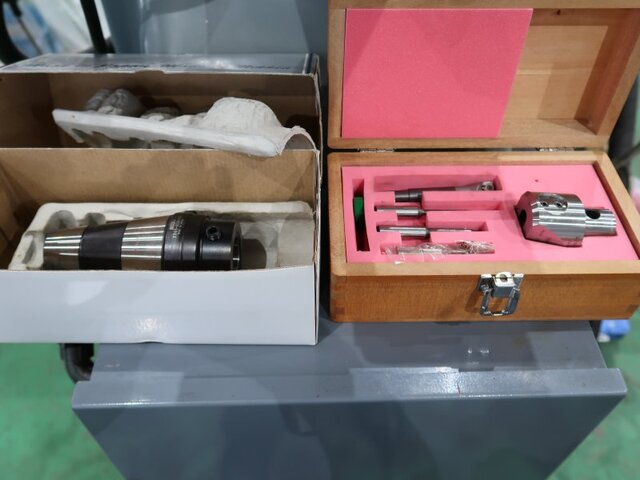

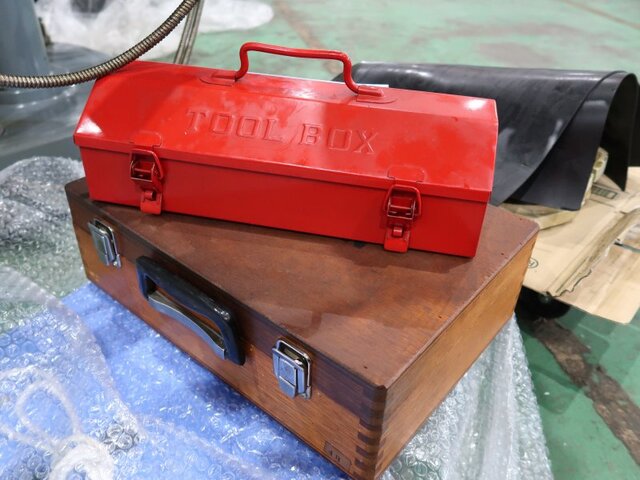

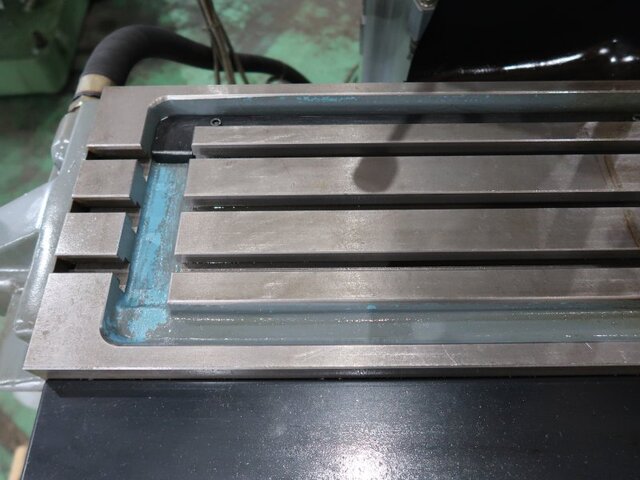

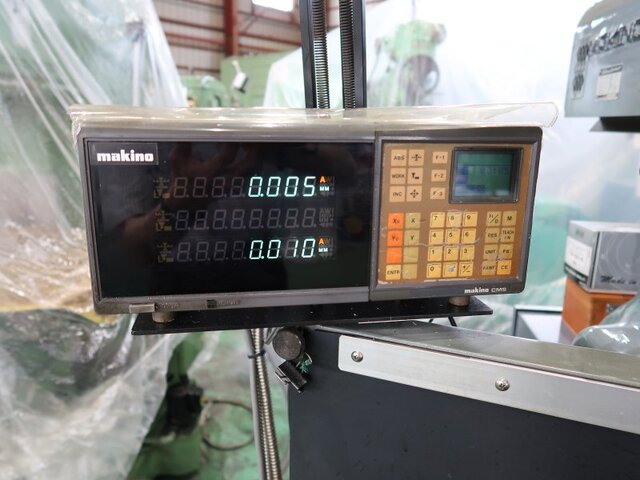

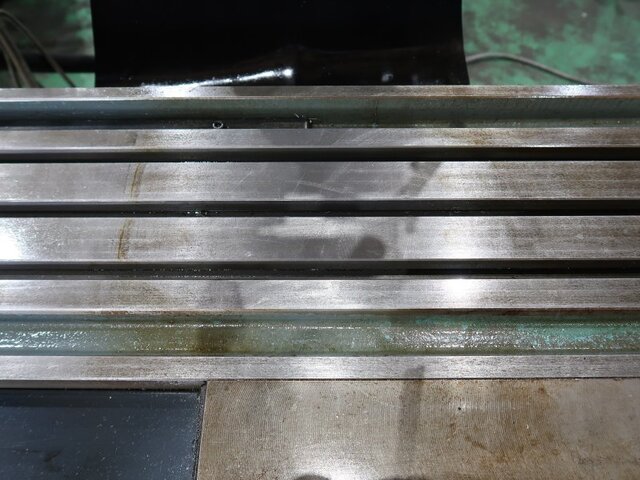

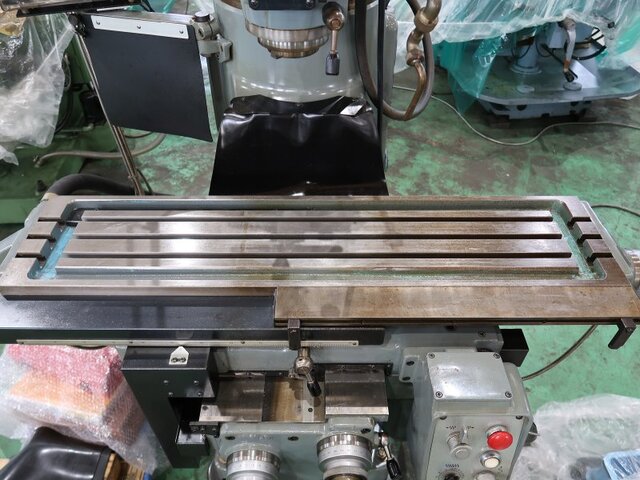

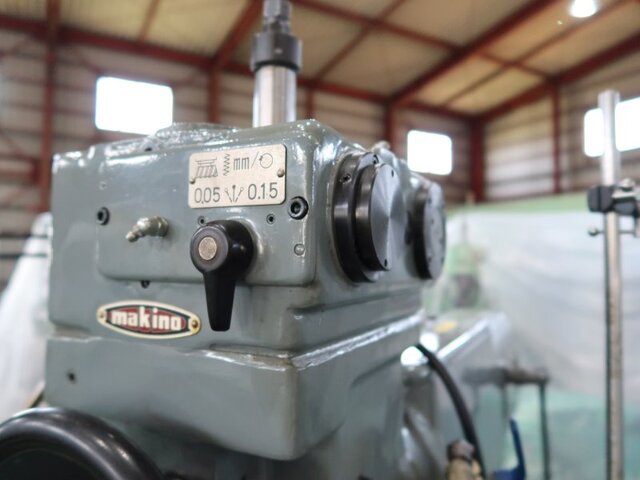

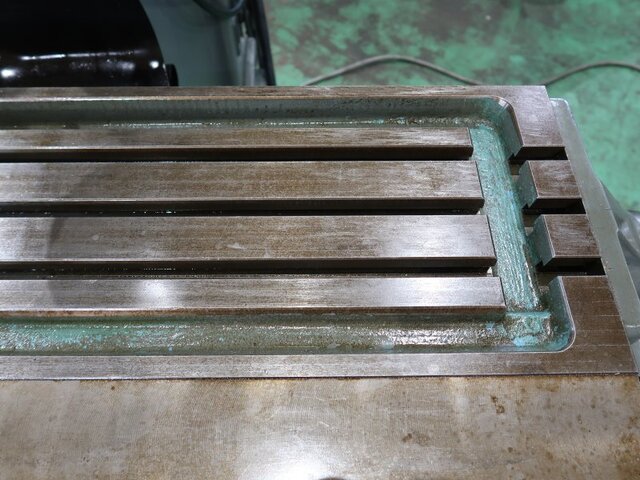

Main Specifications	Digital XY 2-axis display Table Working surface 1100mm x 250mm T-slot 14mm wide x 3 Spindle Spindle taper NT40 Spindle speed 130-2200rpm Gear 8-speed Spindle motor 1.5kw Spindle head rotation Left and right ±45 degrees Amount of movement of each axis X-axis 550mm Left and right - table Y-axis 250mm Front and back - saddle Z-axis 350mm Up and down - knee Spindle quill Diameter 120mm Feed 80mm Overram front and back movement 300mm Spindle end to table top 5-455mm Spindle center to column front 125-425mm Machine size Dimensions: Width 1640 x Depth 1835 x Height 1950 mm Installation width 2190mm Weight: 1550 Kg Accessories Jaw 125mm Machine vice 1 piece Milling chuck set, operation tool set ○ Features and operation method Quill automatic cutting feed/feed-out possible Automatic feed on the left and right of the table, with table up and down fast forward device
Location	Ibaraki
Viewing Status	Consultation
Test Run Status	Consultation
