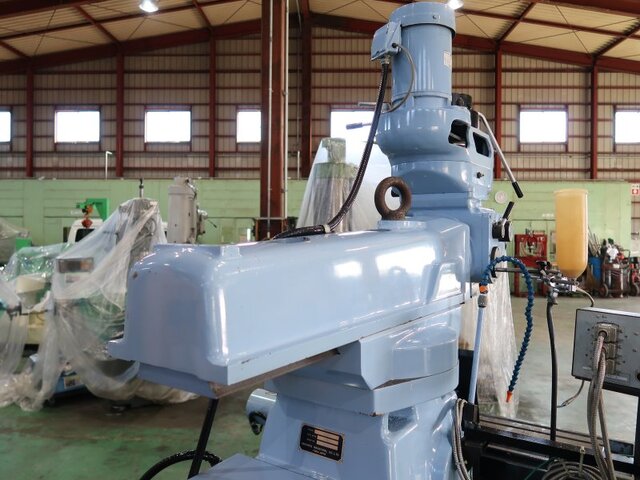

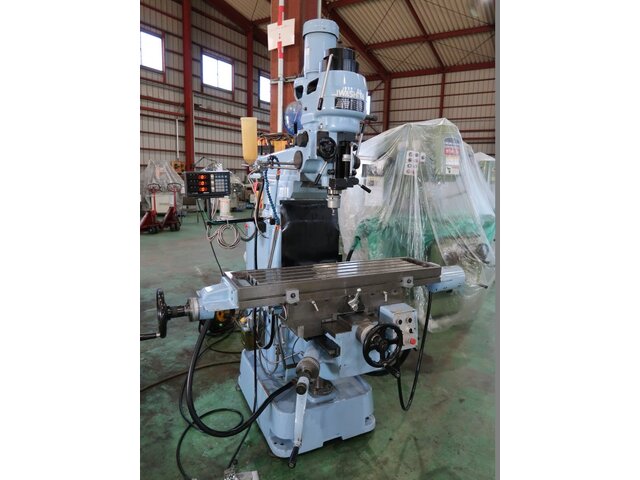

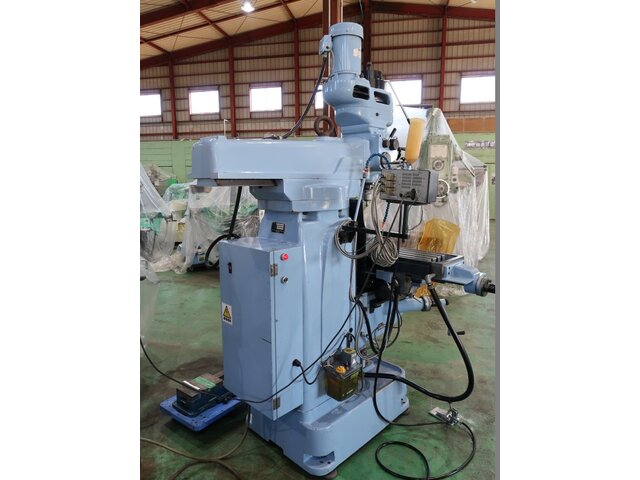

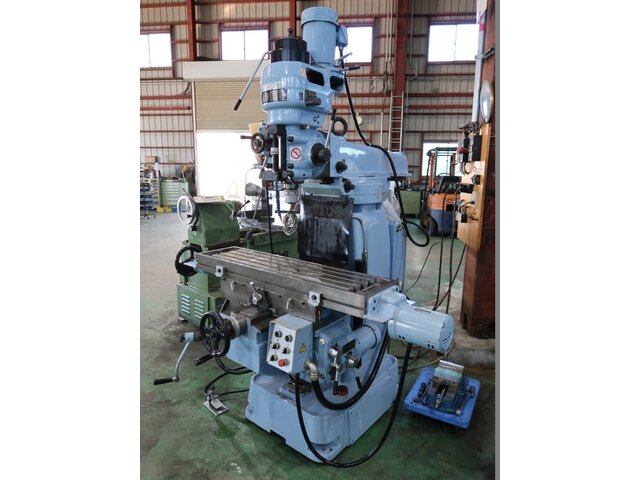

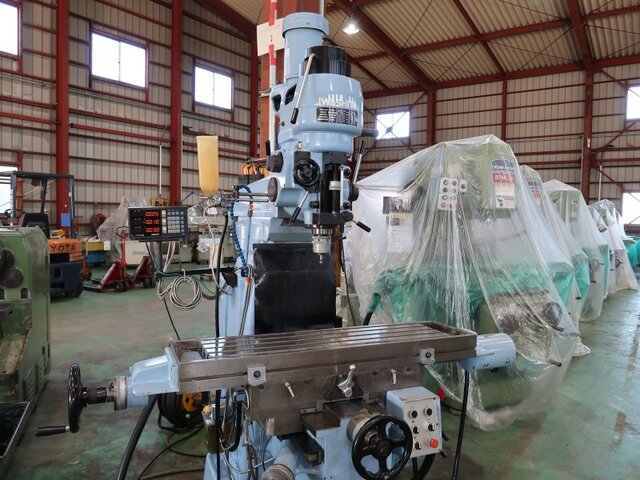

Iwashita NK-1R Vertical Milling Machine

Vertical Milling Machine Milling Machine - Manual Publication Date: March 05, 2025 Print (Without Logo) Print (With Logo)

Company information will be disclosed upon member registration.

Stock ID	50246
Stock Code	24363
Manufacturer	Iwashita inventory List

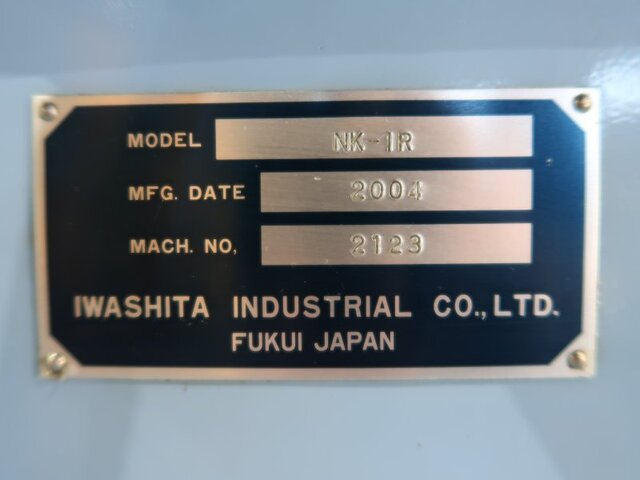

Model Type	NK-1R
Year	2004

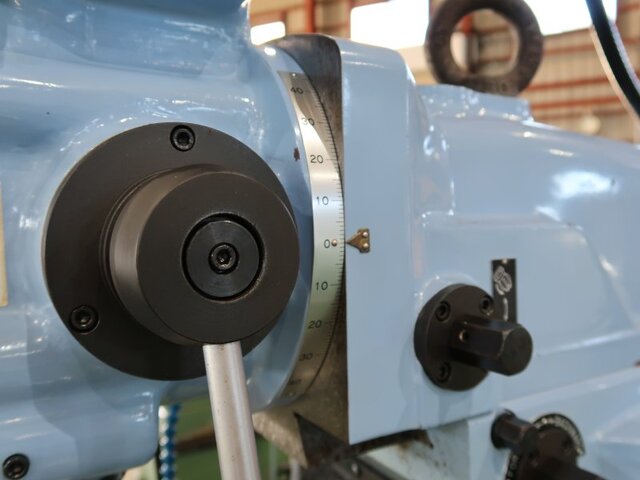

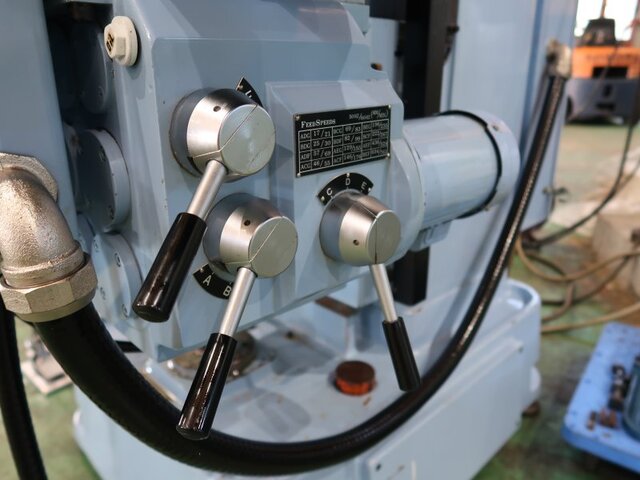

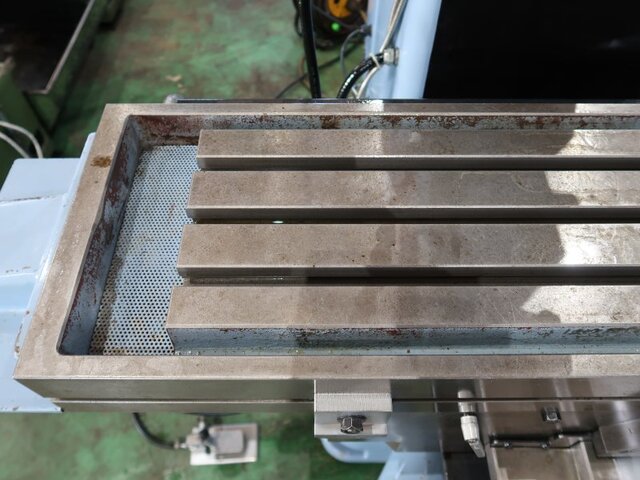

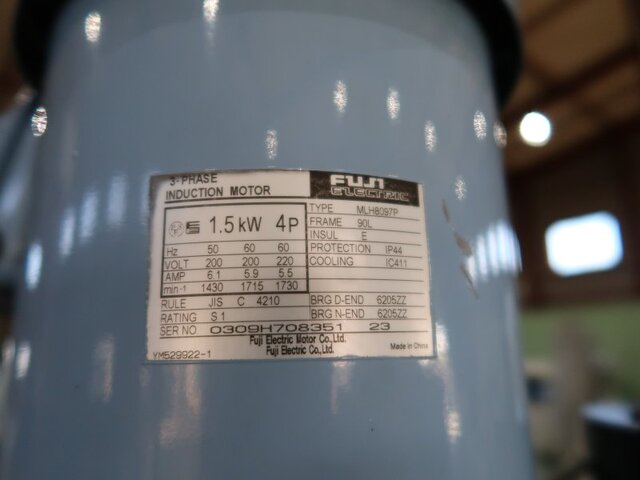

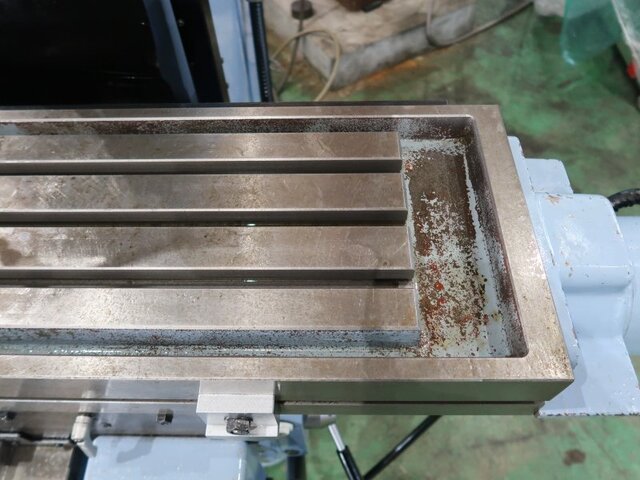

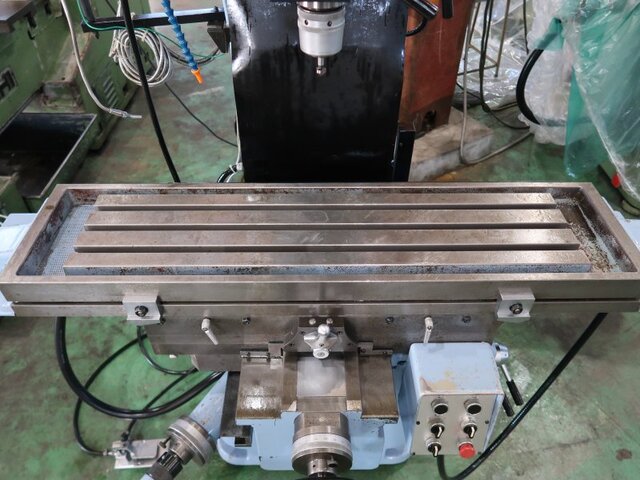

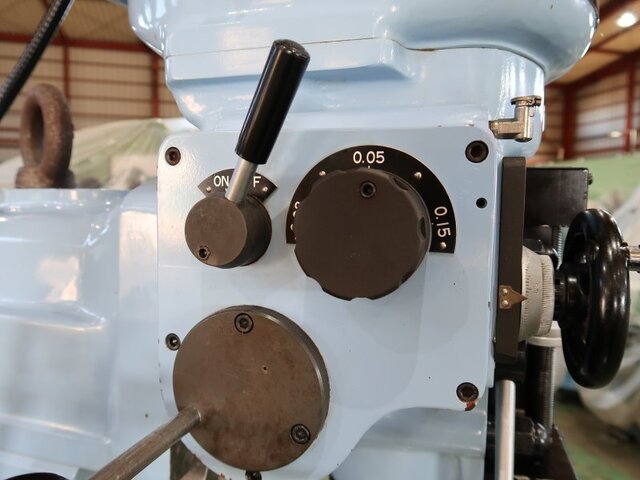

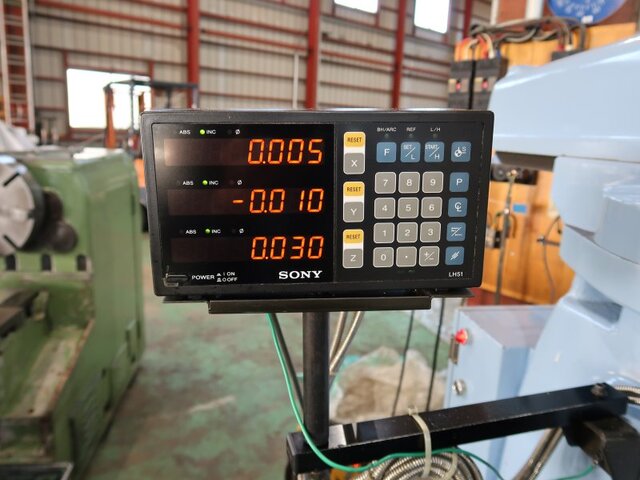

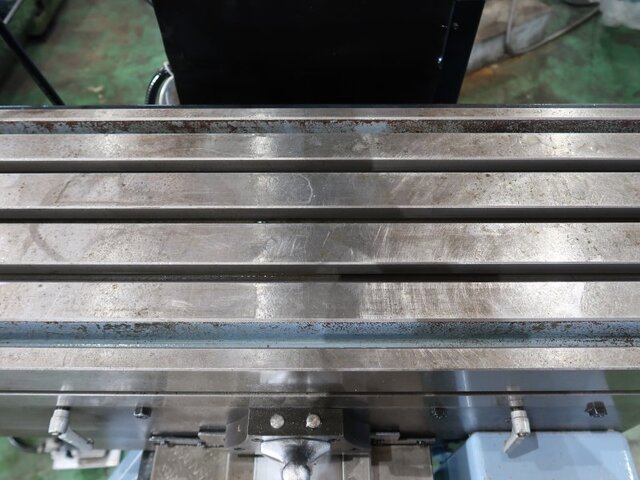

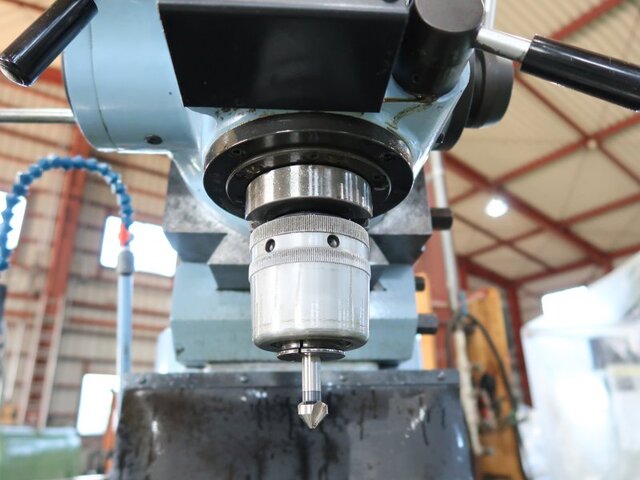

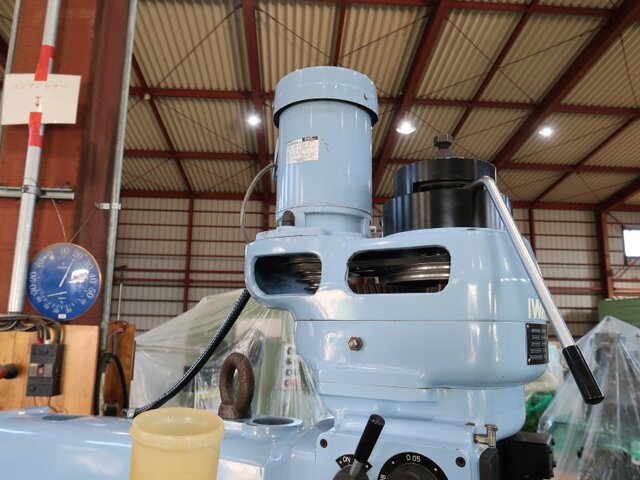

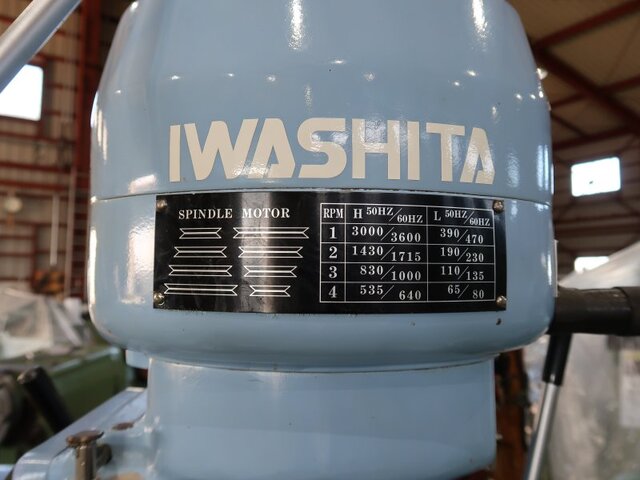

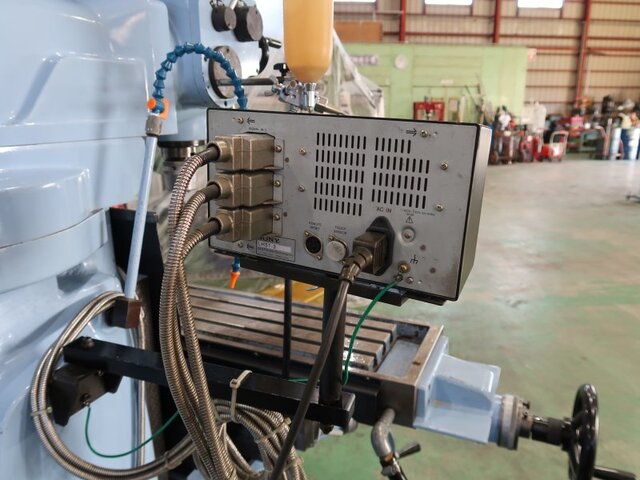

Main Specifications	○Digital 3-axis digital Minimum display 0.005mm○Table Working area 1100mm x 270mm T-slot width 16mm x 3○Spindle Spindle hole No. 40 Spindle speed 67-3000/80-3600rpm 50/60Hz Head swivel angle Left and right ±90°○Stroke Table Left and right 600mm x front and back 270mm x up and down 400mm Spindle quill up and down 100mm Distance from spindle center to front of column 170-570mm Ram front and back 400mm○Feed speed Table left and right cutting feed speed 17-634mm/min Table left and right rapid traverse speed 2900mm/min Quill automatic feed 0.05-0.08-0.15mm/rev○Motor 1.5kw4P for spindle 0.4kw for cutting feed○Machine size Dimensions: Width 1750mm x Depth 1630mm x Height 2150mm Weight: 1500Kg
Location	Ibaraki
Viewing Status	Consultation
Test Run Status	Consultation
