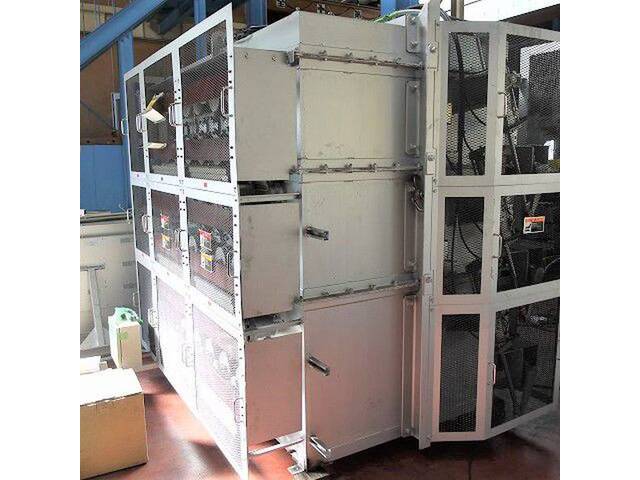

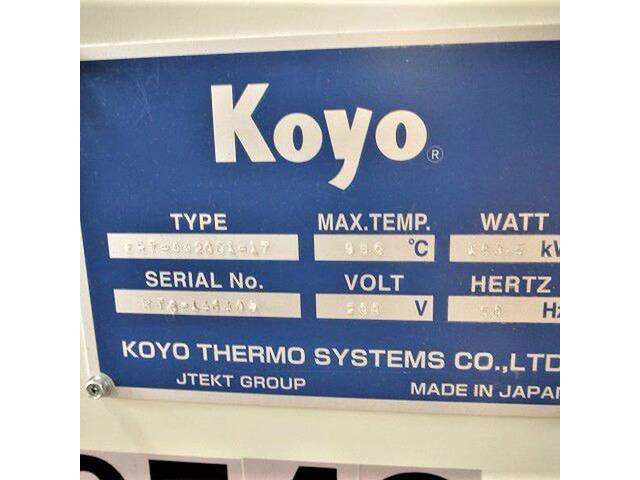

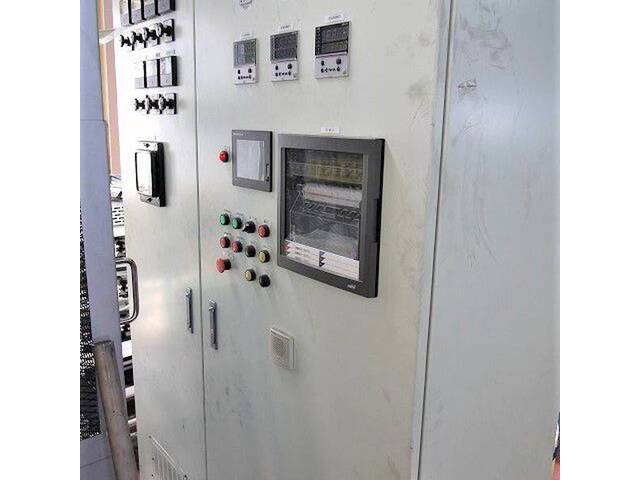

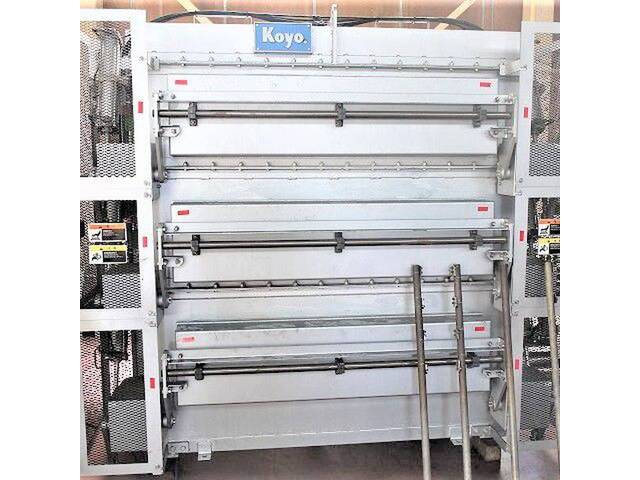

KOYO ERT-442001-17 Others

Others Other Tools Publication Date: February 13, 2025 Print (Without Logo) Print (With Logo)

Company information will be disclosed upon member registration.

Stock ID	48118
Stock Code	8099Y434
Manufacturer	KOYO
Model Type	ERT-442001-17
Year	2014
Main Specifications	[For heating thin plates] Heated object: thin plate (4kg per stage x 3 stages) Plate thickness: 1.0-2.0 450 x 1100 size ◆Heating method: electric resistance heating (radiant tube heater) [Heating capacity] Maximum temperature: 950°C *This is the temperature at which the overheat prevention meter activates. Normal temperature: 930°C Maximum insertion weight: gross 12kg/charge (1 unit, for 3 stages) ◆Cooling capacity: no cooling mechanism ◆Effective dimensions inside furnace: (effective) W1100 x D500 x H2mm _If there are any discrepancies between the specifications and the actual product, the actual product will take precedence.
Location	Mie Prefecture
Viewing Status	Consultation
Test Run Status	Consultation
