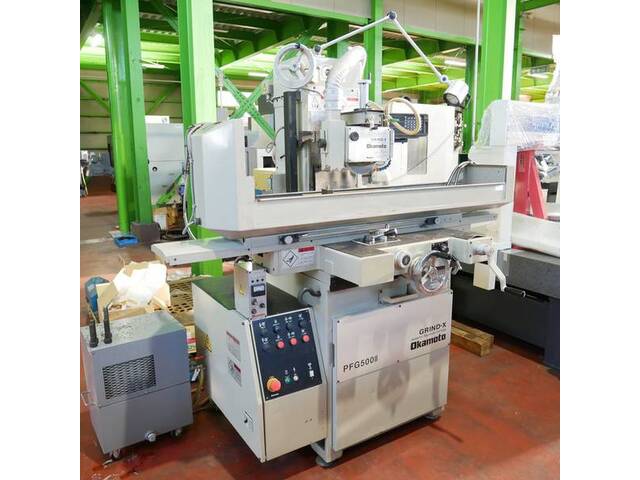

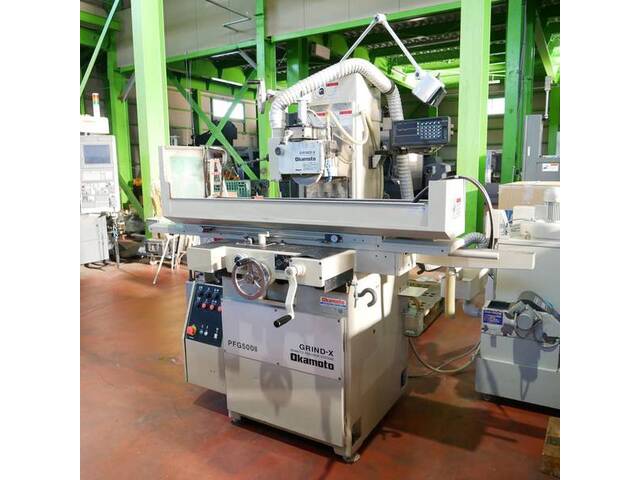

岡本工作機械 PFG500C? Surface Grinder

Surface Grinder Grinding Machine - Manual Publication Date: February 13, 2025 Print (Without Logo) Print (With Logo)

Company information will be disclosed upon member registration.

Stock ID	47908

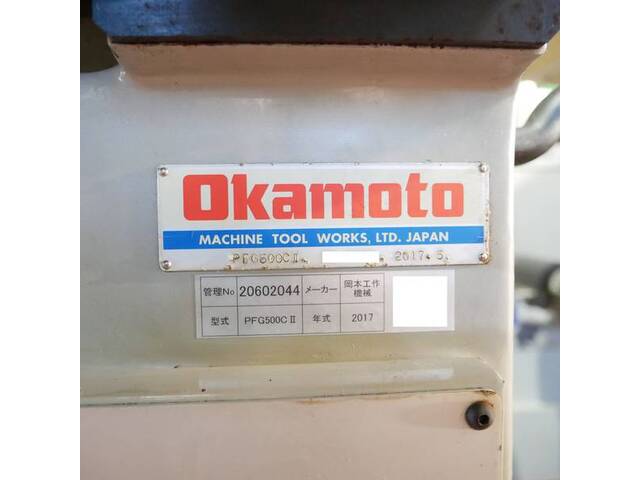

Stock Code	20602044
Manufacturer	岡本工作機械
Model Type	PFG500C?
Year	2017

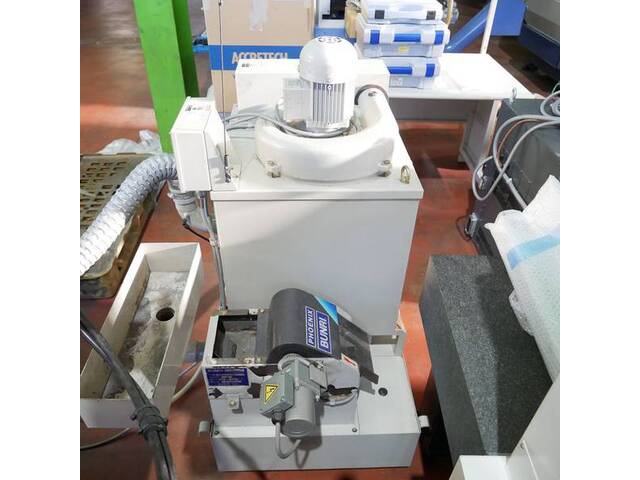

Main Specifications	◆Table working surface size: W140×D600 ◆Table travel distance: 520×180 ◆Distance from top of table to bottom of grinding wheel: 320 ◆Standard chuck (tilt type) dimensions: 380×110 ◆Workpiece allowable weight (including chuck): 80 ◆T-slot width: 12mm ◆Right-left feed speed (hydraulic): 0.1-18m/min ◆Right-left handle 1 rotation feed distance: 100 ◆Saddle Front-back manual feed Handle 1 rotation: 5mm, dial 1 scale: 0.02mm, fine feed 1 scale: 0.005mm ◆Grinding wheel head Manual infeed amount Handle 1 rotation: 1mm, dial 1 scale: 0.002mm, up-down rapid feed speed (50/60Hz): 300/360 ◆ Grinding wheel (outer diameter x width x inner diameter): Φ180 x 6-32 x Φ31.75, rotation speed (50/60Hz): 3000/3600 ◆ Motor For grinding wheel spindle: 1.5/2kW/p, for hydraulic pump: 0.75/4kW/p, for up and down fast forward 0.1/4kW/p ◆ Required power (including standard chuck, dust collection and water injection device with separator) 2.5kVA ◆ Occupied volume Width x depth x height: 2200 x 1351 x 1720 ◆ Machine weight: 1100kg _If there are any differences between the specifications and the actual product, the actual product will take precedence.
Location	Mie Prefecture
Viewing Status	Consultation
Test Run Status	Consultation
