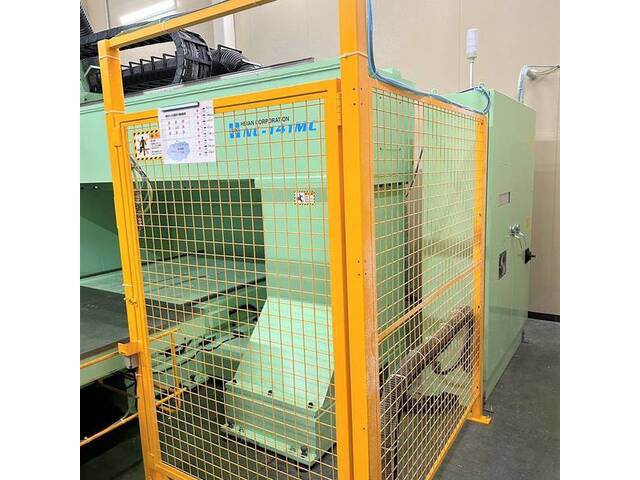

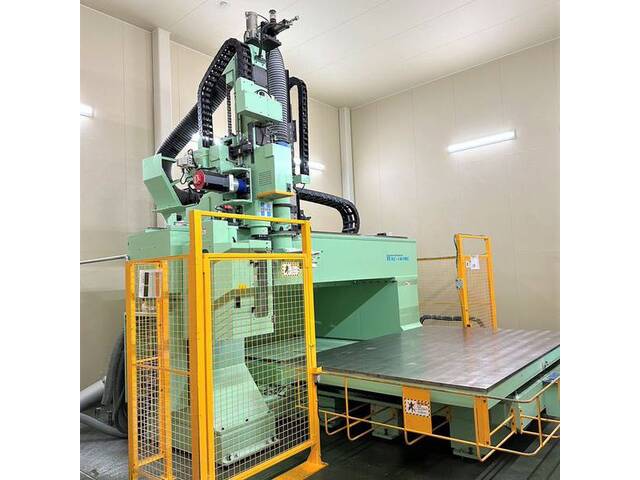

平安コーポレーション NC-141MC-3120 Double-column Machining Center

Double-column Machining Center Machining Center - NC Publication Date: February 13, 2025 Print (Without Logo) Print (With Logo)

Company information will be disclosed upon member registration.

Stock ID	47811
Stock Code	20301123
Manufacturer	平安コーポレーション
Model Type	NC-141MC-3120
Year	2014

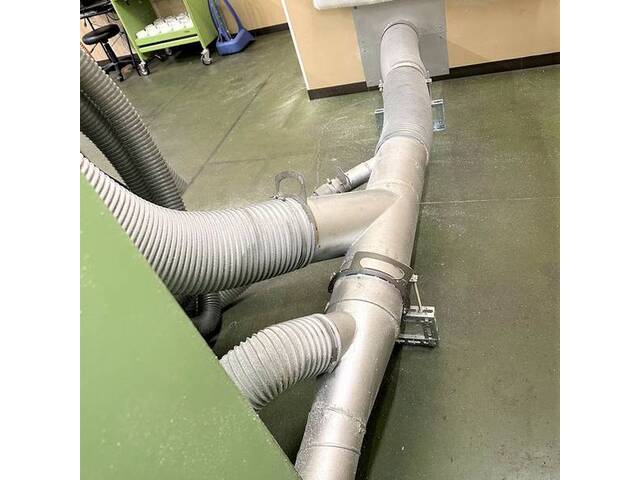

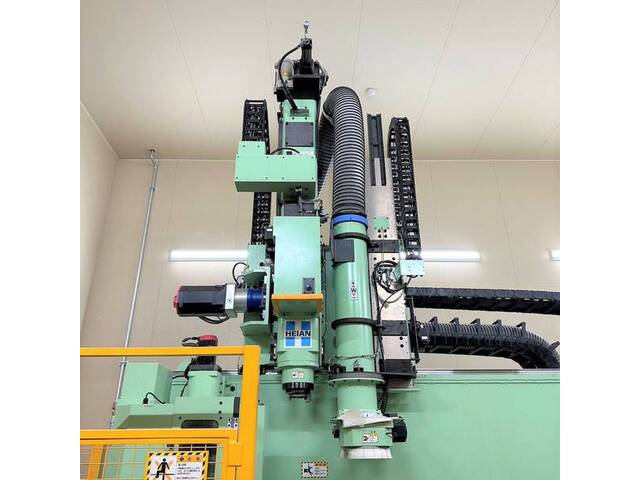

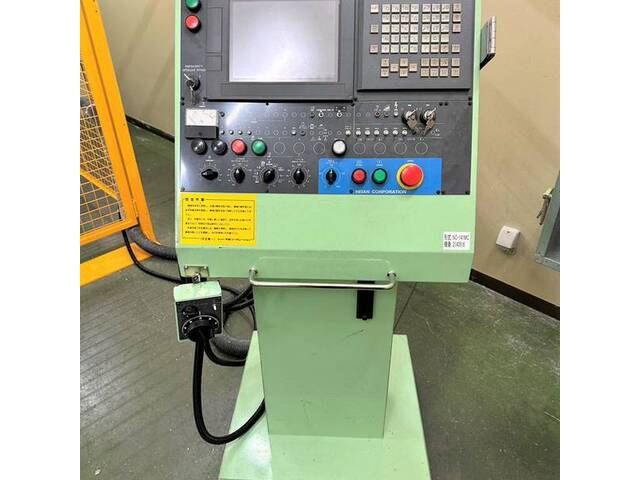

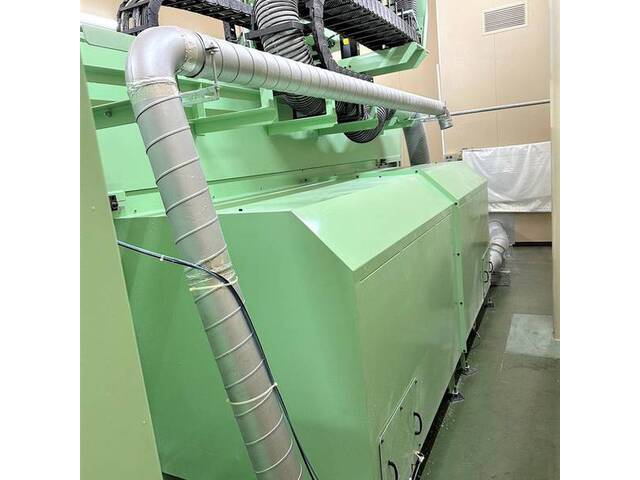

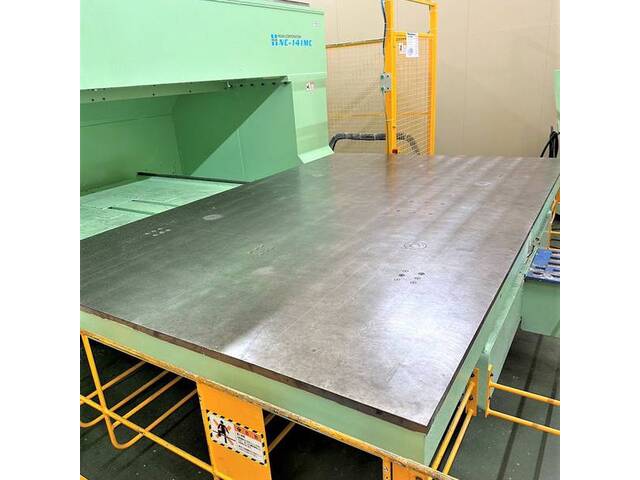

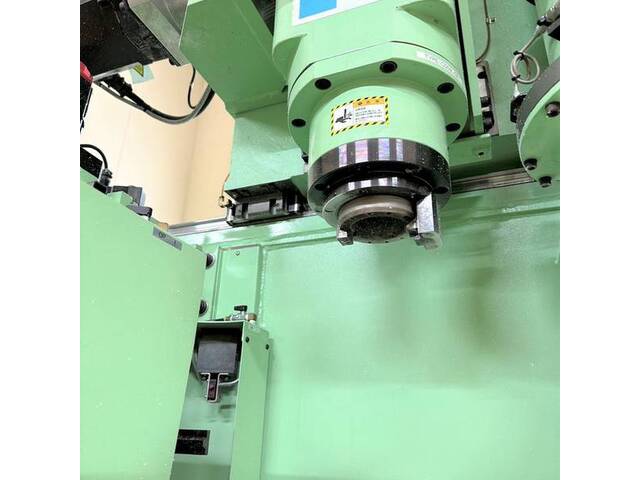

Main Specifications	◆NC unit: Hayan Fanuc 0i-MD ◆XYZW: 3100 x 2300 x 1000 x 900 ◆Z axis (table top to spindle end): 200 to 1200 mm ◆W axis (table top to brush tip): 0 to 900 mm ◆Table: 3100 x 2000 mm ◆Table top: With marking lines (500 mm pitch, 3 horizontal lines/7 front-back lines) ◆Shaft end: NT50 ◆Spindle rotation speed: 3000 to 10000 rpm ◆ATC: 8 lines ◆Pull stud: P50T (MAS2 type) ◆Power capacity: Approximately 30 kW ◆Dust collection unit (spindle section) Inlet: φ200 mm x 1 port ◆Dust collection hopper: Inlet φ125 mm x 2 ports_If there are any differences between the specifications and the actual product, the actual product will take precedence.
Location	Mie Prefecture
Viewing Status	Consultation
Test Run Status	Consultation
