Grinding Machine Publication Date: February 13, 2025 Print (Without Logo) Print (With Logo)
ShinMaywa Kiko
Company information will be disclosed upon member registration.| Stock ID | 47320 |
| Stock Code | 20602033 |
| Manufacturer | KURODA SEIKO inventory List |

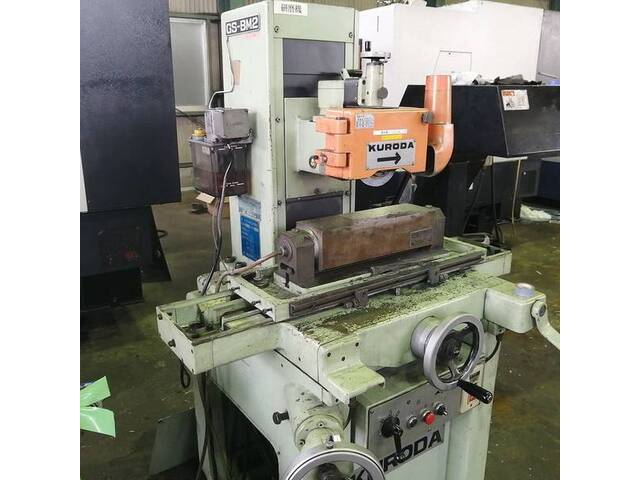

| Model Type | GS-BM2 |
| Year | 1986 |
| Main Specifications | ◆Maximum table movement (manual) (left/right x front/back): 550 x 200 ◆Table working surface: 500 x 150 ◆Distance between table surface and grinding wheel axis: 400 mm ◆Grinding wheel dimensions: Diameter 180 x Width 9.5 x Hole diameter 31.75 mm ◆Grinding wheel rotation speed (50/60 Hz) 2780/2700 rpm ◆Magnetic chuck dimensions: Length 380 x Width 110 x Height 125 mm ◆Main body dimensions: W1,560 x D1,265 x H1,620 mm ◆Weight: 830 kg _In the event of any discrepancies between the specifications and the actual product, the actual product will take precedence. |
| Location | Mie Prefecture |
| Viewing Status | Consultation |
| Test Run Status | Consultation |
